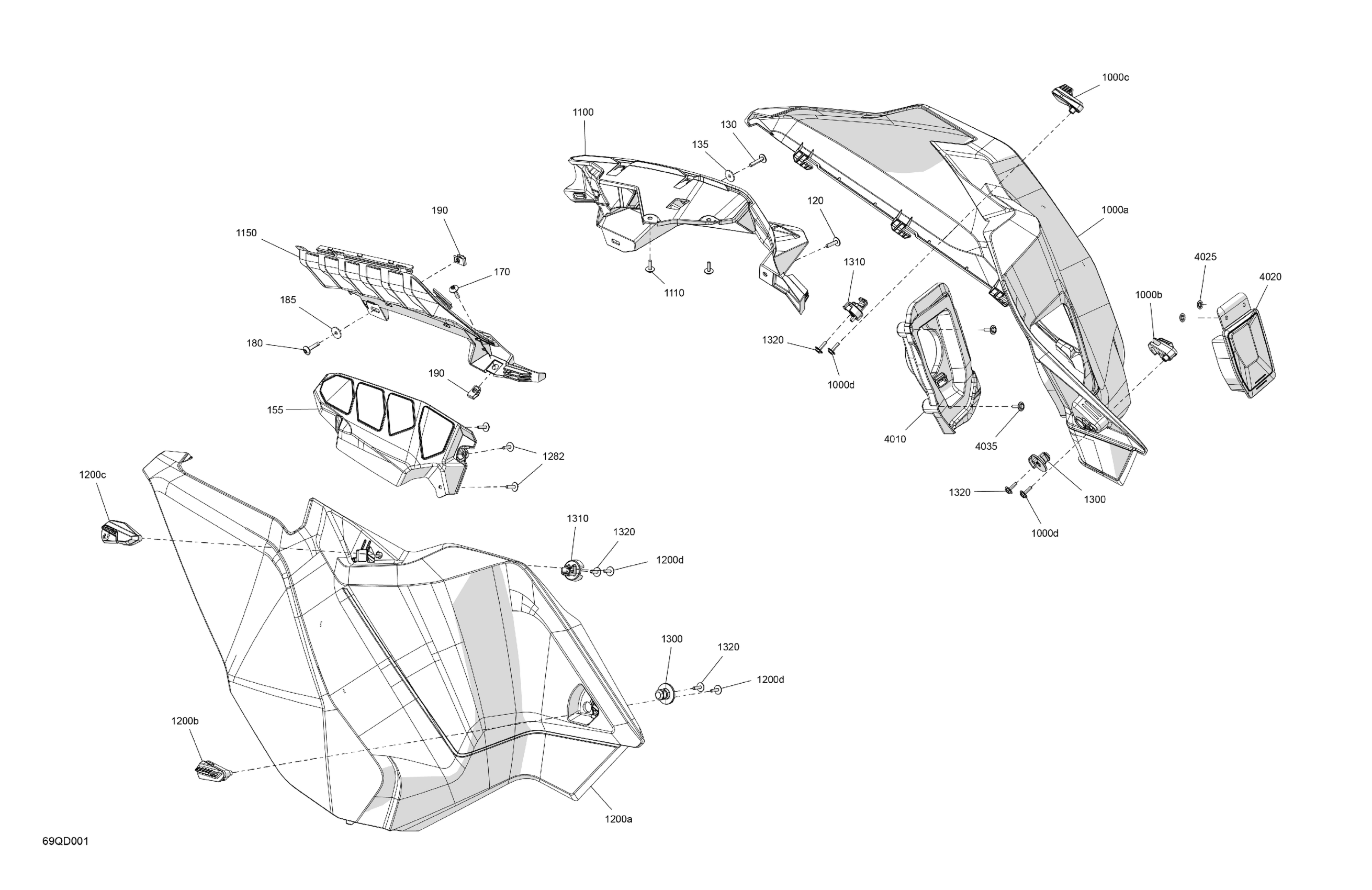

Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 Body - Lateral Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.00

130

Torx Screw M5 X 26

250000587

$4.15

135

Washer

250200166

$2.00

155

LH Hood Grille

517308687

$14.30

170

Torx Screw M5 X 20

250000528

$2.00

180

Torx Screw M5 X 26

250000587

$4.15

185

Washer

250200166

$2.00

190

Panel Nut M5 X 0.8

250000958

$4.00

1000a

Bright White, RH Body Panel

517308903

$158.18

1000b

LH Rear Latch

517305774

$13.79

1000c

LH Front Latch

517305980

$13.79

1000d

Screw M4 X 16

250000725

$3.30

1100

RH Hood Grille

517308686

$25.34

1110

Screw M4 X 16

250000725

$3.30

1150

LH Hood Trim

517308650

$28.33

1200a

Bright White, LH Body Panel

517308934

$164.90

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$3.30

1282

Screw M4 X 16

250000725

$3.30

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30

4010

Trim Support

517308746

$15.64

4020

Access Cover

517308699

$33.55

4025

Push Nut

732610072

$1.97

4035

Screw M4 X 16

250000725

$3.30
