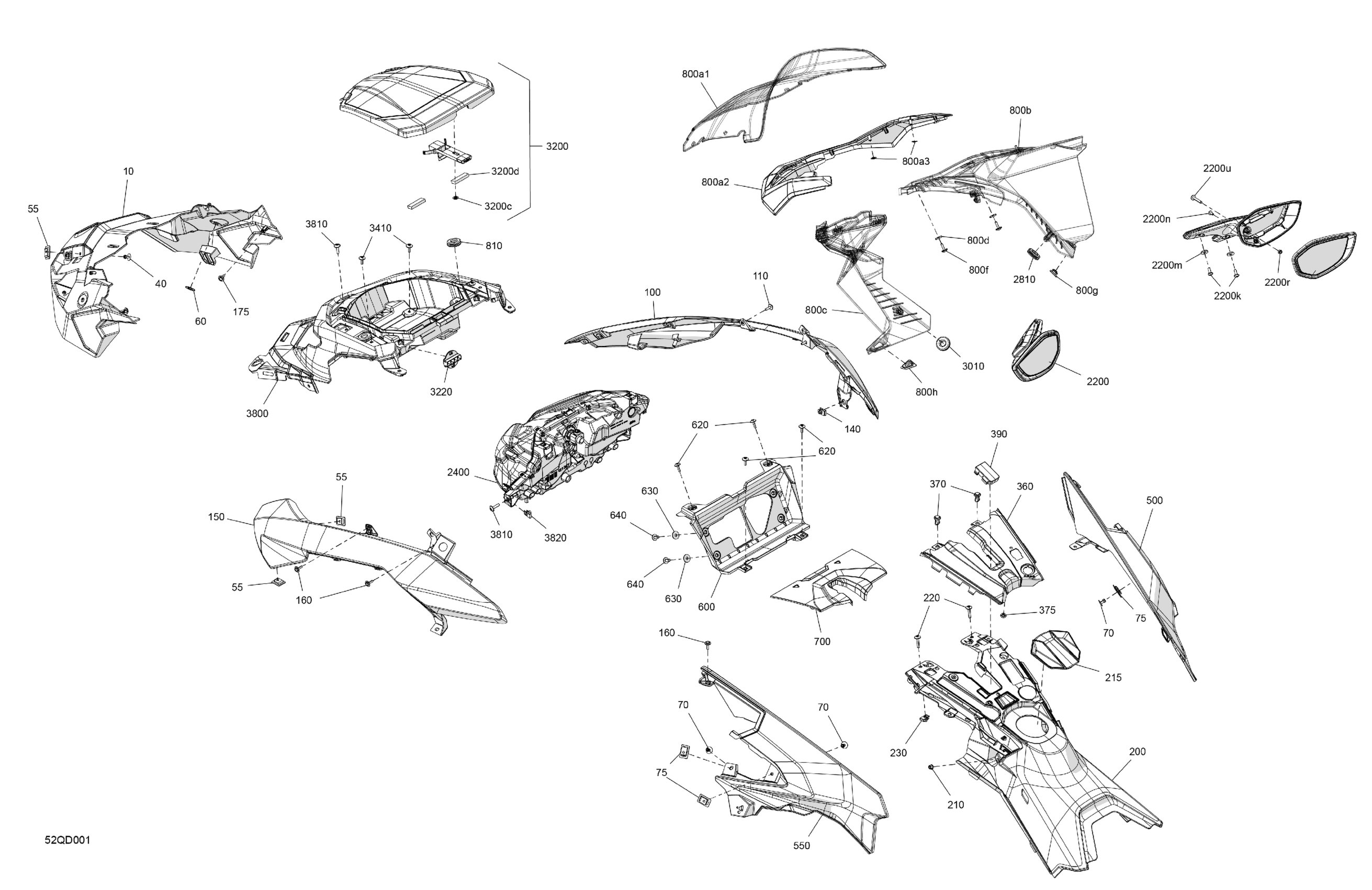

Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 Body - Hood Diagram

#

Description
Price

10

Central Hood

517308932

$192.51

40

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

55

Rivet Plate

517305109

$4.52

60

Push Nut

508000853

$1.87

70

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

75

Rivet Plate

517305109

$4.52

100

RH Front Hood

517308991

$191.76

110

Screw M4 X 16

250000725

$3.30

140

Panel Nut M5 X 0.8

250000958

$4.00

150

LH Front Hood

517308992

$191.76

160

Screw M4 X 16

250000725

$3.30

175

Screw M4 X 16

250000725

$3.30

200

Rear Console

517308760

$162.66

210

Flange Elastic Nut M5

233251434

$1.91

215

Plug

517308696

$26.09

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

360

Front Console

517307912

$29.07

370

Tuflok Plastic Rivet

293150230

$1.39

375

Push Nut

732610072

$1.97

390

Connecting Plate

517308759

$5.31

500

RH Hood

517308227

$186.54

550

LH Hood

517308228

$186.54

600

Gauge Support

517307751

$35.79

620

Screw M4 X 16

250000889

$2.82

630

Stainless Steel Flat Washer

234062670

$2.00

640

Torx Truss Screw M6 X 12

250000767

$1.91

700

Access Cover

517308111

$35.04

800a1

Windshield 440 MM

517307976

$158.93

800a2

Windshield Support

517307974

$38.78

800a3

Push Nut

732610072

$1.97

800b

RH Wide Air Deflector

517308791

$32.81

800c

LH Wide Air Deflector

517308792

$32.81

800d

Rubber Washer 4 MM

517306524

$2.18

800f

Screw M4 X 16

250000889

$2.82

800g

RH Stopper

517308989

$7.36

800h

LH Stopper

517308990

$7.36

810

Grommet

517303756

$3.61

2200

Rear-View Mirror Kit | Includes 2200 to 2200u

517309198

$110.42

2200k

Torx Screw M5 X 14

250000742

$1.37

2200m

Rubber Washer 5 mm

250200024

$2.03

2200n

Torx Truss PT K40 x 12

250001131

$2.00

2200r

Elastic Stop Nut M5

232551414

$0.82

2200u

Torx Screw Nylon

250000732

$2.00

2400

Headlight Ass'y

517309060

$511.16

2810

Grommet

517303756

$3.61

3010

Grommet

517303756

$3.61

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$31.99

3200c

Push Nut

732610072

$1.97

3200d

Joint Seal

517308246

$2.21

3220

Box Cap

517308260

$10.97

3410

Screw M4 X 16

250000889

$2.82

3800

Upper Fairing

517308231

$58.18

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00
