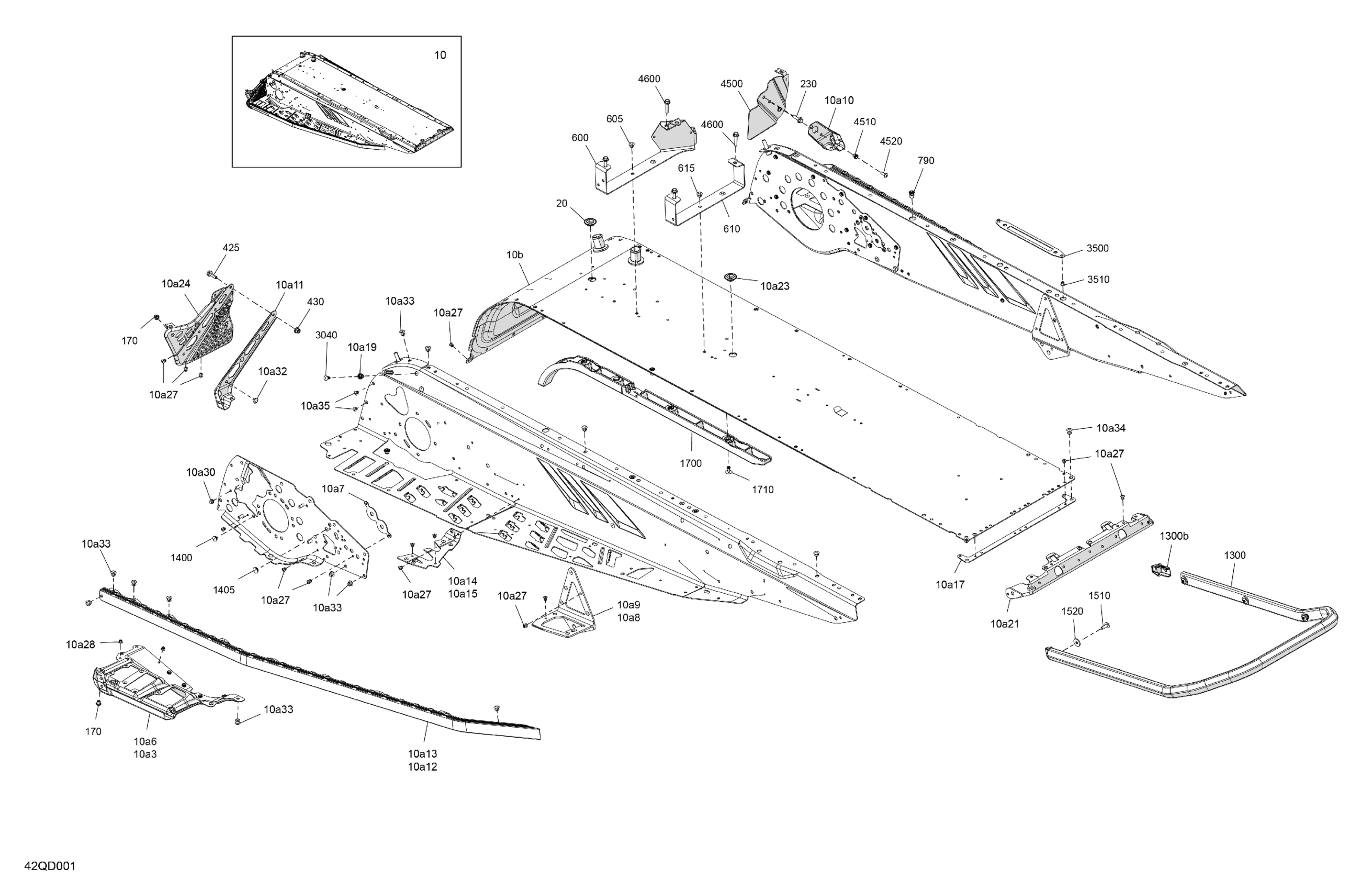

Ski-Doo North America - Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 06- Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 129

415130831

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518327233

$4.69

10a8

RH Rear Suspension Support

518334915

$95.99

10a9

LH Rear Suspension Support

518334914

$95.99

10a10

RH Stirrup Reinforcement

518334711

$20.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

RH Roller

518328451

$194.99

10a13

LH Roller

518328452

$194.99

10a14

LH Footrest Reinforcement

518332296

$21.99

10a15

RH Footrest Reinforcement

518332297

$21.99

10a17

Spacer

518331532

$2.19

10a19

Threaded Insert M6 X 1.0

250100242

Unavailable

10a21

Rear Cap

518328990

$22.49

10a23

Black, Plug

293730052

$9.19

10a24

LH Footrest

518333858

$40.99

10a27

Rivet Avibulb 3/16

293150203

$2.09

10a28

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a30

Henrob Rivet

293150245

$1.69

10a32

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a33

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a34

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a35

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10b

Radiator Tunnel 129 Ass'y

518335615

$739.99

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

600

Front Battery Charger Support

518334262

$70.99

605

Rivet Ornit 6,5 X 10.5

293150264

$2.40

610

Rear Battery Charger Support

518334779

$27.99

615

Rivet Ornit 6,5 X 10.5

293150264

$2.40

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$111.99

1300b

Cap

520001612

$10.99

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3500

Seat Anchorage

518334925

$46.99

3510

Rivet Avibulb 3/16

293150203

$2.09

4500

Bright White, RH Footrest

518334714

$81.99

4510

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4520

Torx Head Screw M6 X 16

250000717

$2.11

4600

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44
