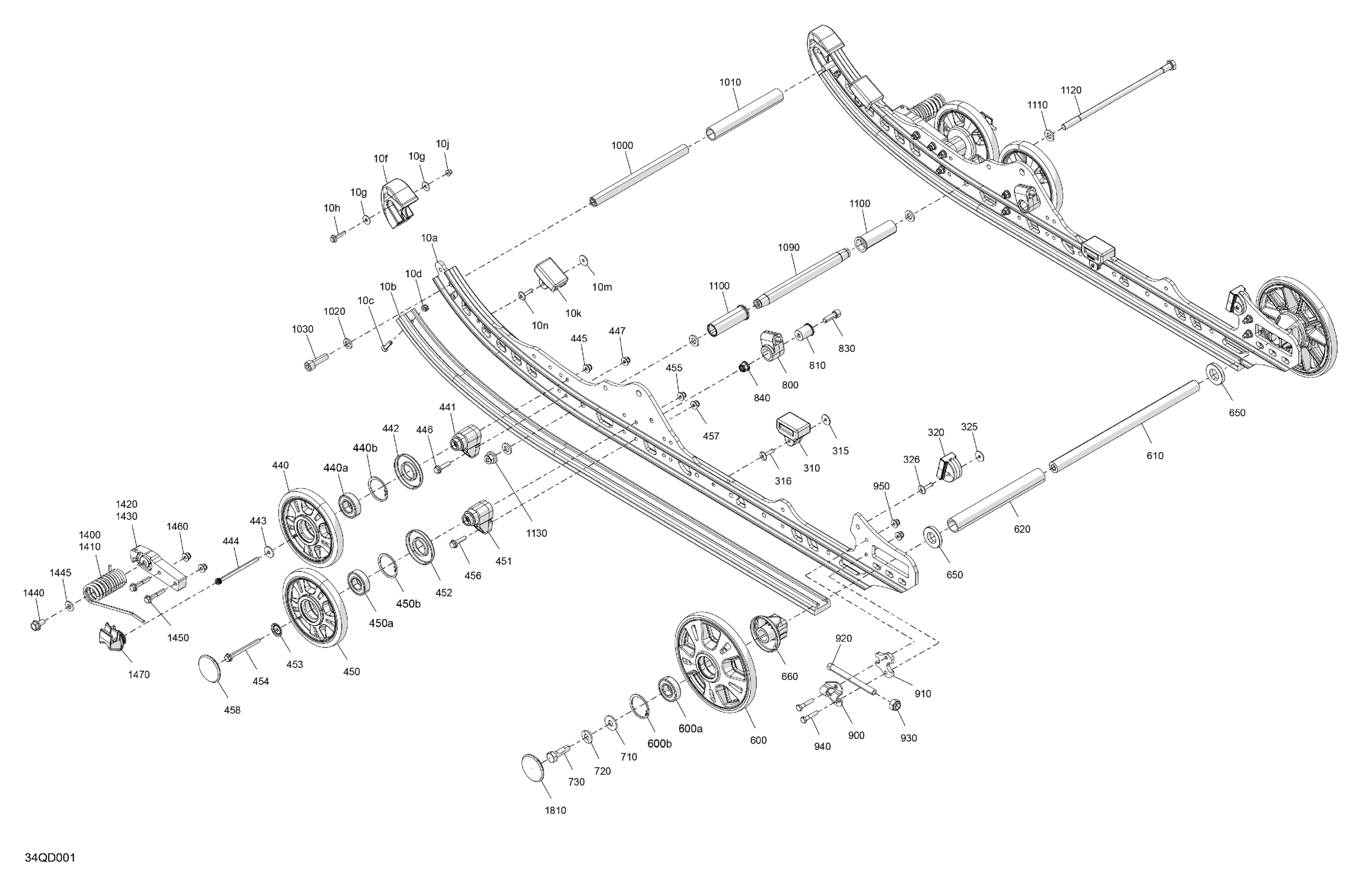

Ski-Doo Electric GRAND TOURING - SPORT - EVRA - Brigth White - 120X14X0.75LFF Track, 2024 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Neo Yellow, Suspension Rail 120 | Includes 10a to 10a1

503197032

$272.36

10b

Suspension Slide 120

503197684

$199.22

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10f

Rail Protector

503196873

$16.39

10g

Washer

250200140

$0.96

10h

Hex. Flange Screw M5 X 25

207652544

$0.48

10j

Flange Elastic Nut M5

233251434

$1.91

10k

Rubber Stopper

503190576

$9.93

10m

Washer

503191273

$1.03

10n

Rivet Ornit 4.8 X 27.5

293150256

$1.88

310

Rubber Stopper

503193504

$12.31

315

Washer

503191273

$1.03

316

Rivet Ornit 4.8 X 27.5

293150256

$1.88

320

Rubber Stopper

503191291

$17.88

325

Washer

503191273

$1.03

326

Rivet Ornit 4.8 X 27.5

293150256

$1.88

440

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

440a

Ball Bearing | Package-STD

503190396

$8.18

440b

Retaining Ring

415129371

$8.66

441

Casted Support

503193894

$12.37

442

Labyrinth Seal

503190434

$4.16

443

Flat Washer

224061201

$1.27

444

Socket Head Screw M6 X 90

229000735

$14.90

445

Hex. Flange Elastic Nut M6

233261466

$1.91

446

Hex. Flange Screw M6 X 25

250000945

$4.15

447

Hex. Flange Elastic Nut M6

233261466

$1.91

450

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

451

Casted Support

503193894

$12.37

452

Labyrinth Seal

503190434

$4.16

453

Wheel Cup M6

503191820

$4.52

454

Hex. Flange Screw M6 X 70

250000944

$4.15

455

Hex. Flange Elastic Nut M6

233261466

$1.91

456

Hex. Flange Screw M6 X 25

250000945

$4.15

457

Hex. Flange Elastic Nut M6

233261466

$1.91

458

Black, Wheel Cap

503192771

$2.21

600

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

600a

Ball Bearing | Package-STD

503190396

$8.18

600b

Retaining Ring

415129371

$8.66

610

Rear Axle

503190429

$58.18

620

Spacer

503191108

$14.90

650

Washer

503190432

$12.15

660

Rear Wheel Support

503196753

$4.69

710

Washer

503191910

$2.18

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

800

Spring Support Kit

861805547

$7.90

810

Spring Support Kit

861805547

$7.90

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503192583

$5.67

910

Spacer

503193250

$13.54

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Cap Screw M6 X 30

207063054

$5.06

950

Hex. Flange Elastic Nut M6

233261466

$1.91

1000

Axle Strap

503191260

$28.33

1010

Spacer

503196943

$7.36

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09

1090

Center Shaft

503191764

$58.93

1100

Center Bushing

503191351

Unavailable

1110

Flat Washer

250200143

$3.01

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

1400

LH Ice Scratcher

503197370

$64.90

1410

RH Ice Scratcher

503197371

$64.90

1420

LH Ice Scratcher Support

503197372

$38.78

1430

RH Ice Scratcher Support

503197373

$38.78

1440

Hex. Flange Screw M8 X 16

207681644

$3.90

1445

Washer

503192494

$3.01

1450

Hex. Flange Screw M6 X 35

207663544

$0.85

1460

Hex. Flange Elastic Nut M6

233261466

$1.91

1470

Retaining Hook Ass'y - Call your local BRP dealership

503197496

Unavailable

1810

Black, Wheel Cap

503192771

$2.21
