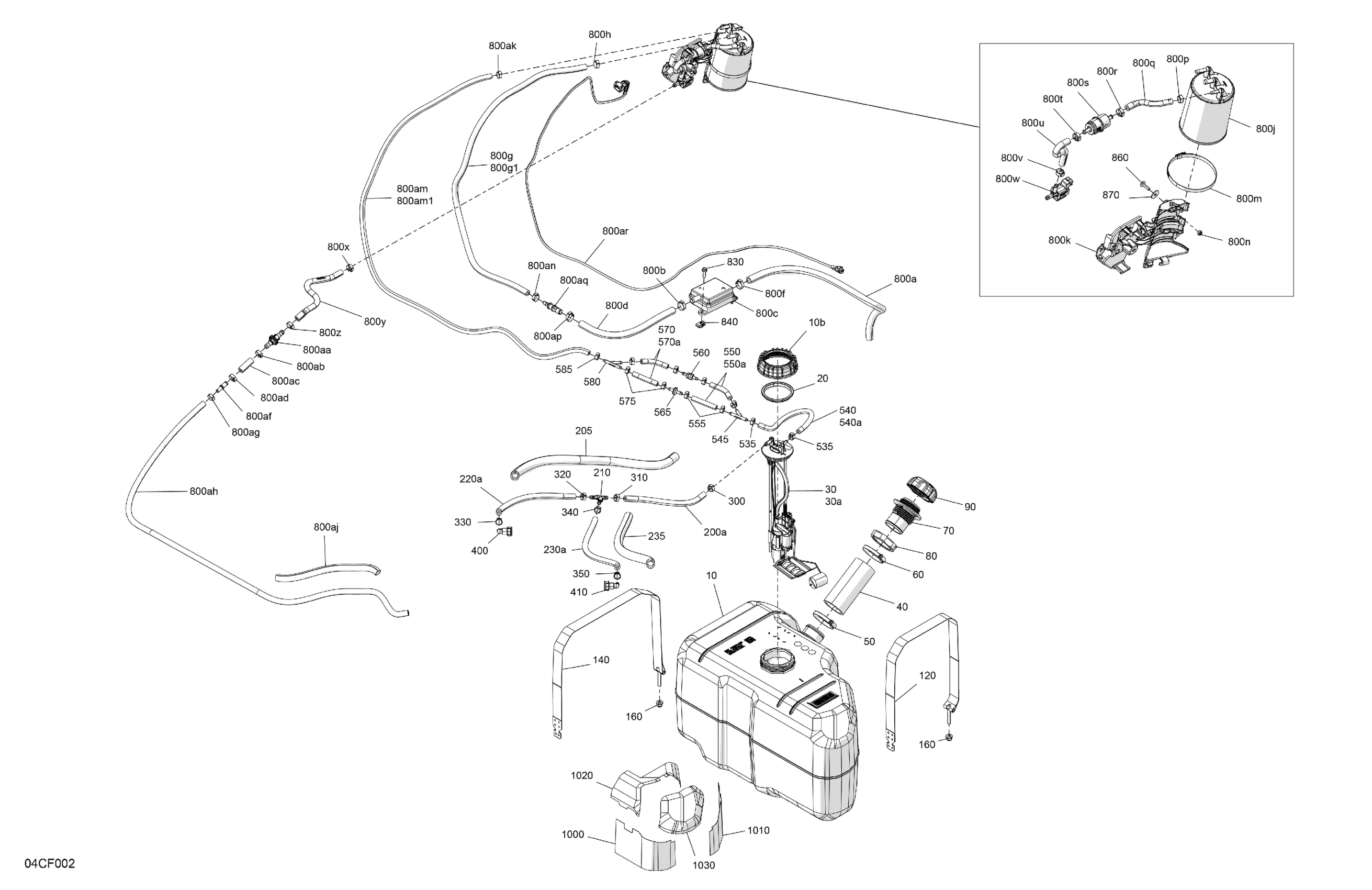

Can-Am Defender PRO - HD10 - XT - 6ETC - Stealth Black - 64" Width - CALI, 2026 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$240.27

10b

Fuel Pump Module Nut

709000328

$12.43

20

Seal

709000208

$12.16

30

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

40

Filler Neck Hose

709001698

$28.33

50

Norma Clamp

293650081

$11.33

60

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$11.51

90

Fuel Cap

709000868

$29.07

120

Retaining Strap

709001291

$35.79

140

Retaining Strap

709001292

$35.79

160

Hex. Flange Elastic Nut M8

233281414

$1.31

200a

Hose 7,94 MM ID

219704621

$81.31

205

Tubing 16 Mm 1000Mm Long

219704408

$7.15

210

Y Fitting

709001329

$9.85

220a

Hose 7,94 MM ID

219704621

$81.31

230a

Hose 7,94 MM ID

219704621

$81.31

235

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Disconnect

275500921

$14.48

410

Quick Disconnect

275500921

$14.48

535

Oetiker Clamp

293650042

$1.61

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

540a

Not Available As Spare Parts

XXX

Unavailable

545

Y-Fitting

293710059

$9.40

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

550a

Not Available As Spare Parts

XXX

Unavailable

555

Oetiker Clamp

293650042

$1.61

560

Check Valve

513034263

$29.07

565

Check Valve This part replaces 275500087.

275501246

Unavailable

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

570a

Not Available As Spare Parts

XXX

Unavailable

575

Oetiker Clamp

293650042

$1.61

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$1.61

800a

Crankcase Breather

707800699

$25.34

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Hose Fuel Vapour Canister

707800965

$20.87

800f

Oetiker Clamp

293650186

$3.82

800g

Hose 3000Mm Long

219704612

$77.58

800g1

Hose

709001573

Unavailable

800h

Crimp Clamp

293650053

$2.78

800j

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800k

Charcoal Canister Support

709001498

$4.76

800m

Tridon Clamp

293650054

$8.63

800n

Hex. Elastic Stop Nut M6

232561600

$1.06

800p

Oetiker Clamp

293650042

$1.61

800q

Charcoal Canister Hose

709001496

$16.39

800r

Crimp Clamp, 15.3-706R

293650047

$3.03

800s

Fuel Filter

513034047

$35.99

800t

Crimp Clamp, 15.3-706R

293650047

$3.03

800u

Charcoal Canister Hose

709001497

$16.39

800v

Crimp Clamp, 15.3-706R

293650047

$3.03

800w

Purge Valve

709001449

$64.90

800x

Crimp Clamp, 15.3-706R

293650047

$3.03

800y

Formed Hose

709001541

$26.09

800z

Crimp Clamp

293650053

$2.78

800aa

Check Valve

275500941

$23.10

800ab

Crimp Clamp

293650053

$2.78

800ac

Hose

709001638

$14.33

800ad

Crimp Clamp

293650053

$2.78

800af

Flow Reducer

709000933

$3.79

800ag

Crimp Clamp, 15.3-706R

293650047

$3.03

800ah

Hose 3000Mm Long

219704612

$77.58

800aj

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800ak

Oetiker Clamp

293650046

$2.67

800am

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800am1

Not Available As Spare Parts

XXX

Unavailable

800an

Crimp Clamp

293650053

$2.78

800ap

Oetiker Clamp

293650186

$3.82

800aq

Flow Reducer

709001208

$4.45

800ar

Wiring Harness

710010158

$18.63

830

Hex. Flange Screw M6 X 20

207662054

$0.96

840

Panel Nut M6 X 1.0

250100198

$1.99

860

Torx Screw M6 X 20

250000712

$2.00

870

Flat Washer M6.6 X 22

250200162

$2.19

1000

Heat Shield

707002670

$30.57

1010

Heat Shield

707002671

$30.57

1020

Heat Shield

707002673

$30.57

1030

Heat Shield

707002719

$29.82
