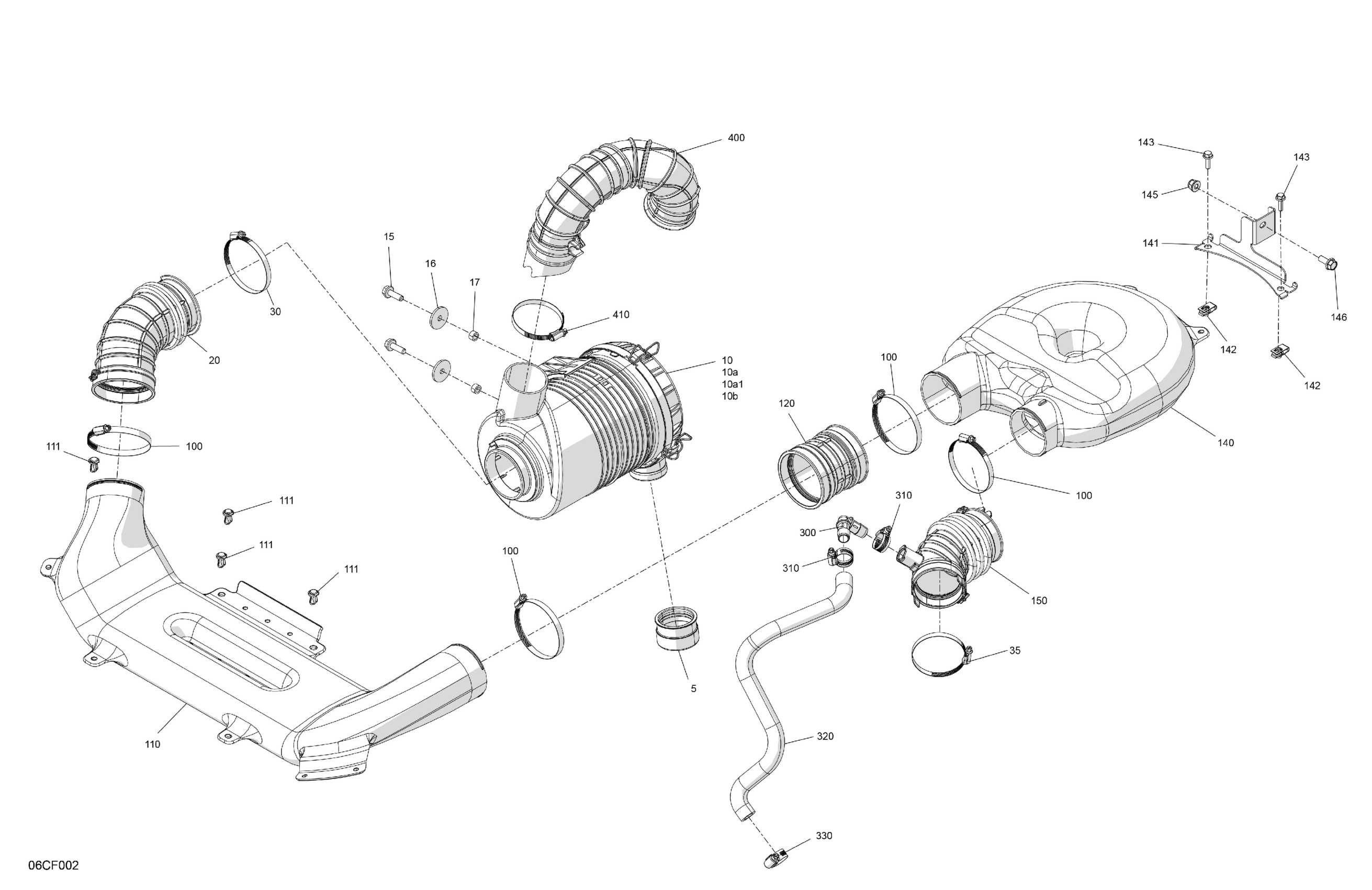

Can-Am Defender PRO - HD10 - XT - 6ETC - Stealth Black - 64" Width - CALI, 2026 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$12.09

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$166.39

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$84.30

10a1

O-Ring

715900514

$17.13

10b

Air Filter

715900394

$49.22

Hex. Flange Screw M8 X 25

207682544

$1.03

Flat Washer M8

250200158

$2.00

Bushing

277000980

$14.27

Front Intake Duct

707800879

$25.34

Norma Clamp

293650096

$3.00

Norma Clamp

293650091

$4.46

100

Norma Clamp

293650096

$3.00

110

Central Intake Duct

707800836

$74.60

111

Tuflok Plastic Rivet

293150230

$1.39

120

Rear Intake Duct

707800880

$17.88

140

Air Inlet Box

707800877

$46.99

141

Duct Support | Includes 141 to 141a

707801123

$41.01

142

Panel Nut M6 X 1.0

250100198

$1.99

143

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

145

Hex. Flange Elastic Nut M8

233281414

$1.31

146

Hex. Flange Screw M8 X 20

207682044

$1.06

150

Rear Main Intake Duct

707800837

$25.34

300

Elbow Fitting 90

293710155

$7.72

310

Tridon Gear Clamp

293650173

$2.82

320

Crankcase Hose Formed

707800890

$33.55

330

Tridon Gear Clamp

293650173

$2.82

400

Intake Duct

707801183

$41.01

410

Norma Clamp

293650091

$4.46
