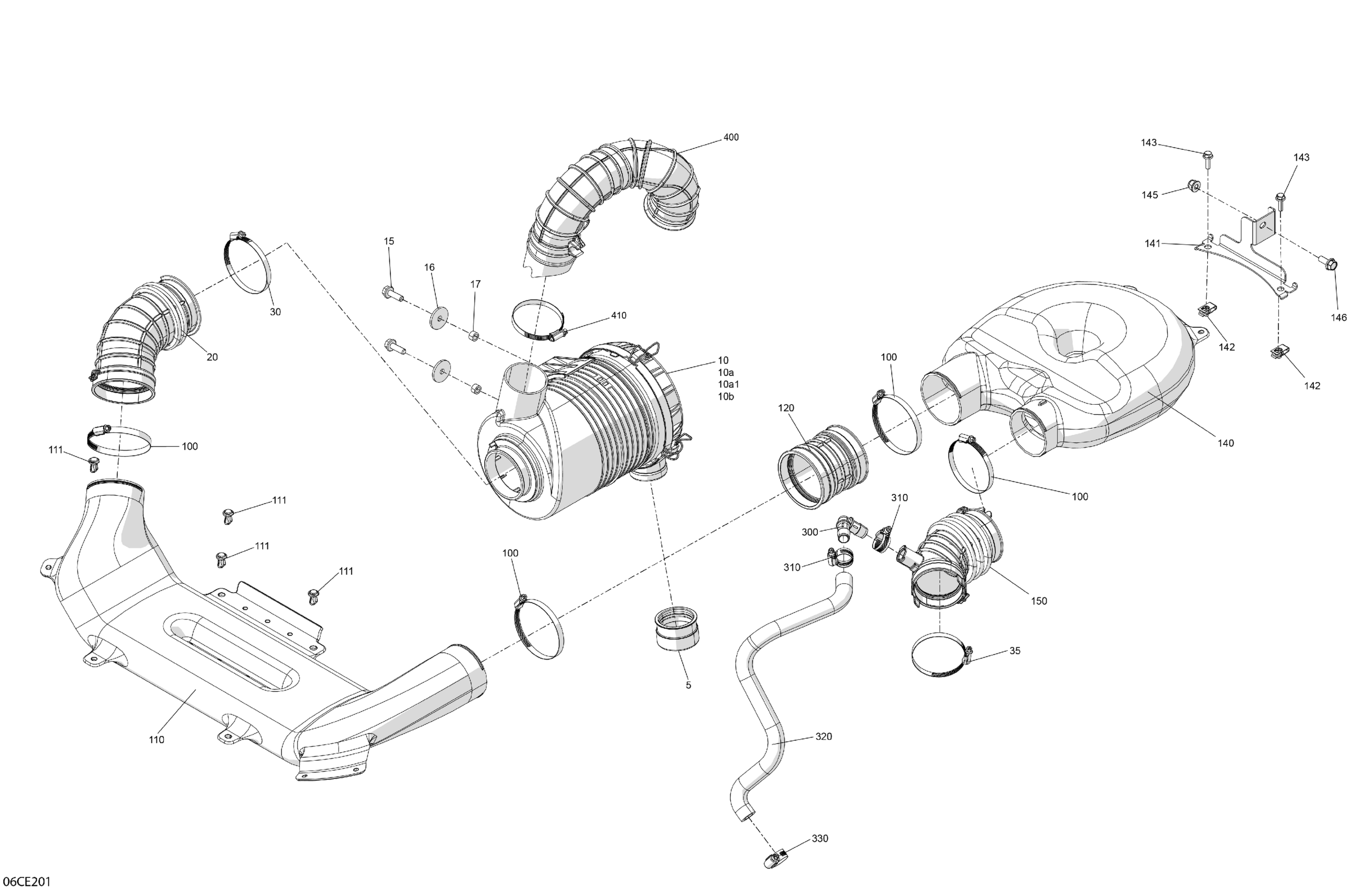

Can-Am Defender Pro - HD10 - XT - 6ESC - Stealth Black - 64" Width CALI, 2025 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$12.91

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10a1

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

Hex. Flange Screw M8 X 25

207682544

$0.90

Flat Washer M8

250200158

$1.74

Bushing

277000980

$12.43

Front Intake Duct

707800879

$27.66

Norma Clamp

293650096

$3.09

Norma Clamp

293650091

$4.60

100

Norma Clamp

293650096

$3.09

110

Central Intake Duct

707800836

$78.43

111

Tuflok Plastic Rivet

293150230

$1.21

120

Rear Intake Duct

707800880

$20.74

140

Air Inlet Box

707800877

$50.74

141

Duct Support | Includes 141 to 141a

707801123

$46.12

142

Panel Nut M6 X 1.0

250100198

$1.73

143

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

145

Hex. Flange Elastic Nut M8

233281414

$1.14

146

Hex. Flange Screw M8 X 20

207682044

$0.92

150

Rear Main Intake Duct

707800837

$27.66

300

Elbow Fitting 90

293710155

$8.45

310

Tridon Gear Clamp

293650173

$2.46

320

Crankcase Hose Formed

707800890

$36.89

330

Tridon Gear Clamp

293650173

$2.46

400

Intake Duct

707801183

$46.12

410

Norma Clamp

293650091

$4.60
