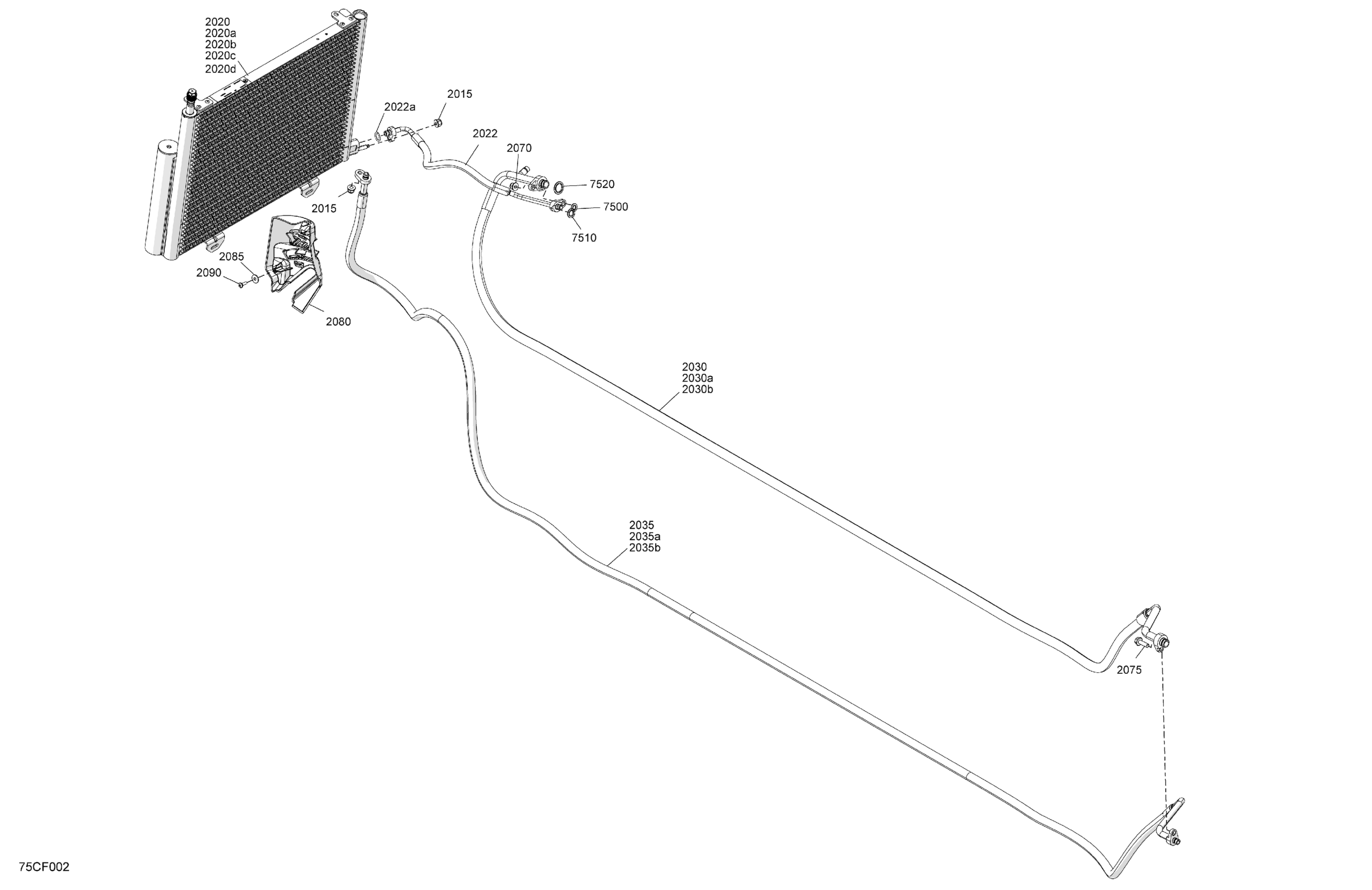

Can-Am Defender PRO - HD10 - LTD CAB - 9HTB - Dusty Navy Satin - 65" Width - CALI, 2026 Enclosure Cab - Air Conditioning Condenser Diagram

Description

Price

2015

Hex. Flange Elastic Nut M8

233281414

$1.14

2020

Condenser | Includes 2020 to 2020d

705801096

$692.28

2020a

Plastic Cap

715900678

$7.60

2020b

Pressure Switch

715900673

$23.05

2020c

Dessicant Cartridge

715900672

$46.12

2020d

O-RIng

715900915

$3.68

2022

Hose | Includes 2022 to 2022a

705800670

$124.58

2022a

O'Ring | Not Shown

715900707

$3.68

2030

Compressor Hose | Includes 2030 to 2030b

705800663

$147.66

2030a

O'Ring

715900708

$4.60

2030b

Plastic Cap

715900709

$3.85

2035

Compressor Hose | Includes 2035 to 2035b

705800664

$147.66

2035a

Pressure Switch

715900673

$23.05

2035b

O'Ring | Not Shown

715900707

$3.68

2070

Hex. Flange Elastic Nut M8

233281414

$1.14

2075

Hex. Flange Elastic Nut M8

233281414

$1.14

2080

Hose Support

705800779

$14.37

2085

Stainless Steel Flat Washer

234062670

$1.74

2090

Torx Screw K50 X 16

250000720

$1.39

7500

O-Ring Seal

705801218

$9.29

7510

O-Ring Seal

705801219

$10.14

7520

O-Ring Seal

705801220

$10.14
