Partiron

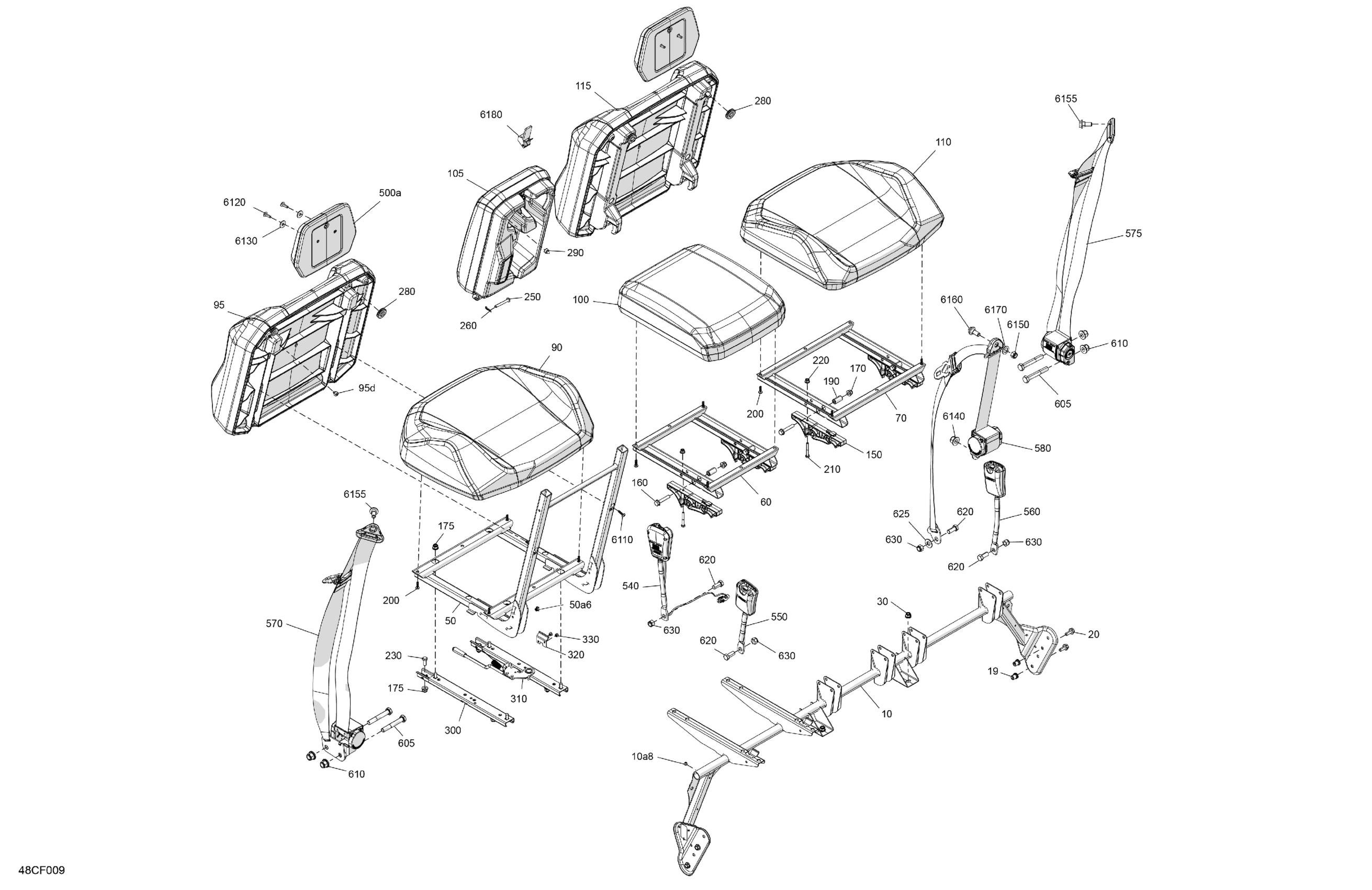

Can-Am Defender PRO - HD10 - LTD CAB - 9HTB - Dusty Navy Satin - 65" Width - CALI, 2026 Body - Seat Diagram

#

Description
Price

10

Seat Support | Includes 10 to 10a8

708004118

$101.51

10a8

Pop Rivet 3/16 X ,425

293150293

$0.26

19

Insert Half Hex Body M8 x 1.25

293450307

$2.03

20

Hex Screw Washer Head M8 X 20

207582054

$2.61

30

Hex. Flange Elastic Nut M8

233281414

$1.14

50

Operator Seat Member | Includes 50 to 50a7

708001723

$313.82

50a6

Pop Rivet 3/16 X ,425

293150293

$0.26

60

Mid Seat Member

708002815

$193.82

70

Passenger Seat Member

708002821

$193.82

90

LH Seat Base Ass'y

708003234

$235.35

95

Backrest Ass'y | Includes 130 to 130d

708003775

$332.28

95d

Rubber Bumper

293830005

$5.33

100

Central Cushion Ass'y

708001928

$235.35

105

Backrest Ass'y

708003157

$332.28

110

RH Seat Base Ass'y

708003236

$235.35

115

Backrest Ass'y

708003776

$332.28

150

Seat Base Pivot

708002581

$9.98

160

Hex. Flange Screw M8 X 45

207684544

$3.68

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Hex. Flange Elastic Nut M8

233281414

$1.14

190

Bushing

708003749

$3.08

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$2.02

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

230

Hex. Screw M8 X 20

207182044

$0.61

250

Pin

250400069

$3.08

260

Hairpin Cotter

269800431

$1.00

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

300

LH Seat Rail

708003314

$50.74

310

RH Seat Rail

708003315

$36.89

320

Seat Stopper

708003672

$2.75

330

Pop Rivet 3/16 X ,425

293150293

$0.26

500a

Headrest

708002853

$55.35

540

Driver Buckle

708002331

$69.20

550

Middle Buckle

708003163

$64.58

560

Passenger Buckle

708002329

$64.58

570

LH Safety Belt

708003082

$230.74

575

RH Safety Belt

708003200

$230.74

580

Central Safety Belt

708003688

$230.74

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

233221416

$2.33

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.85

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

6110

Torx Screw Truss Head K50X20 T20

250000760

$1.74

6120

Torx Screw M6 X 20

250000722

$1.34

6130

Flat Washer M6.6 X 22

250200162

$1.91

6140

Elastic Flange Nut M12

233221416

$2.33

6150

Lock Nut Nylon 7/16

250100183

$1.64

6155

Safety Belt screw

708002504

$5.52

6160

Safety Belt Screw

708000890

$3.68

6170

Position Washer

708000891

$1.15

6180

Latch

269501487

$12.97
