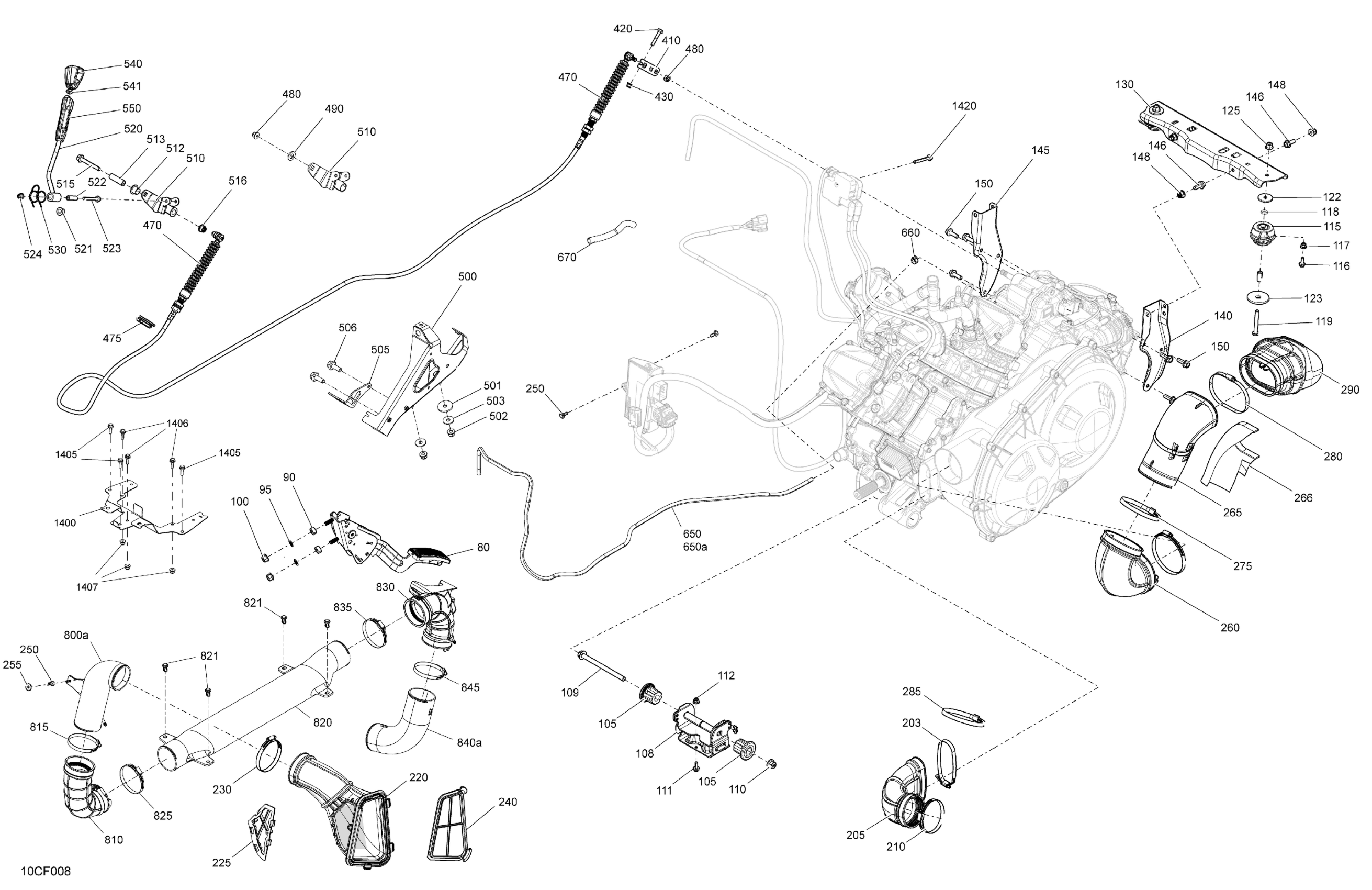

Can-Am Defender PRO - HD10 - LTD CAB - 9HTB - Dusty Navy Satin - 65" Width - CALI, 2026 Engine - System Diagram

#

Description
Price

80

Accelerator Pedal

707003503

$299.99

90

Bushing

707000848

$1.35

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut M8

233081416

$1.15

105

Vibration Damper

707001169

$42.99

108

Vibration Damper

707003563

$154.99

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 20

207662054

$1.01

112

Hex. Flange Elastic Nut M6

233261494

$1.58

115

Rubber Mount

707002590

$58.49

116

Hex. Flange Screw M6 X 20

207662044

$2.00

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

118

O-Ring

293300215

$0.90

119

Hex. Flange Screw, M8 X 65

207686544

$13.16

122

Flat Washer M8

250200158

$2.11

123

Flat Washer M8

250200180

$2.29

125

Hex. Flange Nut M8

233081416

$1.15

130

Rear Link Bracket

707002290

$30.99

140

LH Rear Engine Support

707003338

$15.49

145

RH Rear Engine Support

707003340

$18.99

146

Hex Flange Screw M8 X 20

207582046

$1.48

148

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex Flange Screw M8 X 20

207582046

$1.48

203

Norma Clamp

514052924

$14.22

205

Flexible Adapter

706600249

$19.49

210

Norma Clamp

293650091

$11.12

220

Adapter

706600422

$46.49

225

CVT Filter

706600423

$19.49

230

Norma Clamp

293650091

$11.12

240

CVT Filter

706600419

$19.99

250

Torx Screw Truss Head K50X20 T20

250000760

$2.11

255

Washer M5

250200025

$0.74

260

Flexible Adaptor

706600108

$23.99

265

Duct Out

706600426

$33.99

266

Heat Shield

706600133

$3.79

275

Norma Gear Clamp

514052983

$15.89

280

Norma Gear Clamp

514052983

$15.89

285

Norma Gear Clamp

514052983

$15.89

290

Air Deflector

706600125

$27.99

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Shift Lever Cable

707002725

$67.99

475

Grommet

293720109

$10.49

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

Lever Support

707003601

$36.99

501

Flat Washer M8

250200158

$2.11

502

Hex. Flange Elastic Nut M8

233281414

$1.47

503

Flat Washer 8 mm

234082410

$1.47

505

Cable Support

707002038

$16.87

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

510

Lower Shifter Arm

707002268

$16.99

512

Venturi Bushing

293900001

$7.62

513

Bushing

707003445

$13.12

515

Hex. Flange Screw M8 x 60

207686044

$3.07

516

Hex. Flange Elastic Nut M8

233281414

$1.47

520

Shifter Arm

707002374

$23.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

550

Shifting Arm Cover

707001899

$14.68

650

Hose 6.35MM ID

219704534

$25.99

650a

Hose 6.35MM ID

219704534

$25.99

660

Oetiker Clamp

293650042

$3.09

670

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800a

Front CVT Cooling Duct

706600326

$61.99

810

Flex Adapter

706600289

$27.99

815

Norma Clamp

293650091

$11.12

820

Duct

706600290

$53.99

821

Tuflok Plastic Rivet

293150230

$1.47

825

Norma Clamp

293650091

$11.12

830

Adapter

706600325

$31.99

835

Norma Clamp

293650091

$11.12

840a

Front CVT Cooling Duct

706600326

$61.99

845

Norma Clamp

293650091

$11.12

1400

Module Support

707003359

Unavailable

1405

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1406

Hex. Flange Screw M6 X 20

207662044

$2.00

1407

Hex. Flange Elastic Nut M6

233261494

$1.58

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11
