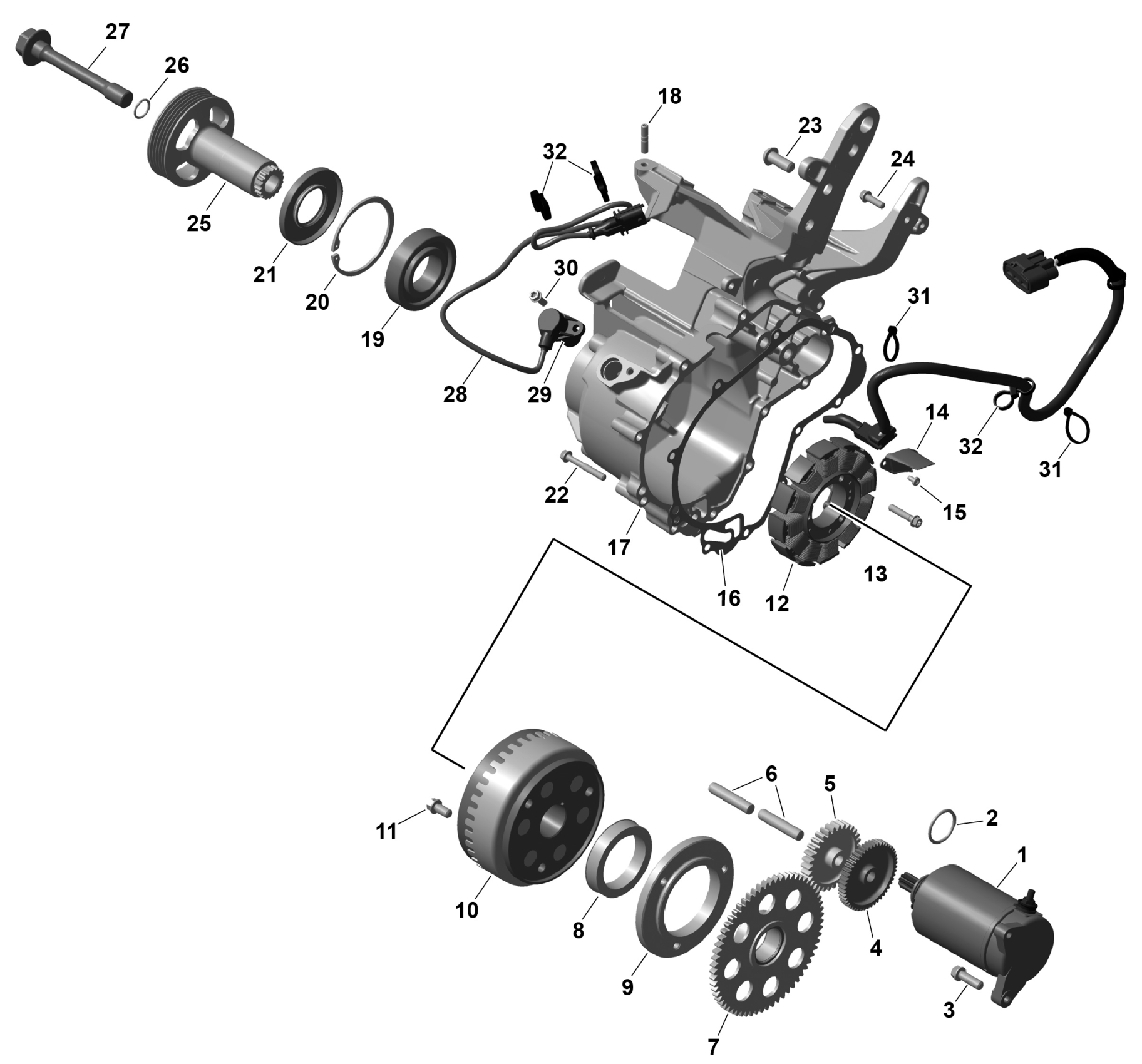

Can-Am Defender PRO - HD10 - LTD CAB - 9HTB - Dusty Navy Satin - 65" Width - CALI, 2026 ROTAX - Magneto and Electric Starter Diagram

Electric starter Ass'y

420684566

$265.99

O-Ring

420250140

$8.57

Torx Flange Screw M8 X 25

420440372

$4.12

Starter Double Gear 11/49 T

420634741

$199.99

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

Location Pin 10 M6x50

420229302

$3.17

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

Sprag Clutch

420659113

$259.99

Sparg Clutch Housing

420659263

$154.99

Magneto Flywheel 850W

420685706

$815.99

Torx Flange Screw M8 X 16

420440854

$4.44

Stator Plate

420686378

$319.49

Torx Flange Screw M6 X 30

420440647

$2.00

Interior Cable Support Ass'y

420251889

$14.30

Phillips Screw M4 X 8

420240196

$2.32

Gasket

420651203

$35.99

Ignition Cover | Includes no. 17-21

420211297

$455.99

Stud M6 X 14/15

420840491

$16.33

Ball Bearing

420632745

$25.99

Retaining Ring

420845790

$7.51

Oil Seal

420431402

$19.49

Torx Flange Screw M6 X 45

420440324

$0.98

Rounded Head Screw M10 X 25

420641030

$1.60

Torx Flange Screw M6 X 20

420441835

$3.17

Drive Pulley

420980830

$137.99

O-Ring

420631240

$2.11

Collar Screw M16 X 110

420841878

$31.99

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

Torx Flange Screw M6 X 16

420440162

$3.17

Tie Wrap 142X 3.2mm

420866722

$0.18

Double Clamp 305x 4.7MM

420651362

$3.79
