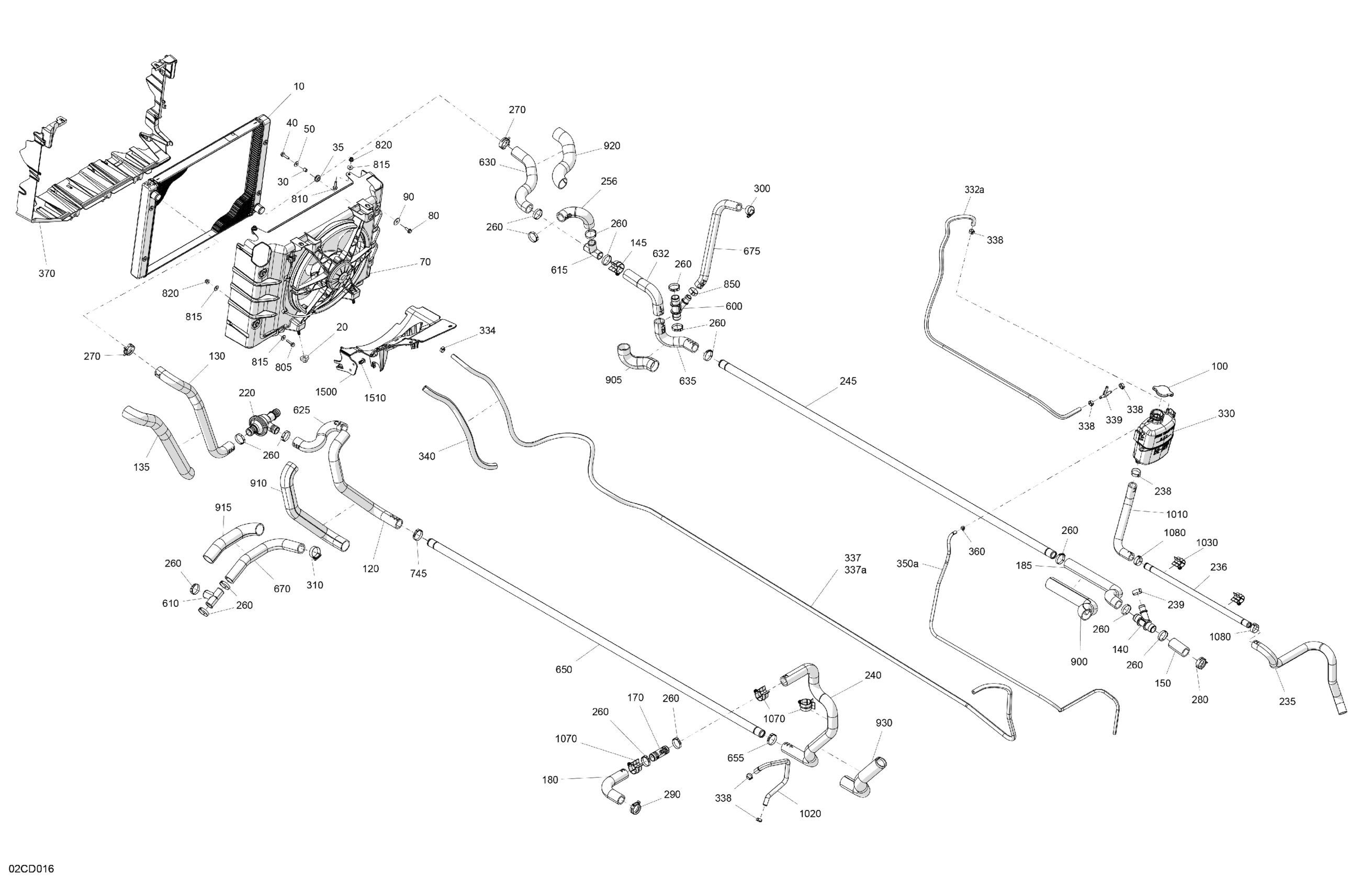

Can-Am Defender PRO HD10 - LTD CAB - 9HRD - Asphalt Grey - 67" Width, 2024 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200829

$259.67

20

Grommet

709200948

$8.13

30

Bushing

293900105

$6.07

35

Overmolded Grommet

293720130

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.61

50

Flat Washer 6 mm

234062410

$0.73

70

Cooling Fan Ass'y

709201287

$232.06

80

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

90

Washer M6

250200029

$1.78

100

Radiator Pressure Cap

709200207

$21.61

120

Hose

709200973

$13.39

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$9.84

140

Y Fitting

509001200

$5.10

145

Retainer

275500590

$8.24

150

Hose

709200299

$6.69

170

T-Fitting

509000510

$11.18

180

Hose Engine In

709201006

$10.51

185

Hose

709200971

$38.03

220

Thermostat Housing

709200986

$89.52

235

Formed Coolant Tank Hose Out

709201034

$32.81

236

Expansion Tank Tube

709200834

$17.88

238

Oetiker Gear Clamp

293650165

$4.96

239

Oetiker Gear Clamp

293650165

$4.96

240

Thermostat Inlet Hose

709201035

$32.81

245

Heater Tubing

709200658

$13.58

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$6.70

270

Norma Spring Clamp

293650166

$4.15

280

Norma Spring Clamp

293650166

$4.15

290

Norma Spring Clamp

293650166

$4.15

300

Aba Gear Clamp, 26-38 MM

509000443

$5.64

310

Aba Gear Clamp, 26-38 MM

509000443

$5.64

330

Coolant Tank

709201323

$72.36

332a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

334

Oetiker Clamp

293650042

$1.61

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

337a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

338

Crimp Clamp, 15.3-706R

293650047

$3.03

339

Y-Fitting

293710059

$9.40

340

Tubing 16 Mm 1000Mm Long

219704408

$7.15

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

360

Spring Clamp

414554800

$0.81

370

Front Radiator Deflector

709201233

$44.75

600

Y Fitting

509001200

$5.10

610

T-Fitting

509001313

$14.90

615

T-Fitting

509001313

$14.90

625

Hose Thermostat In

709201031

$14.91

630

Formed Radiator Hose OUT

709201444

$10.51

632

Formed Radiator Hose OUT

709201437

$10.51

635

Hose

709200972

$13.39

650

Heater Tubing

709200658

$13.58

655

Gear Clamp

509000162

$6.70

670

Hose

709200976

$13.39

675

Hose

709200975

$13.39

745

Gear Clamp

509000162

$6.70

805

Hex. Flange Screw M6 X 25

207662544

$0.61

810

Hex. Flange Screw M6 X 25

207662544

$0.61

815

Flat Washer 6 mm

234062410

$0.73

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

850

Oetiker Gear Clamp

293650165

$4.96

900

Tubing 35 MM 1000MM Long

219704428

$9.84

905

Tubing 35 MM 1000MM Long

219704428

$9.84

910

Tubing 35 MM 1000MM Long

219704428

$9.84

915

Tubing 35 MM 1000MM Long

219704428

$9.84

920

Tubing 35 MM 1000MM Long

219704428

$9.84

930

Tubing 35 MM 1000MM Long

219704428

$9.84

1010

Hose Coolant Tank Out Formed

709200836

$14.43

1020

Bleeding Hose

709200840

$19.37

1030

Cable Retainer

275500527

$2.68

1070

Retainer

275500590

$8.24

1080

Oetiker Gear Clamp

293650165

$4.96

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.39
