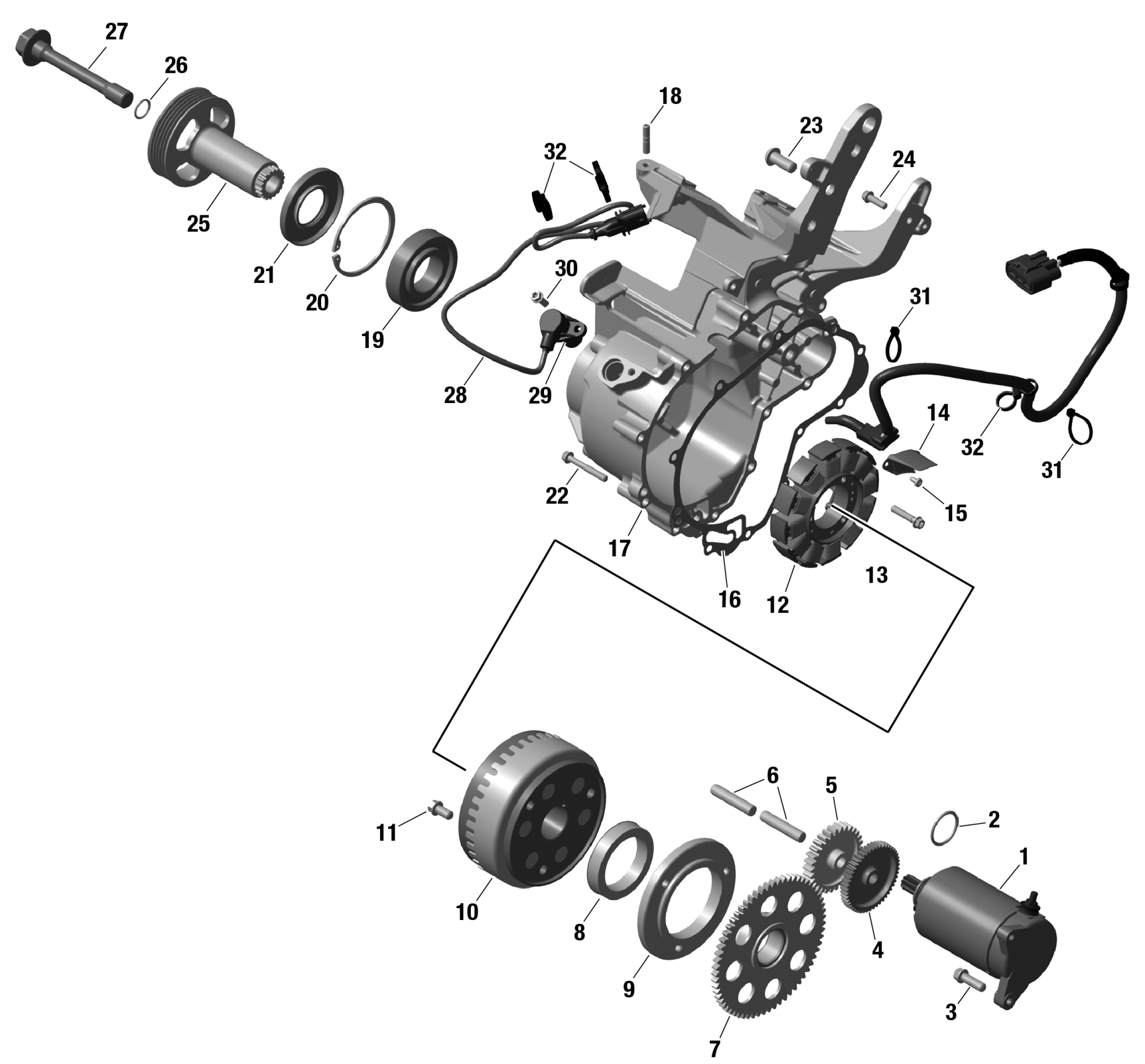

Can-Am Defender PRO HD10 - LTD CAB - 9HRD - Asphalt Grey - 67" Width, 2024 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6

Location Pin 10 M6x50

420229302

$3.17

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

8

Sprag Clutch

420659113

$259.99

9

Sparg Clutch Housing

420659263

$154.99

10

Magneto Flywheel 850W

420685706

$815.99

11

Torx Flange Screw M8 X 16

420440854

$4.44

12

Stator Ass'y 850W

420686365

$372.49

13

Torx Flange Screw M6 X 30

420440647

$2.00

14

Interior Cable Support Ass'y

420251889

$14.30

15

Phillips Screw M4 X 8

420240196

$2.32

16

Gasket

420651203

$35.99

17

Ignition Cover | Includes no. 17-21

420211297

$455.99

18

Stud M6 X 14/15

420840491

$16.33

19

Ball Bearing

420632745

$25.99

20

Retaining Ring

420845790

$7.51

21

Oil Seal

420431402

$19.49

22

Torx Flange Screw M6 X 45

420440324

$0.98

23

Rounded Head Screw M10 X 25

420641030

$1.60

24

Torx Flange Screw M6 X 20

420441835

$3.17

25

Drive Pulley

420980830

$137.99

26

O-Ring

420631240

$2.11

27

Collar Screw M16 X 110

420841878

$31.99

28

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

29

O-Ring

420431580

$14.83

30

Torx Flange Screw M6 X 16

420440162

$3.17

31

Tie Wrap 142X 3.2mm

420866722

$0.18

32

Double Clamp 305x 4.7MM

420651362

$3.79
