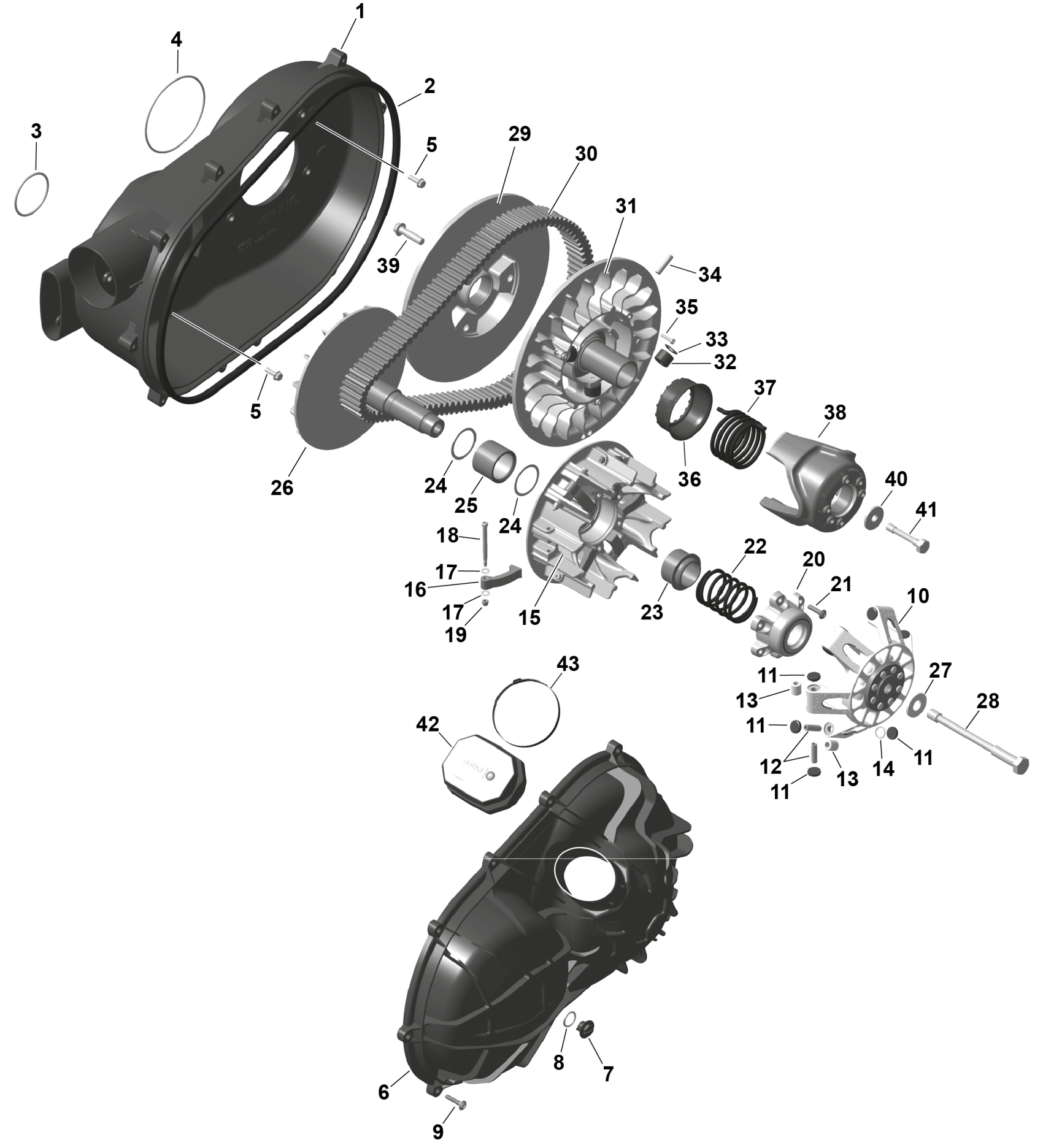

Can-Am Defender MAX - HD9 - XT - 8STF - Stealth Black - 62" Width, 2026 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420212604

$202.21

2

Gasket

420450400

$29.82

3

O-Ring | Included in gasket kit

420430409

$4.87

4

O-Ring

420450431

$4.87

5

Hex.Screw M6 X 20

420441311

$4.87

6

Variator Cover

420212503

$165.64

7

Cap

420441820

$10.55

8

O-Ring

420250052

$8.93

9

Torx Screw 6X30

420441575

$2.91

10

Governor Cup Ass'y

420280746

$170.12

11

Slider Shoe Set

420281296

$41.01

12

Roller Axle

417223257

$6.37

13

Roller

417223767

$7.15

14

O-Ring

420230456

$1.61

15

Outer Half Ass'y

420280608

$276.84

16

Lever Set | Includes 16-19

420248688

$190.27

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Bearing Cover Ass'y

420280615

$60.42

21

Torx Flange Screw M6 X 25

420841549

$1.91

22

Compression Spring

420638129

$32.81

23

Spring Seat

420427210

$36.34

24

Washer

420427220

$4.49

25

Needle Roller Bearing With Sleeves

420832351

$44.75

26

Inner Half Ass'y

420280596

$170.12

27

Washer

420245690

$4.49

28

Hexagonal Screw M14X 165

420841161

$26.84

29

Sliding Pulley Ass'y

420280636

$314.15

30

Drive Belt

422280656

$156.69

31

Outer Half Ass'y

420280628

$330.57

32

Pulley Roller

417127016

$22.36

32

QRS XD Roller Kit (2)

861805577

$75.34

33

Lock Washer 8 mm

250200009

$2.00

34

Pivot Stud

417127294

$13.18

35

Torx Screw M4 X 20

420841531

$1.61

36

Spring Support

420427805

$11.06

37

Compression Spring

420638124

$33.55

38

Cam

420280758

$108.18

39

Torx Flange Screw M10 X 40

420841711

$1.61

40

Collar Washer

420427243

$14.91

41

Hexagonal Screw M10X 61

420441990

$17.88

42

Closure Cap

420201940

$20.12

43

Ear Clamp 87.3-90.5MM

420251485

$6.93
