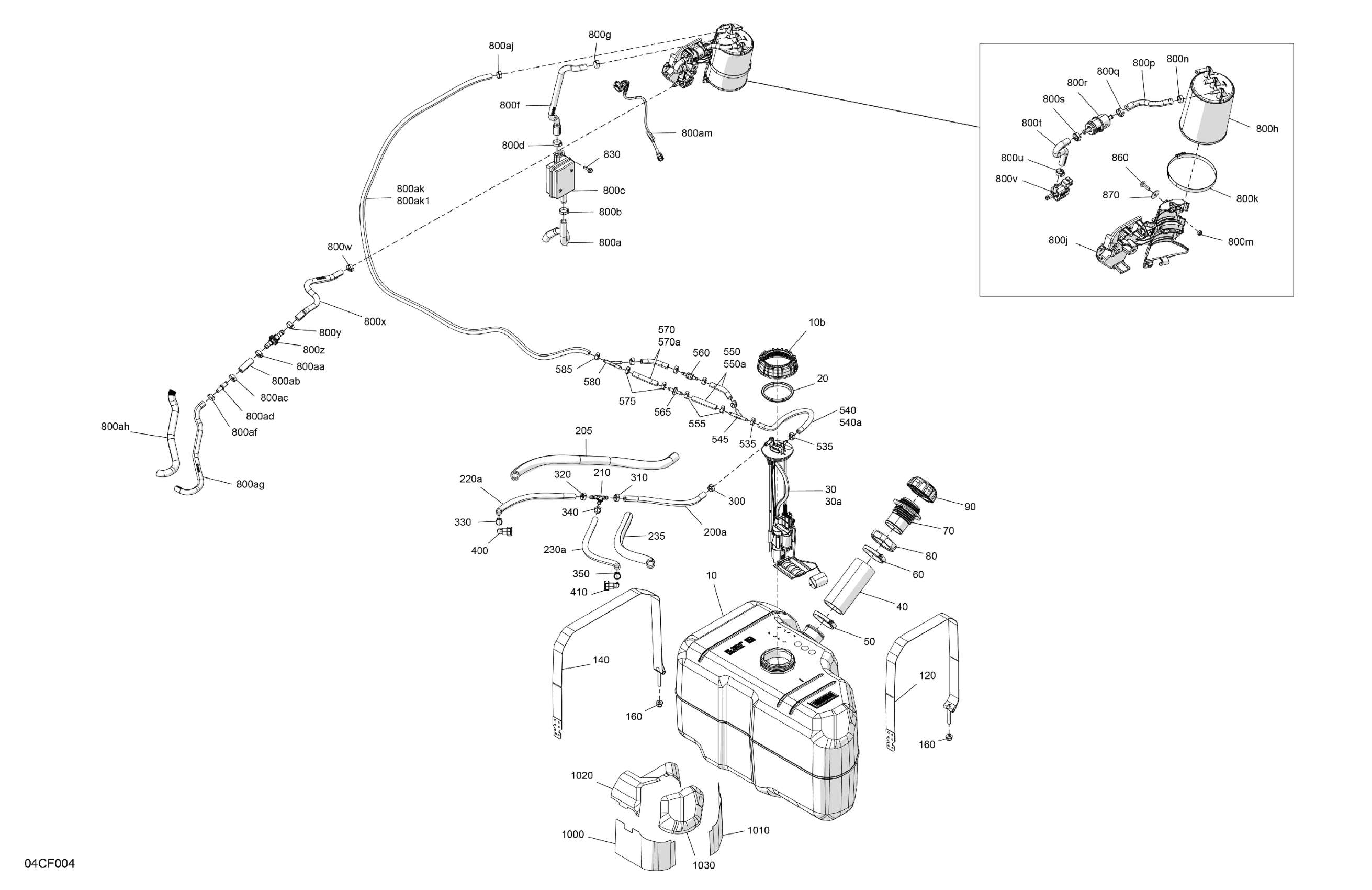

Can-Am Defender MAX - HD9 - XT - 8STD - Dark Wildland Camo - 62" Width - CALI, 2026 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$253.82

10b

Fuel Pump Module Nut

709000328

$12.82

20

Seal

709000208

$12.54

30

Fuel Pump | Includes 30 to 30a

709001189

$323.94

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.82

40

Filler Neck Hose

709001698

$32.28

50

Norma Clamp

293650081

$9.87

60

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.75

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$32.28

120

Retaining Strap

709001291

$36.89

140

Retaining Strap

709001292

$36.89

160

Hex. Flange Elastic Nut M8

233281414

$1.14

200a

Hose 7,94 MM ID

219704621

$87.66

205

Tubing 16 Mm 1000Mm Long

219704408

$6.23

210

Y Fitting

709001329

$10.15

220a

Hose 7,94 MM ID

219704621

$87.66

230a

Hose 7,94 MM ID

219704621

$87.66

235

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp, 15.3-706R

293650047

$2.64

310

Crimp Clamp, 15.3-706R

293650047

$2.64

320

Crimp Clamp, 15.3-706R

293650047

$2.64

330

Crimp Clamp, 15.3-706R

293650047

$2.64

340

Crimp Clamp, 15.3-706R

293650047

$2.64

350

Crimp Clamp, 15.3-706R

293650047

$2.64

400

Quick Disconnect

275500921

$12.61

410

Quick Disconnect

275500921

$12.61

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

540a

Not Available As Spare Parts

XXX

Unavailable

545

Y-Fitting

293710059

$8.19

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

550a

Not Available As Spare Parts

XXX

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513034263

$29.97

565

Check Valve This part replaces 275500087.

275501246

Unavailable

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

570a

Not Available As Spare Parts

XXX

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

800a

Hose Fuel Vapour Canister

707800965

$23.05

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$46.12

800d

Oetiker Clamp

293650186

$3.33

800f

Formed Hose

709000850

$14.75

800g

Crimp Clamp

293650053

$2.42

800h

Charcoal Canister This part replaces 709001294.

709001673

$83.05

800j

Charcoal Canister Support

709001498

$5.52

800k

Tridon Clamp

293650054

$7.51

800m

Hex. Elastic Stop Nut M6

232561600

$0.92

800n

Oetiker Clamp

293650042

$1.40

800p

Charcoal Canister Hose

709001496

$16.89

800q

Crimp Clamp, 15.3-706R

293650047

$2.64

800r

Fuel Filter

513034047

$23.05

800s

Crimp Clamp, 15.3-706R

293650047

$2.64

800t

Charcoal Canister Hose

709001497

$16.89

800u

Crimp Clamp, 15.3-706R

293650047

$2.64

800v

Purge Valve

709001449

$69.20

800w

Crimp Clamp, 15.3-706R

293650047

$2.64

800x

Formed Hose

709001541

$27.66

800y

Crimp Clamp

293650053

$2.42

800z

Check Valve

275500941

$27.66

800aa

Crimp Clamp

293650053

$2.42

800ab

Hose

709001638

$15.35

800ac

Crimp Clamp

293650053

$2.42

800ad

Flow Reducer

709000933

$4.60

800af

Crimp Clamp, 15.3-706R

293650047

$2.64

800ag

Formed Hose

709001630

$17.66

800ah

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800aj

Oetiker Clamp

293650046

$2.33

800ak

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ak1

Not Available As Spare Parts

XXX

Unavailable

800am

Wiring Harness

710009876

$18.43

830

Hex. Flange Screw M6 X 20

207662054

$0.83

860

Torx Screw M6 X 20

250000712

$1.74

870

Flat Washer M6.6 X 22

250200162

$1.91

1000

Heat Shield

707002670

$32.28

1010

Heat Shield

707002671

$32.28

1020

Heat Shield

707002673

$32.28

1030

Heat Shield

707002719

$32.28
