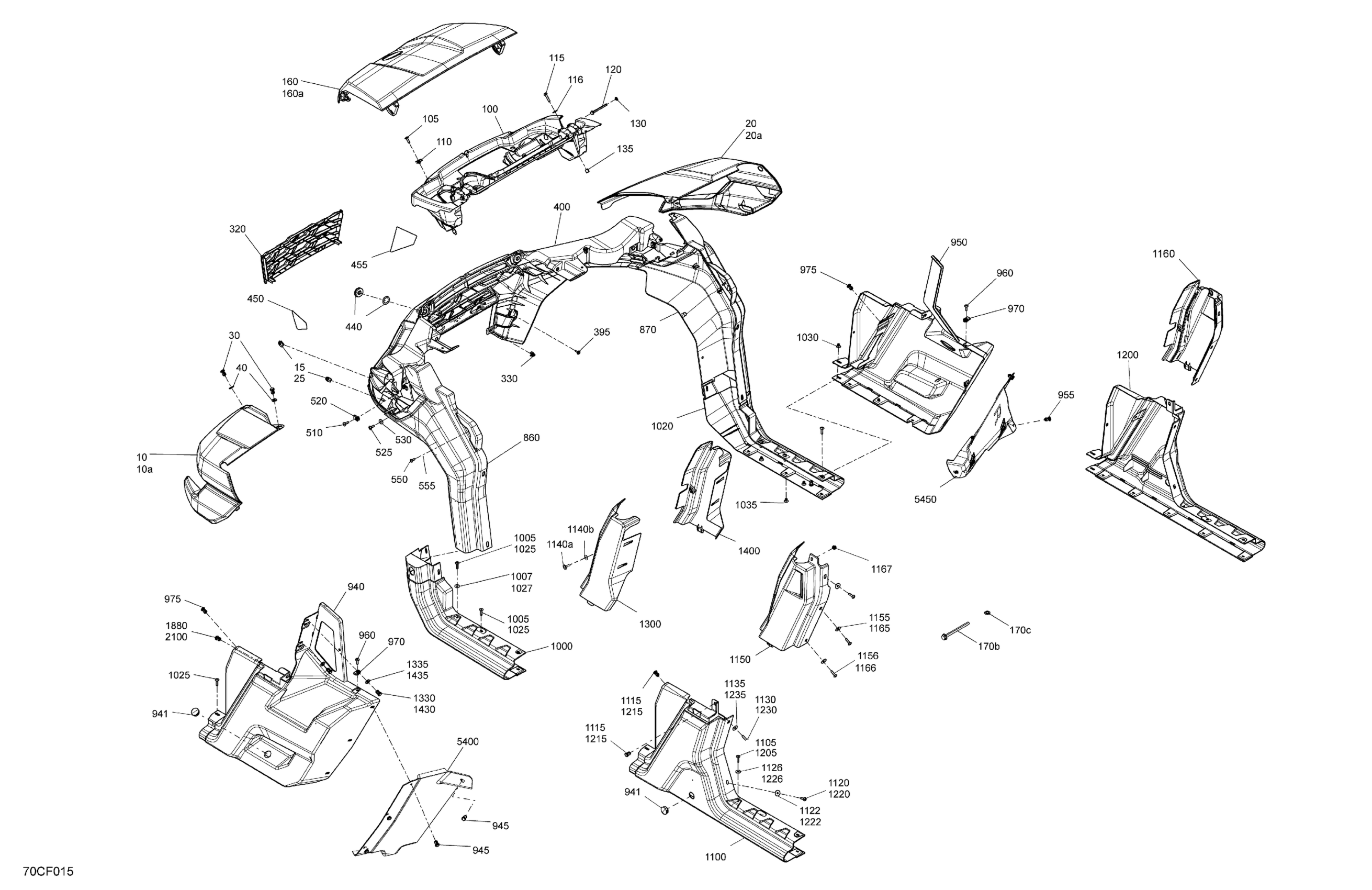

Can-Am Defender MAX - HD9 - DPS - 8RTL - Dark Wildland Camo - 62" Width - CALI, 2026 Body - System Diagram

Dark Wildland Camo, LH Front Fender | Includes 10 to 10a

705019720

$368.63

LH Front Fender

705016320

$184.30

Panel Nut M6 X 1.0

250100198

$1.99

Dark Wildland Camo, RH Front Fender | Includes 20 to 20a

705019721

$368.63

RH Front Fender

705016321

$184.30

Panel Nut M6 X 1.0

250100198

$1.99

Tuflok Plastic Rivet

293150230

$1.39

Washer

503192494

$3.01

Multi Purpose Support

705013766

$39.52

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M6 X 1.0

250100198

$1.99

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

Stainless Steel Flat Washer

234062670

$2.00

Hex. Flange Screw M6 X 75

207667554

$4.15

Push Nut

732610072

$1.97

Bushing

293900125

$2.69

Dark Wildland Camo, Front Hood | Includes 160 to 160a

705019722

$340.27

Deep Black, Front Hood

705016319

$329.07

Hex. Flange Screw M6 X 75

207667554

$4.15

Push Nut

732610072

$1.97

Grille

705013590

$23.85

Clip

517306478

$1.03

Screw M4 X 16

250000725

$3.30

Deep Black, Front Fascia

705013591

$206.69

Grommet

705010718

$2.69

LH Front Reflector

704905072

$10.82

RH Front Reflector

704905073

$10.82

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M6 X 1.0

250100198

$1.99

Torx Screw M6 X 20

250000722

$1.54

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw K50 X 16

250000720

$1.60

Flat Washer M5

234051670

$2.00

LH Front Lateral Panel

705008152

$55.94

RH Front Lateral Panel

705008153

$55.94

Deep Black, LH Rear Body Panel

705013658

$99.22

Black, Nylon Cap

414916600

$4.19

Tuflok Plastic Rivet

293150230

$1.39

Deep Black, RH Rear Body Panel

705013659

$99.22

Tuflok Plastic Rivet

293150230

$1.39

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M6 X 1.0

250100198

$1.99

Tuflok Plastic Rivet

293150230

$1.39

Deep Black, LH Central Panel

705019037

$64.15

Torx Truss Screw M6 X 25

250000807

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Deep Black, RH Central Panel

705019038

$67.13

Torx Truss Screw M6 X 25

250000807

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

LH Middle Side Panel

705013660

$99.22

Torx Truss Screw M6 X 25

250000807

$2.00

Tuflok Plastic Rivet

293150230

$1.39

Torx Truss Screw M6 X 25

250000807

$2.00

Flat Washer M6.6 X 22

250200162

$2.19

Stainless Steel Flat Washer

234062670

$2.00

Torx Truss Screw M6 X 25

250000807

$2.00

Flat Washer M6.6 X 22

250200162

$2.19

LH Middle Cage Cover

705010601

$35.04

Flat Washer M6.6 X 22

250200162

$2.19

Torx Truss Screw M6 X 25

250000807

$2.00

RH Middle Cage Cover

705010602

$35.04

Flat Washer M6.6 X 22

250200162

$2.19

Torx Truss Screw M6 X 25

250000807

$2.00

Insert Half Hex Body M6 x 1.0

250100199

$2.91

RH Middle Side Panel

705013661

$99.22

Torx Truss Screw M6 X 25

250000807

$2.00

Tuflok Plastic Rivet

293150230

$1.39

Torx Truss Screw M6 X 25

250000807

$2.00

Flat Washer M6.6 X 22

250200162

$2.19

Stainless Steel Flat Washer

234062670

$2.00

Torx Truss Screw M6 X 25

250000807

$2.00

Flat Washer M6.6 X 22

250200162

$2.19

LH Rear Cage Cover Kit

715003564

$73.85

Tuflok Plastic Rivet

293150230

$1.39

Washer

503192494

$3.01

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

Tuflok Plastic Rivet

293150230

$1.39

Washer

503192494

$3.01

Tuflok Plastic Rivet

293150230

$1.39

Tuflok Plastic Rivet

293150230

$1.39

LH Rear Deflector

705016336

$46.24

RH Rear Deflector

705016337

$46.24

Torx Truss Screw M6 X 25

250000807

$2.00

Stainless Steel Flat Washer

234062670

$2.00
