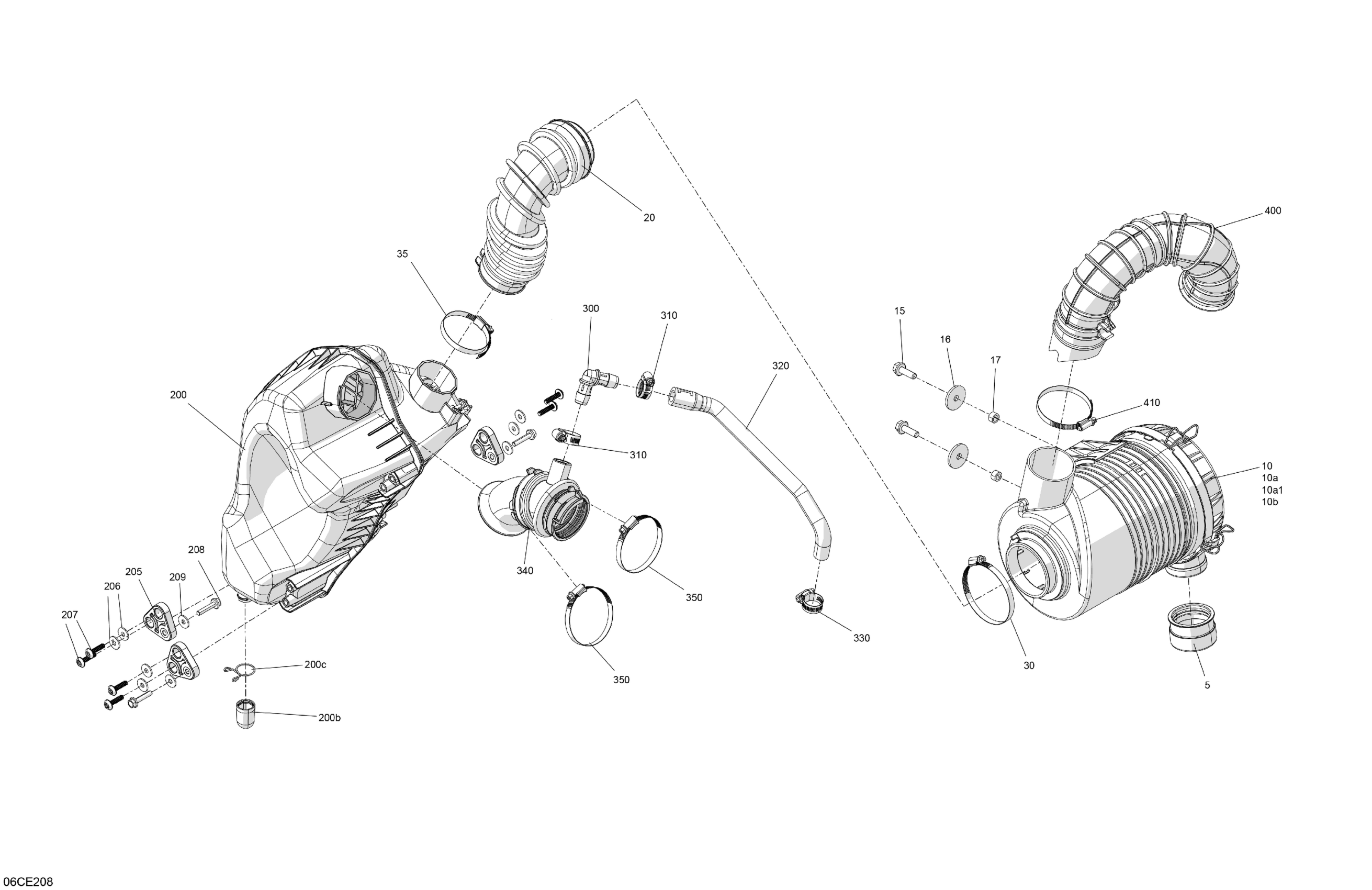

Can-Am Defender Max - HD7 - DPS - 8ASH - Wildland Camo - 62" Width CALI, 2025 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$13.49

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a1

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

Hex. Flange Screw M8 X 25

207682544

$1.35

Flat Washer M8

250200158

$2.11

Bushing

277000980

$15.99

Intake Adapter

707800923

$27.99

Norma Clamp

293650096

$3.17

Norma Clamp

293650091

$11.12

200

Primary Chamber Ass'y | Includes 200 to 200c

707801013

$84.99

200b

Cap

293000135

$7.79

200c

Spring Clamp

707801043

$13.99

205

Support

707801000

$13.99

206

Flat Washer 6 mm

234062410

$0.77

207

Hex. Screw Pt K60 X 25

250000980

$2.11

208

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

209

Flat Washer 6 mm

234062410

$0.77

300

Elbow Fitting 90

293710155

$9.39

310

Tridon Gear Clamp

293650173

$3.09

320

Crankcase Hose

707800924

$11.99

330

Tridon Gear Clamp

293650173

$3.09

340

Intake Adapter

707800930

$27.99

350

Norma Clamp

293650091

$11.12

400

Intake Duct

707801183

$45.99

410

Norma Clamp

293650091

$11.12
