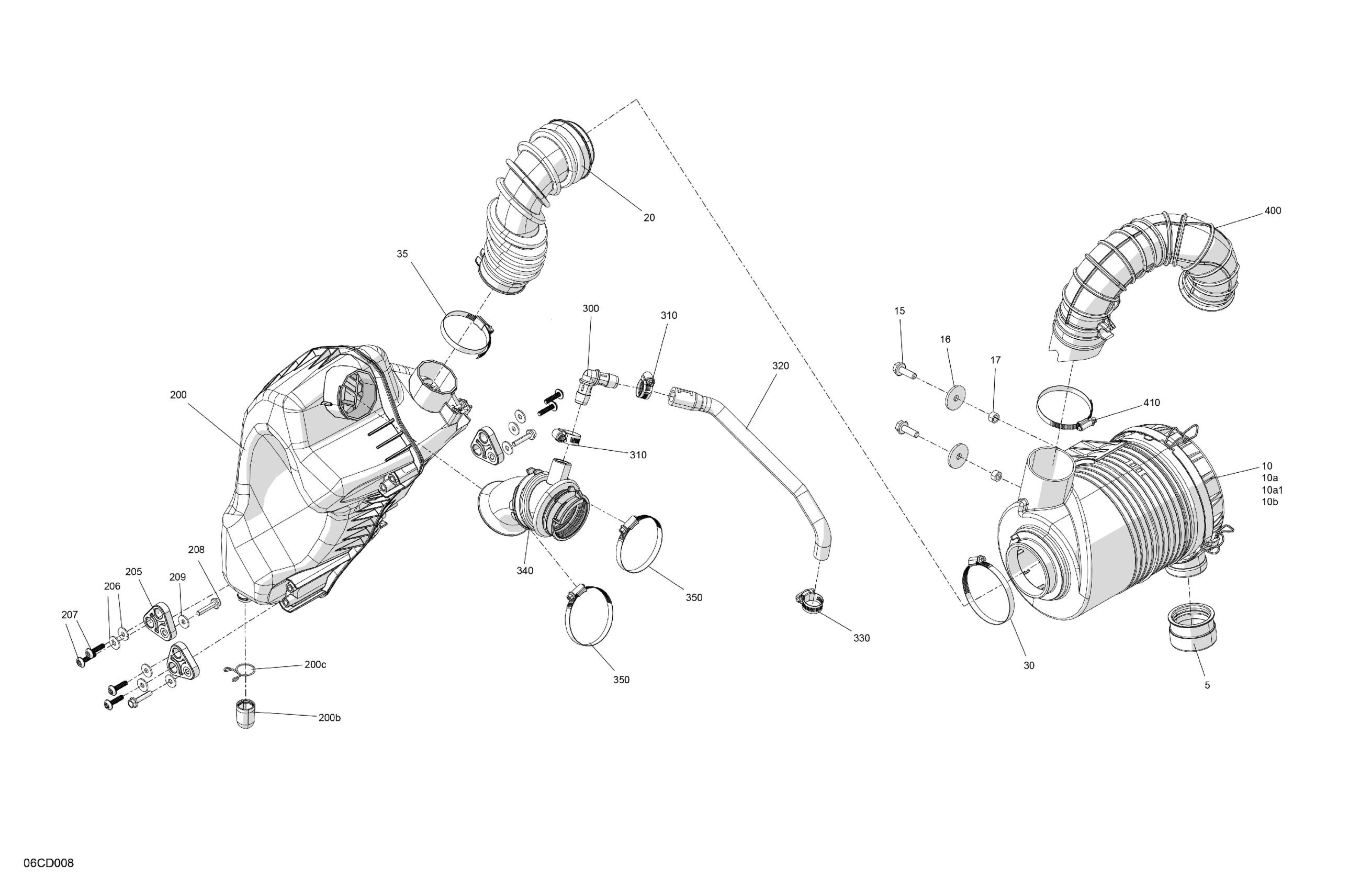

Can-Am Defender MAX HD7 - DPS - 8ARH - Wildland Camo - 62" Width CALI, 2024 Engine - Air Intake Diagram

Description

Price

Duct Bill Valve

715003114

$12.91

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10a1

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

Hex. Flange Screw M8 X 25

207682544

$0.90

Flat Washer M8

250200158

$1.74

Bushing

277000980

$12.43

Intake Adapter

707800923

$27.66

Norma Clamp

293650096

$3.09

Norma Clamp

293650091

$4.60

200

Primary Chamber Ass'y | Includes 200 to 200c

707801013

$83.05

200b

Cap

293000135

$7.37

200c

Spring Clamp

707801043

$12.91

205

Support

707801000

$11.83

206

Flat Washer 6 mm

234062410

$0.64

207

Hex. Screw Pt K60 X 25

250000980

$1.74

208

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

209

Flat Washer 6 mm

234062410

$0.64

300

Elbow Fitting 90

293710155

$8.45

310

Tridon Gear Clamp

293650173

$2.46

320

Crankcase Hose

707800924

$11.98

330

Tridon Gear Clamp

293650173

$2.46

340

Intake Adapter

707800930

$27.66

350

Norma Clamp

293650091

$4.60

400

Air Inlet Tube

707800752

$41.51

410

Norma Clamp

293650091

$4.60
