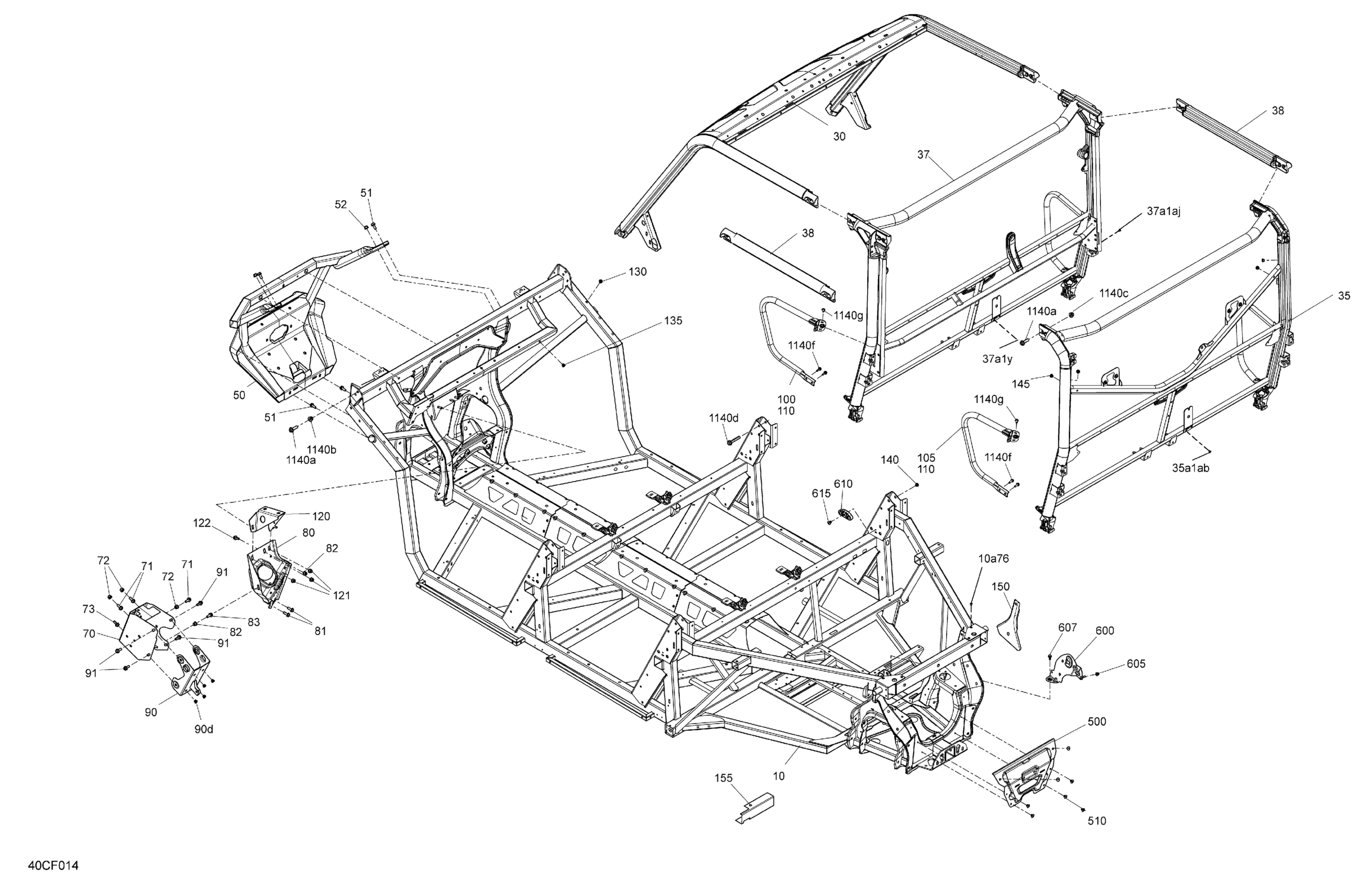

Can-Am Defender MAX - HD7 - BASE - 8ZTD - Compass Green - 62" Width - CALI, 2026 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit | Includes 10 to 10a76

715011180

$2.00

10a76

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Front Cage Service Kit

715011118

$649.99

35

Deep Black, Rear Cage | Includes 35 to 35a1ab

705212629

Unavailable

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.35

37

Deep Black, Central Cage Kit | Includes 37 to 37a1aj This part replaces 705212633.

715011158

$649.99

37a1y

Pop Rivet 3/16 X ,425

293150293

$0.35

37a1aj

Pop Rivet 3/16 X ,425

293150293

$0.35

38

Deep Black, Cage Extension

705209848

$41.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705212644

$59.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Support

705208740

$43.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90d

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Guard

705210921

$43.49

105

Deep Black, LH Rear Guard

705210929

$43.49

110

Deep Black, RH Guard

705210930

$44.49

120

Module Support

705211549

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

140

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

155

Heat Shield

705015496

$2.59

500

Rear Chassis Reinforcement

705207753

$33.99

510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

600

Voltage Regulator Support

710009484

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1140a

Hex. Flange Screw M10 X 35

250000855

$1.89

1140b

Hex. Flange Elastic Nut M10

233201436

$2.11

1140c

Flange Elastic Nut M10

233201466

$3.17

1140d

Hex. Flange Screw M10 X 6

207606046

$4.12

1140f

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1140g

Torx Truss M6X14

250000789

$5.39
