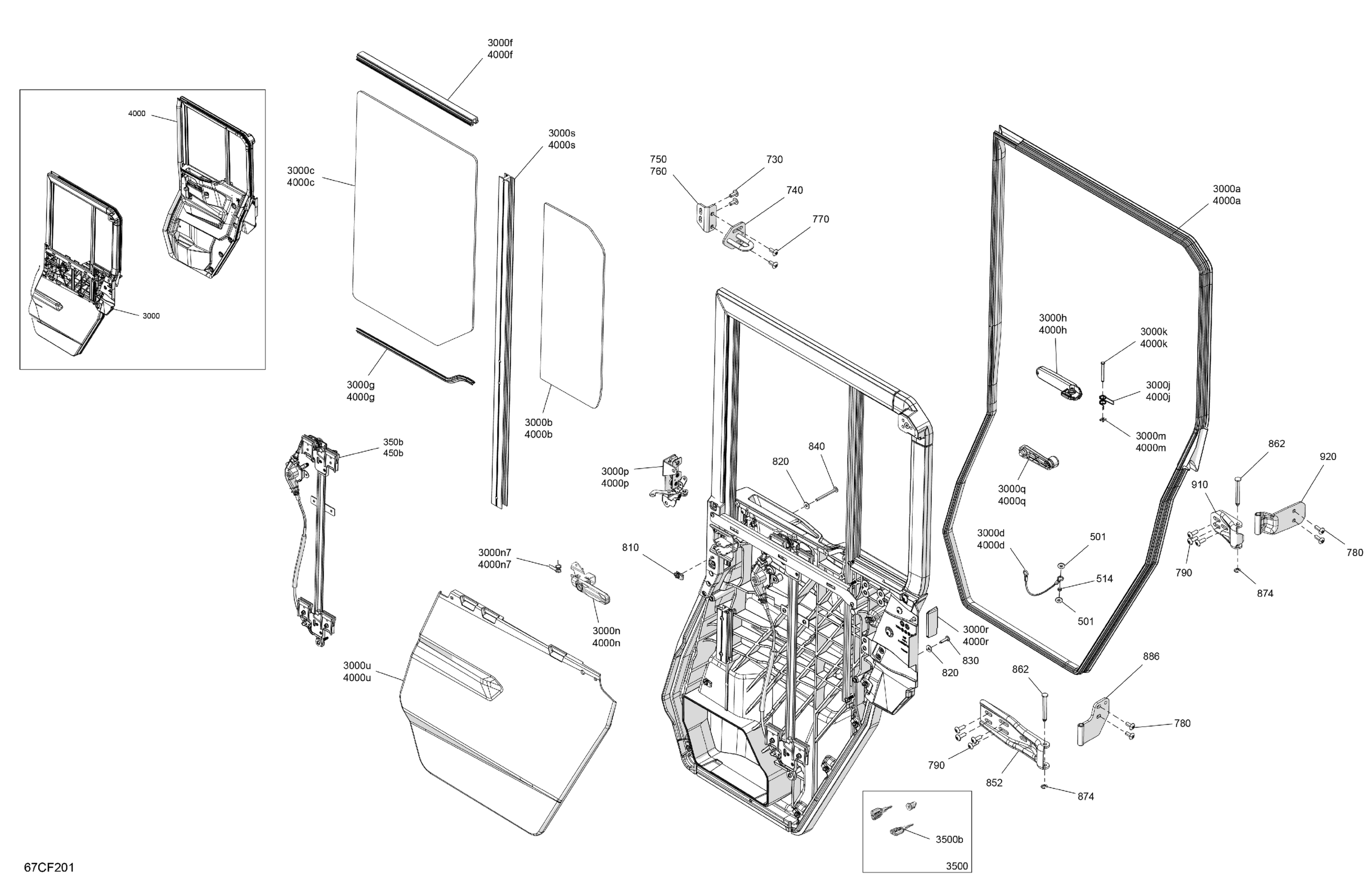

Can-Am Defender MAX - HD11 - XT CAB - 9FTP - Stealth Black - 65" Width - CALI, 2026 Enclosure Cab - Rear Doors Diagram

#

Description
Price

350b

LH Rear Window Regulator

715900996

$485.04

450b

RH Rear Window Regulator

715900997

$485.04

501

Washer M6

250200029

$1.78

508

Torx Screw M6 X 20

250000722

$1.54

514

Bushing

708300737

$4.43

730

Torx Truss M/S M8 X 20

250000953

$2.00

740

Rear Door Stricker

705801024

$48.48

750

LH Striker Support

705800851

$15.64

760

RH Support Striker

705800852

$15.64

770

Torx Truss M/S M8 X 20

250000953

$2.00

780

Torx Truss M/S M8 X 20

250000953

$2.00

790

Torx Truss M8 X 25

250000874

$2.00

810

Panel Nut M6 X 1.0

250100198

$1.99

820

Stainless Steel Flat Washer

234062670

$2.00

830

Torx Truss Screw M6 X 25

250000807

$2.00

840

Torx Screw M6 X 70

250000954

$1.79

852

Door Hinge

705800751

$37.99

862

Hinge Pin

705800781

$0.54

874

Retaining Ring

293370125

$1.91

886

Lower Hinge

705801025

$39.52

910

Upper Door Hinge

705800752

$39.52

920

Upper Door Hinge

705800755

$28.33

3000

LH Rear Rigid Door Ass'y | Includes 3000 to 3000u

705801401

Unavailable

3000a

Gasket

705801314

$73.99

3000b

Rear Door Window

705801373

$199.99

3000c

Sliding Cab Window

705801378

$459.99

3000d

Retaining Cable

705800903

$8.66

3000f

Gasket

705801315

$99.22

3000g

Gasket | Not Shown

705800870

$99.22

3000h

Door Handle

705017152

$12.57

3000j

Handle Spring

705013062

$13.28

3000k

Handle Axle

705207440

$10.55

3000m

External Retaining Ring

705601875

$3.94

3000n

LH Rear Door Handle Ass'y | Includes 350q to 350q7

705018952

$179.07

3000n7

Handle Spring

705013062

$13.28

3000p

LH Latch

705800874

$179.07

3000q

Window Crank

705800871

$104.45

3000r

Trim

705800993

$90.27

3000s

Rear Window Guide Extrusion

705800723

$198.48

3000u

LH Lower Door Panel

705800718

$279.99

3500

Lock Barrel Ass'y | Includes 7550 to 7550b

705801380

$98.48

3500b

Key

710010366

Unavailable

4000

RH Rear Rigid Door Ass'y | Includes 4000 to 4000u

705801402

$1,999.99

4000a

Gasket

705801316

$73.99

4000b

Rear Door Window

705801376

$199.99

4000c

Sliding Cab Window

705801379

$459.99

4000d

Retaining Cable

705800903

$8.66

4000f

Gasket

705801315

$99.22

4000g

Gasket | Not Shown

705800870

$99.22

4000h

Door Handle

705017152

$12.57

4000j

Handle Spring

705013062

$13.28

4000k

Handle Axle

705207440

$10.55

4000m

External Retaining Ring

705601875

$3.94

4000n

RH Rear Door Handle Ass'y | Includes 450q to 450q7

705018953

$175.74

4000n7

Handle Spring

705013062

$13.28

4000p

RH Latch

705800875

$179.07

4000q

Window Crank

705800871

$104.45

4000r

Trim

705800993

$90.27

4000s

Rear Window Guide Extrusion

705800723

$198.48

4000u

RH Lower Door Panel

705800719

$227.99
