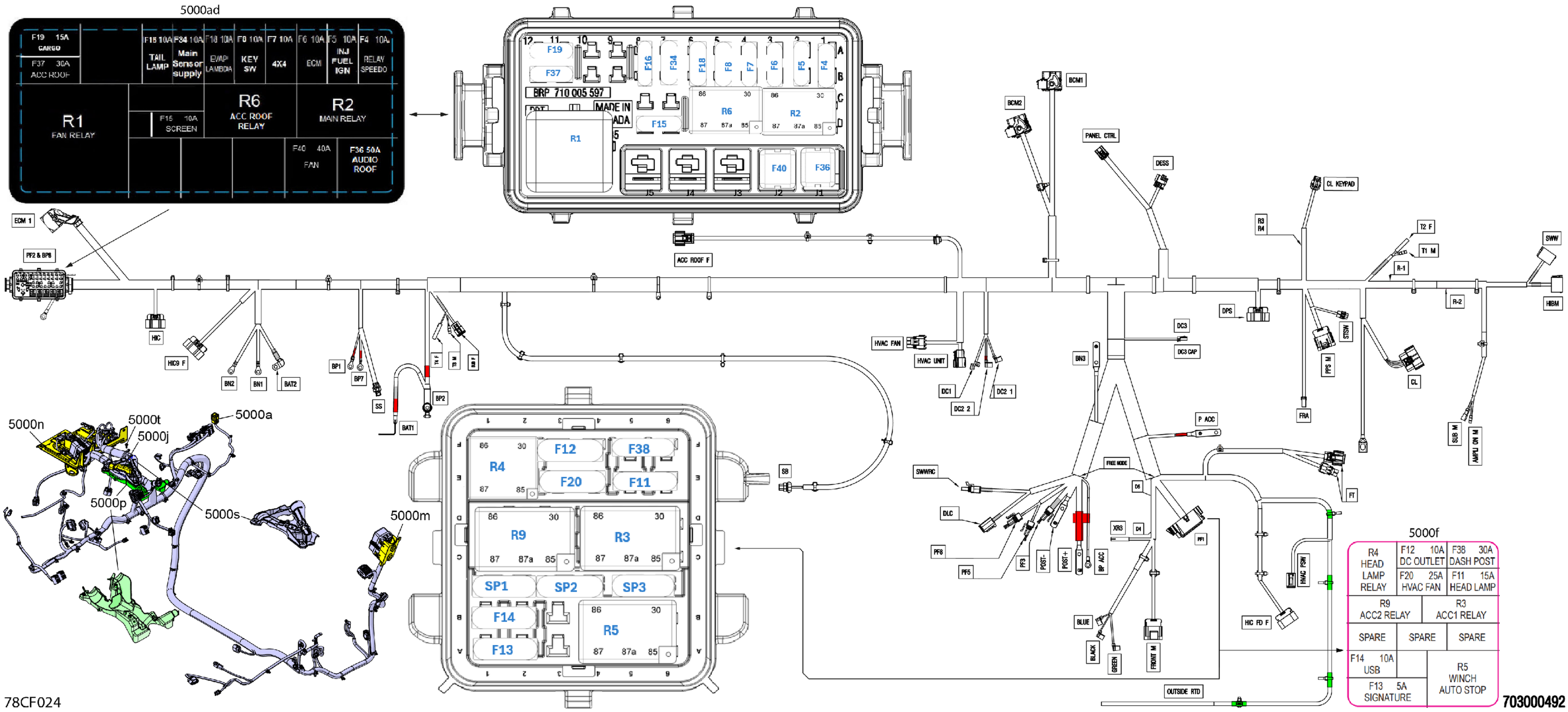

Can-Am Defender MAX - HD11 - XT CAB - 9FTM - Stealth Black - 65" Width - CALI, 2026 Electric - Main Harness - 710010175 Diagram

#

Description
Price

5000

Main Wiring Harness

710010175

$1.00

5000a

Connector Female 4 Cavities

278004473

$15.49

5000c

Molex Cavitie Plug # 19431 | Not Shown

278004475

$7.89

5000f

Decal

710009637

$63.99

5000j

Battery Cable Cap

710009658

$2.99

5000n

Wiring Harness Support

710009443

$19.99

5000m

Fuse Holder Support

710004472

$10.01

5000p

Fuse Holder Support

710009301

$24.49

5000t

Screw PT Type K-50 X 16

250000959

$2.11

5000aa

Terminal | Not Shown

710010076

$3.28

5000q

Black, Dart

293730006

$0.99

5000s

Harness Support Post

710010884

$19.99

5000w

Terminal | Not Shown

710009721

$3.69

5000ad

Decal

710010203

$13.99

5000s

Seal | Not Shown

710010348

$3.19

AMPLI ON M

Insulated Sheath

278001008

$3.28

AMPLI ON M

Female Terminal

278002261

$7.55

BAT2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

BCM1

Cover, 48 positions

710001591

$12.18

BCM1

Connector, Female 28 Cavities

710007625

$63.99

BCM1

Plug

710001592

$2.21

BCM1

Plug

710007617

$15.87

BCM1

Seal Joint

710007619

$6.67

BCM1

Femal Terminal

710007623

$2.39

BCM1

Female Terminal

710001589

$2.21

BCM1

Terminal

710001728

$6.79

BCM1

Female Terminal

710001727

$3.19

BCM2

Cover, 48 positions

710001591

$12.18

BCM2

Connector, Molex Female 28 Cavities

710007624

$79.99

BCM2

Plug

710001592

$2.21

BCM2

Plug

710007617

$15.87

BCM2

Seal Joint

710007619

$6.67

BCM2

Terminal

710001728

$6.79

BCM2

Femal Terminal

710007623

$2.39

BCM2

Female Terminal

710001727

$3.19

BCM2

Female Terminal

710001590

$2.09

BCM2

Female Terminal

710001589

$2.21

BCM2

Femal Terminal

710007658

$5.93

BLACK

Female Terminal

409010300

$4.39

BLUE

Female Terminal

409010300

$4.39

BN1

Terminal

710000913

$5.61

BN2

Terminal

710000913

$5.61

BN3

Terminal

710008716

$21.99

BP ACC

Open Barrel

278000992

$2.21

BP1

Open Barrel

278000992

$2.21

BP2

Cap Battery Cable

710007033

$6.24

BP7

Open Barrel Terminal

278001392

$4.79

BP8

Terminal

515177996

$3.69

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CL

Female Terminal 22 AWG

515178349

$2.29

CL KEYPAD

Female Terminal Housing 3 Circuits

278002387

$8.79

CL KEYPAD

Lock

710005868

$3.49

CL KEYPAD

Wire Seal

710001163

$7.69

CL KEYPAD

Female Terminal

710001164

$8.89

D2

Diode

409012700

$11.12

D4

Diode

409012700

$11.12

D5

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC2 1

Female Terminal

409010300

$4.39

DC2 2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Female Delphi Connector 5 Cavities

710007151

$17.04

DESS

Lock

710001222

$2.09

DESS

Lock

710007243

$4.39

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

ECM1

Cover

515178602

$5.37

ECM1

Housing 56 Circuits

515178618

$24.99

ECM1

Plate

515178604

$4.59

ECM1

Plug

515178599

$3.17

ECM1

Plate

515178603

$4.59

ECM1

Terminal

515178596

$3.72

ECM1

Terminal

515178598

$3.61

ECM1

Terminal

515178666

$4.55

ECM1

Terminal

515178597

$15.36

EVAP

Female Housing, 2 Circuits

515177192

$9.12

EVAP

Lock

710001152

$4.39

EVAP

Wire Seal

710001163

$7.69

EVAP

Female Terminal

710001164

$8.89

FL-1

Fuse Link 41-50AMP

715002538

$21.99

FL-2

Fuse Link 41-50AMP

715002538

$21.99

FP F

Male Housing, 4 Circuits

278002185

$7.90

FP F

Lock

710001222

$2.09

FP F

Lock

710006214

$0.82

FP F

Wire Seal

278002186

$5.50

FP F

Seal

710003153

$0.99

FP F

Female Terminal

278002187

$6.39

FP F

Terminal

710001873

$2.09

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

515175231

$4.39

FRONT M

Housing

710001231

$13.99

FRONT M

Holder | XMR

710002006

$3.19

FRONT M

Lock 6 Positions

710005296

$1.09

FRONT M

Cap

710001225

$9.19

FRONT M

Seal Wire

710001332

$3.28

FRONT M

Terminal

710001223

$3.19

FT

Housing

710010265

$14.49

FT

Seal | Not Shown

710010348

$3.19

FT

Seal

710010268

$1.16

FT

Seal

710010270

$1.16

FT

Terminal

710010266

$3.69

FT

Terminal

710010267

$3.28

GREEN

Female Terminal

409010300

$4.39

HIBM

Label

710006074

$0.01

HIBM

Housing

710002000

$7.90

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710006333

$6.79

HIC

Lock

710001222

$2.09

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC FD F

Housing

710001232

$14.29

HIC FD F

Lock

710001222

$2.09

HIC FD F

Lock 6 Positions

710005296

$1.09

HIC FD F

Seal

710001233

$3.19

HIC FD F

Terminal

710001229

$3.19

HIC9 F

Female Housing

710004989

$7.41

HIC9 F

Lock | PACKARD 15430900

710005098

$2.09

HIC9 F

Lock

710001222

$2.09

HIC9 F

Plug

710002075

$3.09

HIC9 F

Seal

710003153

$0.99

HIC9 F

Wire Seal

278002186

$5.50

HIC9 F

Terminal

710001873

$2.09

HIC9 F

Female Terminal

278002187

$6.39

HIC9 F

Terminal

710001869

$2.85

HVAC FAN

Male Housing, 3 Circuits

278000273

$9.59

HVAC FAN

Wire Seal

278000218

$4.39

HVAC FAN

Wire Seal

278001065

$7.69

HVAC FAN

Female Terminal

409007300

$0.45

HVAC FAN

Female Terminal

278000223

$3.19

HVAC PSW

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HVAC PSW

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HVAC PSW

Female Terminal

710005438

$4.29

HVAC PSW

Female Terminal

710005439

$4.44

HVAC UNIT

Female Housing 20 Circuits

278002858

$22.49

HVAC UNIT

Sealing Cap

278002860

$1.79

HVAC UNIT

Female Terminal

515178018

$1.19

HVAC UNIT

Female Terminal 22 AWG

515178349

$2.29

OUTSIDE RTD

Temperature Sensor

710007683

$43.99

P ACC

Battery Cable Cap

710009658

$2.99

P ACC

Terminal | Not Shown

710009721

$3.69

PANEL CTRL

Molex Terminal

710010544

$8.39

PANEL CTRL

Delphi Terminal

710010546

$3.99

PANEL CTRL

Delphi Terminal

710010545

$3.99

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

710000048

$7.69

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1

Female Terminal

515177177

$6.49

PF1 LABEL STD

Decal

710009637

$63.99

PF1-F11

Little Fuse, 15 Ampere

710000745

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F13

Little Fuse, 5 Amperes

710000742

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F20

Little Fuse, 25 Ampere

278002389

$4.55

PF1-F38

Little Fuse, 30 Amperes

710000747

$8.49

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R4

Relay

715900824

$21.99

PF1-R9

Relay, 30 AMP

515176774

$21.99

PF1-SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF1-SP2

Little Fuse, 15 Ampere

710000745

$8.49

PF1-SP3

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Cover

710007491

$17.99

PF2

Fusebox Ass'y

710005623

$49.49

PF2

Fuse Holder Support

710004472

$10.01

PF2

Cap

710001631

$1.09

PF2

Seal Plug

278002880

$7.86

PF2

PLUG - Call your local BRP dealership

710002633

Unavailable

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

710000048

$7.69

PF2

Wire Seal

278001065

$7.69

PF2

Seal Joint

710003134

$1.39

PF2

Seal Joint

710003132

$0.90

PF2

Female Terminal

710000890

$4.55

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Terminal

710001636

$3.19

PF2

F Terminal

710003125

$3.39

PF2

Terminal

710001630

$2.09

PF2

Terminal

710008508

$4.55

PF2 LABEL PWM

Decal

710010203

$13.99

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F19

Little Fuse, 15 Ampere

710000745

$8.49

PF2-F34

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F36

Fuse, 50 AMP

710001048

$5.08

PF2-F37

Little Fuse, 30 Amperes

710000747

$8.49

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F40

Fuse, 40 AMP

710001047

$11.80

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-R1

50 Amps Relay

710003143

$13.76

PF2-R2

Relay, 30 AMP

515176774

$21.99

PF2-R6

Relay, 30 AMP

515176774

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F1

Fuse

710001613

$8.79

PF5

Fuse Holder

278001325

$8.79

PF5

Female Terminal

710000113

$6.99

PF5-F1

Fuse, 20 Amperes

409003900

$3.28

PF8

Fuse Holder

278001325

$8.79

PF8

Female Terminal

710000113

$6.99

PF8-F1

Fuse, 20 Amperes

409003900

$3.28

POST-

Terminal | Not Shown

710010076

$3.28

POST+

Terminal | Not Shown

710010076

$3.28

PPS M

Housing

710001231

$13.99

PPS M

Holder | XMR

710002006

$3.19

PPS M

Lock 6 Positions

710005296

$1.09

PPS M

Seal

710001233

$3.19

PPS M

Terminal

710001224

$3.19

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Seal Wire

710001153

$2.21

SS

Female Terminal

710001164

$8.89

STSW

Wire Seal

710000402

$4.55

STSW

Female Terminal

409012100

$4.55

SUB CAP

Male Housing

515175666

$15.49

SUB CAP

Male Lock, 3 Circuits

409207600

$3.19

SUB CAP

Sealing Cap

293000052

$3.19

SUB F

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

SUB F

Female Lock, 3 Circuits

515175676

$5.39

SUB F

Amphenol Female Terminal

710010729

$3.69

SUB M

Housing

515177178

$15.28

SUB M

Housing

710001853

$15.29

SWW

Housing

710002000

$7.90

SWW

Female Terminal

710005491

$2.09

SWWRC

Male Housing, 3 Circuits

278000273

$9.59

SWWRC

Wire Seal

278001065

$7.69

SWWRC

Female Terminal

278000223

$3.19

T1 M

Insulated Sheath

278001008

$3.28

T1 M

Male Terminal

278000230

$4.39

T2 F

Insulated Sheath

278001007

$3.58

T2 F

Female Terminal | DS 650 X

278001009

$3.19

T3 M

Insulated Sheath

278001008

$3.28

T3 M

Male Terminal

278000230

$4.39

T4 F

Insulated Sheath

278001007

$3.58

T4 F

Female Terminal | DS 650 X

278001009

$3.19

XR3

Insulated Sheath

278000770

$7.90

XR3

Female Terminal

710000421

$6.11
