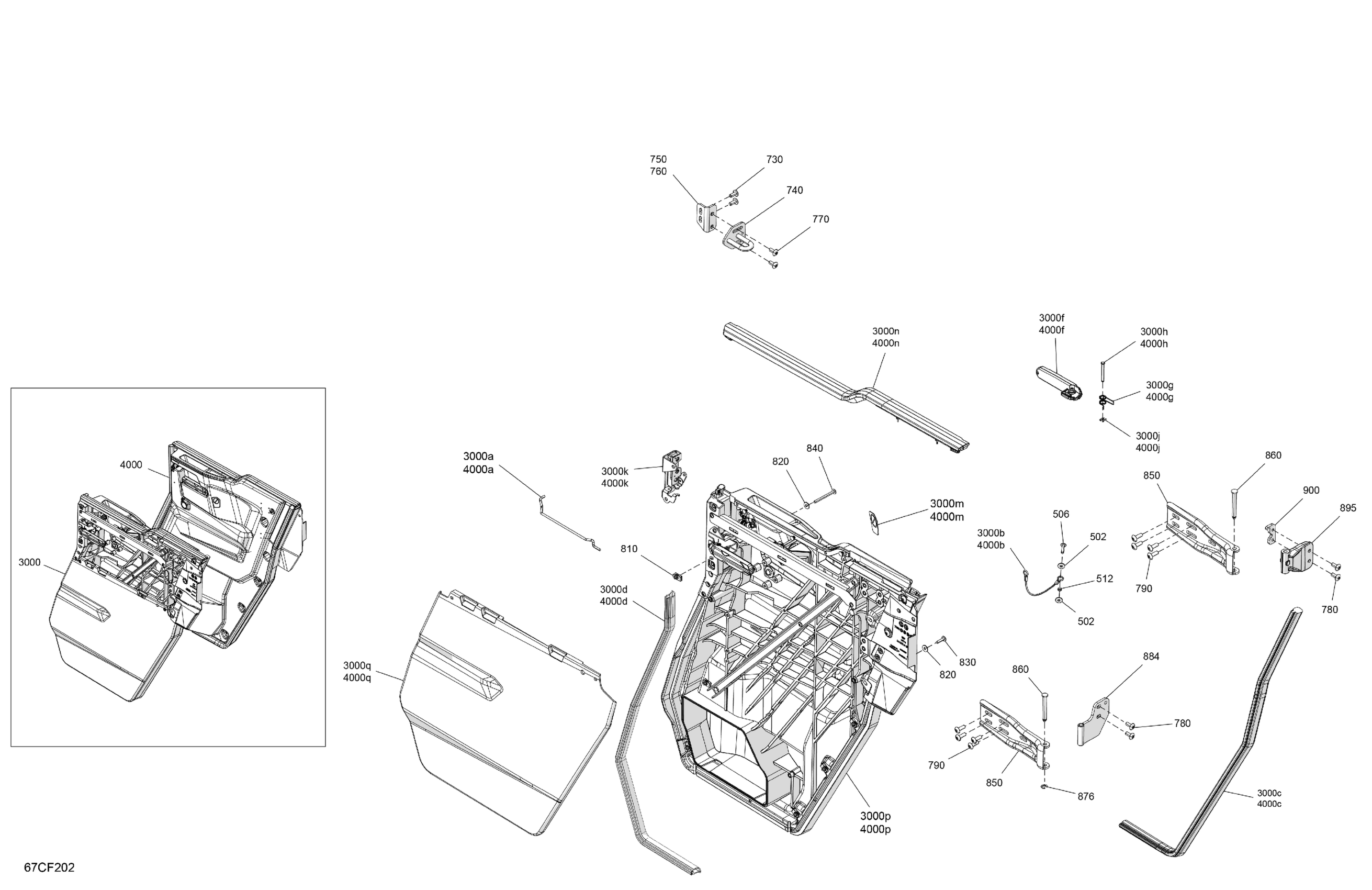

Can-Am Defender MAX - HD11 - XMR - 8PTC - Dark Wildland Camo - 65" Width, 2026 Enclosure Cab - Rear Doors Diagram

Description

Price

502

Washer M6

250200029

$1.78

506

Torx Screw M6 X 20

250000722

$1.54

512

Bushing

708300737

$4.43

730

Torx Truss M/S M8 X 20

250000953

$2.00

740

Rear Door Stricker

705801024

$48.48

750

LH Striker Support

705800851

$15.64

760

RH Support Striker

705800852

$15.64

770

Torx Truss M/S M8 X 20

250000953

$2.00

780

Torx Truss M/S M8 X 20

250000953

$2.00

790

Torx Truss M8 X 25

250000874

$2.00

810

Panel Nut M6 X 1.0

250100198

$1.99

820

Stainless Steel Flat Washer

234062670

$2.00

830

Torx Truss Screw M6 X 25

250000807

$2.00

840

Torx Screw M6 X 70

250000954

$1.79

850

Door Hinge

705800751

$37.99

860

Hinge Pin

705800781

$0.54

876

Retaining Ring

293370125

$1.91

884

Lower Hinge

705801025

$39.52

895

Upper Door Hinge

705800802

$18.63

900

Support

705210255

$17.13

3000

LH Rear Half Rigid Door | Includes 3050 to 3050q

705801298

$1,709.99

3000a

Guide Pin

705801454

$40.27

3000b

Retaining Cable

705800903

$8.66

3000c

Gasket

705801382

$213.40

3000d

Gasket

705801456

$52.21

3000f

Door Handle

705017152

$12.57

3000g

Handle Spring

705013062

$13.28

3000h

Handle Axle

705207440

$10.55

3000j

External Retaining Ring

705601875

$3.94

3000k

LH Rear Door Latch

705801466

$179.07

3000m

LH Door Pictogram Label

704909996

Unavailable

3000n

LH Upper Door Trim

705800915

$142.51

3000p

LH Interior Door Panel

705801385

$952.21

3000q

LH Lower Door Panel

705800718

$279.99

4000

RH Rear Half Rigid Door | Includes 3150 to 3150q

705801299

$1,709.99

4000a

Guide Pin

705801455

$40.27

4000b

Retaining Cable

705800903

$8.66

4000c

Gasket

705801382

$213.40

4000d

Gasket

705801456

$52.21

4000f

Door Handle

705017152

$12.57

4000g

Handle Spring

705013062

$13.28

4000h

Handle Axle

705207440

$10.55

4000j

External Retaining Ring

705601875

$3.94

4000k

RH Rear Door Latch

705801467

$179.07

4000m

RH Door Pictogram Label

704909998

Unavailable

4000n

RH Upper Door Trim

705800916

$142.51

4000p

RH Interior Door Panel

705801387

$952.21

4000q

RH Lower Door Panel

705800719

$227.99
