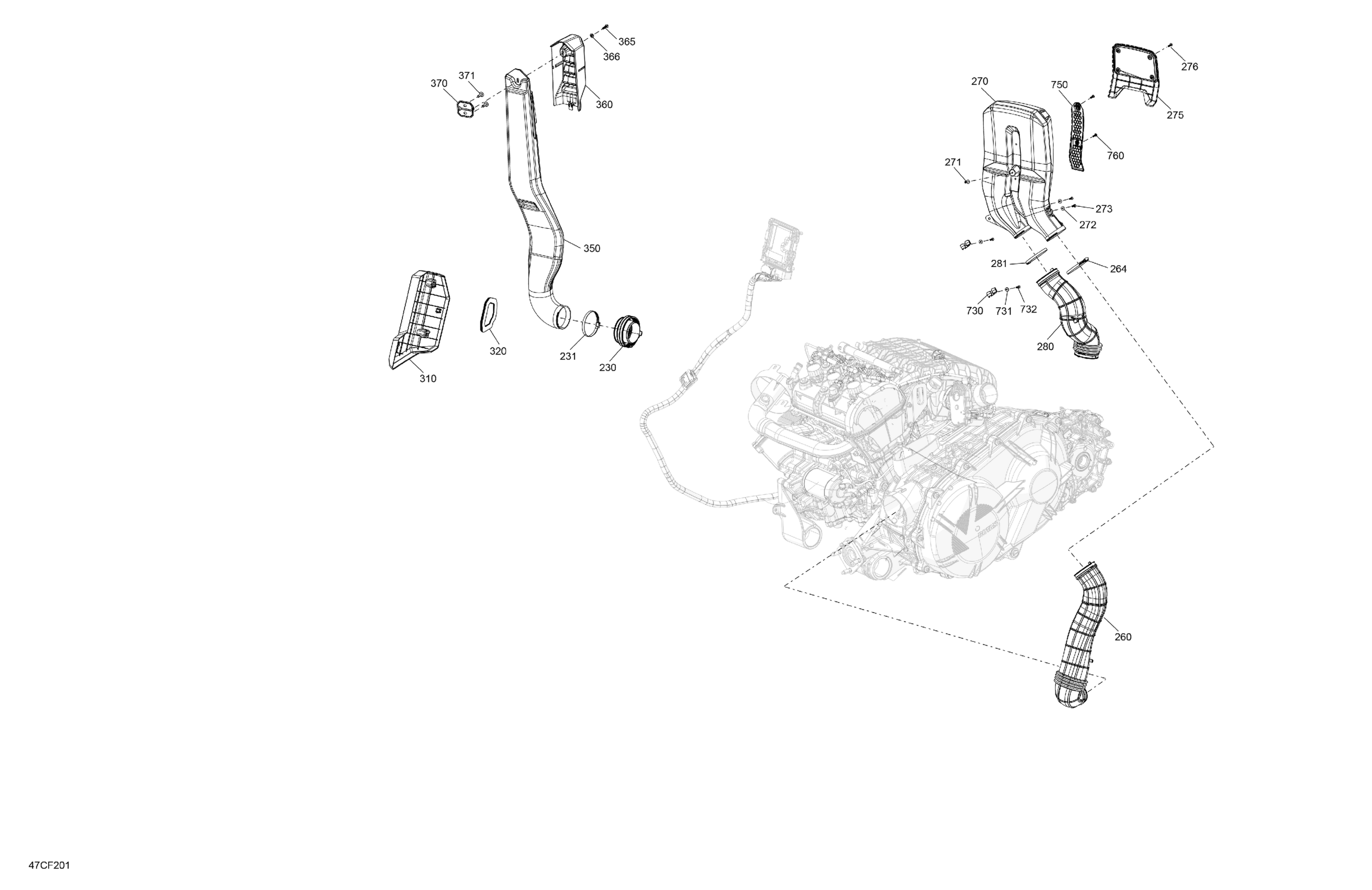

Can-Am Defender MAX - HD11 - XMR - 8PTC - Dark Wildland Camo - 65" Width, 2026 Body - Snorkel Diagram

Description

Price

230

Adapter

706600441

$46.12

231

Norma Gear Clamp

514052983

$11.43

260

CVT Cooling Duct

706600458

$55.35

264

Norma Gear Clamp

514052983

$11.43

270

CVT Cooling Duct

706600457

$55.35

271

Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307.

293150307

$2.06

272

Washer M5

250200025

$0.61

273

Torx Screw Truss Head K50X20 T20

250000760

$1.74

275

Ventilation Cover

706600471

$50.74

276

Torx Screw Truss Head K50X20 T20

250000760

$1.74

280

Adapter

706600456

$46.12

281

Norma Gear Clamp

514052983

$11.43

310

RH Cover

706600435

$41.51

320

Plug

706600464

$4.60

350

Pipe In

706600459

$64.58

360

Air Inlet Grille

706600462

Unavailable

365

Screw Pt Hex. K60 X 25

250001378

$6.45

366

Retaining Ring

549011524

$1.99

370

Cap

705801451

$3.08

371

Torx Truss M8 X 25

250000874

$1.74

730

Fastener

709001652

$4.60

731

Washer M5

250200025

$0.61

732

Torx Screw Truss Head K50X20 T20

250000760

$1.74

750

Ventillation Cover

707003662

$50.74

760

Torx Screw Truss Head K50X20 T20

250000760

$1.74
