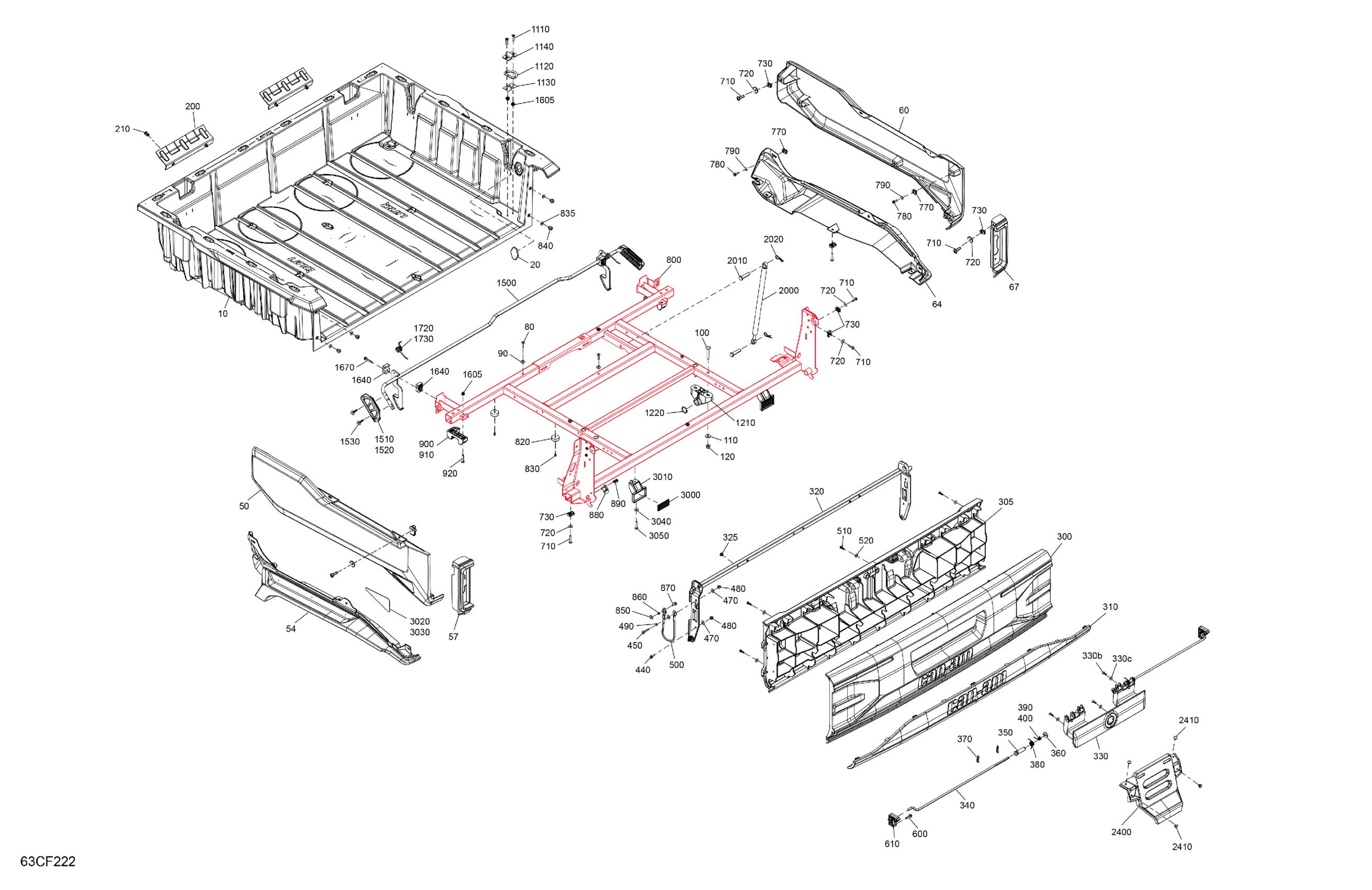

Can-Am Defender MAX - HD11 - XMR - 8PTC - Dark Wildland Camo - 65" Width, 2026 Body - Cargo Diagram

#

Description
Price

10

Open Carrier

715011298

$553.82

20

12V Power Outlet Cap

708305056

$7.60

50

Wildland Camo, LH Open Carrier Trim Water Dip

708304623

$253.82

54

LH Rear Mud Guard

708304815

$70.74

57

LH Taillight Trim

708304690

$19.97

60

Wildland Camo, RH Open Carrier Trim Water Dip

708304624

$253.82

64

RH Rear Mud Guard

708304816

$70.74

67

RH Taillight Trim

708304691

$19.97

80

Torx Truss Screw M6 X 25

250000807

$1.74

90

Stainless Steel Flat Washer

234062670

$1.74

100

Carriage Bolt M8 X 60

207786044

$10.54

110

Stainless Steel Flat Washer

234082670

$1.74

120

Hex. Elastic Flange Nut M8

233281416

$1.25

200

Deflector

708304610

$15.22

210

Tuflok Plastic Rivet

293150230

$1.21

300

Tailgate Panelext

708304429

$147.66

305

Interior Tailgate Panel

708304431

$341.51

310

Stealth Black, Lower Tailgate Trim

708305161

$110.74

320

Tailgate Support

708304434

$341.51

325

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Tailgate Handle Ass'y | Includes 330 to 330c

708304625

$36.89

330b

Torx Screw Truss Head K50X20 T20

250000760

$1.74

330c

Washer M5

250200025

$0.61

340

Latch Rod

708304570

$9.23

350

Bushing Hinge

708304564

$3.08

360

Washer

708301653

$2.31

370

Hairpin Cotter

269800431

$1.00

380

Spring

705009468

$4.62

390

Spring

705009470

$12.91

400

Spring

705009471

$12.91

440

Hex. Flange Screw M6 X 25

207662554

$1.48

450

Hex. Flange Screw M6 X 35

207663554

$1.74

470

Stainless Steel Flat Washer

234062670

$1.74

480

Hex. Flange Elastic Nut M6

233261494

$1.26

490

Bushing

708300737

$4.62

500

Cable

708301491

$32.28

510

Torx Screw Truss Head K50X20 T20

250000760

$1.74

520

Washer M5

250200025

$0.61

600

Hex. Flange Screw M6 X 25

207662554

$1.48

610

Latch Stopper

708304062

$9.29

710

Torx Truss Screw M6 X 25

250000807

$1.74

720

Stainless Steel Flat Washer

234062670

$1.74

730

Panel Nut M6 X 1.0

250100208

$1.07

770

Panel Nut M6 X 1.0

250100208

$1.07

780

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

790

Stainless Steel Flat Washer

234062670

$1.74

800

Open Carrier Frame

708304465

$299.99

820

Rubber Stopper

708304601

$2.31

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

835

Flat Washer

250200039

$0.72

840

Rubber Bumper

293830005

$5.33

850

Stainless Steel Flat Washer

234062670

$1.74

860

Bushing

708300737

$4.62

870

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

880

Clip

708304661

$10.14

890

Tuflok Plastic Rivet

293150230

$1.21

900

Stopper

708304535

$3.98

910

Stopper

708304536

$3.98

920

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$1.74

1120

D-Ring

708302990

$4.98

1130

Tie-Down Ring Spring

708302991

$2.75

1140

Tie-Down Ring Bracket

708302992

$2.75

1210

Pivot Support

708304537

$16.89

1220

O-Ring

293300131

$5.52

1500

Latch Lever

708304485

$133.82

1510

LH Latch Handle

708304483

$5.38

1520

RH Latch Handle

708304484

$5.38

1530

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

1605

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1640

Ring Half

708304823

$5.11

1670

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

1720

LH Torsion Spring

708305319

$3.85

1730

RH Torsion Spring

708305320

$3.85

2000

Gas Shock Absorber

715007129

$50.74

2010

Pin Clevis

250400098

$5.52

2020

Hair Pin

414575600

$1.51

2400

Trailer Warning Label

715011284

$57.66

2410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

3000

Red Reflector

520001820

$17.66

3010

Reflector Support

708304813

$18.43

3020

Red, LH Reflector

708304957

$12.08

3030

Red, RH Reflector

708304958

$12.08

3040

Stainless Steel Flat Washer

234062670

$1.74

3050

Torx Truss Screw M6 X 25

250000807

$1.74
