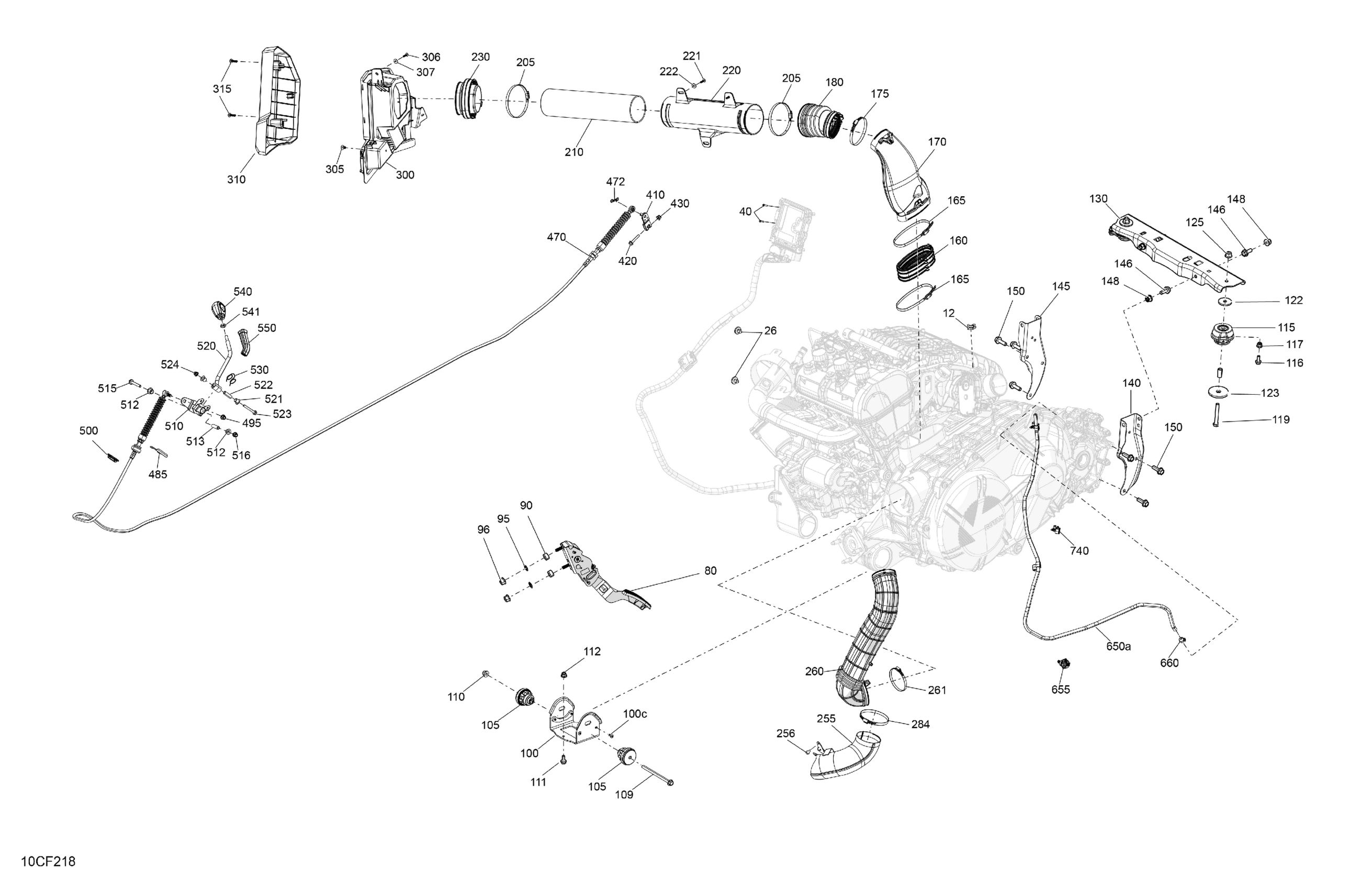

Can-Am Defender MAX - HD11 - XMR - 8PTC - Dark Wildland Camo - 65" Width, 2026 Engine - System Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$14.90

26

Mount Dart

710008294

$0.99

40

Hex. Flange Screw K40 X 16

241141660

$1.43

80

Accelerator Pedal

707003503

$265.64

90

Bushing

707000848

$1.04

95

Push Nut

250100031

$6.66

96

Hex. Flange Nut M8

233081416

$1.87

100

Engine Support Ass'y | Includes 100 to 100c

707003797

$13.88

100c

Pop Rivet 3/16 X ,425

293150293

$0.30

105

Damper

707003286

$34.30

109

Hex. Flange Screw M10 X 135

230603546

$6.99

110

Flange Elastic Nut M10

233201466

$3.01

111

Hex. Flange Screw M6 X 20

207662054

$0.96

112

Hex. Flange Elastic Nut M6

233261494

$1.45

115

Vibration Damper

707003667

$54.45

116

Hex. Flange Screw M6 X 20

207662054

$0.96

117

Hex. Flange Elastic Nut M6

233261494

$1.45

119

Hex. Flange Screw M8 X 70

207687044

$7.01

122

Flat Washer M8

250200158

$2.00

123

Flat Washer M8

250200180

$2.06

125

Hex. Flange Nut M8

233081416

$1.87

130

Support

707003664

$27.58

140

LH Rear Engine Support

707003681

$13.87

145

RH Rear Engine Support

707003340

$15.64

146

Hex Screw Washer Head M8 X 20

207582054

$3.00

148

Hex. Elastic Flange Nut M8

233281416

$1.43

150

Hex Screw Washer Head M8 X 20

207582054

$3.00

160

Adapter

706600474

$18.63

165

Butterfly Gear Clamp

293650324

$10.39

170

CVT Cooling Duct

706600475

$52.96

175

Gear Clamp

293650374

Unavailable

180

Adapter

706600476

$18.63

205

Butterfly Gear Clamp

293650324

$10.39

210

Acoustic Insulation

706600515

$69.37

220

CVT Cooling Duct

706600440

$52.96

221

Torx Screw K50 X 25

250001110

$1.48

222

Washer M5

250200025

$0.70

230

Adapter

706600441

$41.01

255

Ventilation Duct Weld

707003532

$52.96

256

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

260

CVT Cooling Duct

706600458

$52.96

261

Gear Clamp

293650374

Unavailable

284

Gear Clamp

293650374

Unavailable

300

Air Inlet Box

706600431

$39.52

305

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

306

Torx Screw K50 X 25

250001110

$1.48

307

Washer M5

250200025

$0.70

310

RH Cover

706600435

$40.27

315

Hex. Screw Pt K60 X 25

250000980

$2.00

410

Lever Weld

707003312

$18.63

420

Hex. Flange Screw M6 X 35

207663554

$2.00

430

Hex. Flange Elastic Nut M6

233261494

$1.45

470

Shift Lever Cable

707003284

$63.40

472

Hairpin Cotter

250400109

$4.89

485

U Clip

707003450

$4.75

495

Hex. Elastic Flange Nut M8

233281416

$1.43

500

Grommet

293720109

$7.81

510

Lower Gearshift Lever

707003369

$13.99

512

Venturi Bushing

293900001

$7.04

513

Bushing

707003445

$10.30

515

Hex. Flange Screw M8 x 60

207686044

$2.94

516

Hex. Elastic Flange Nut M8

233281416

$1.43

520

Shift Lever

707003288

$22.36

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6

233261494

$1.45

530

Lever Arm Spring

707000750

$2.68

540

Shift Lever Tip

707003491

$7.57

541

Hexagonal Jam Nut M8

232180461

$7.09

550

Lever Trim

707003421

$11.33

650a

Hose 6.35MM ID

219704534

$23.10

655

Support Cable

293750083

$2.00

660

Oetiker Clamp

293650042

$1.61

740

Fastener

709001653

$4.19
