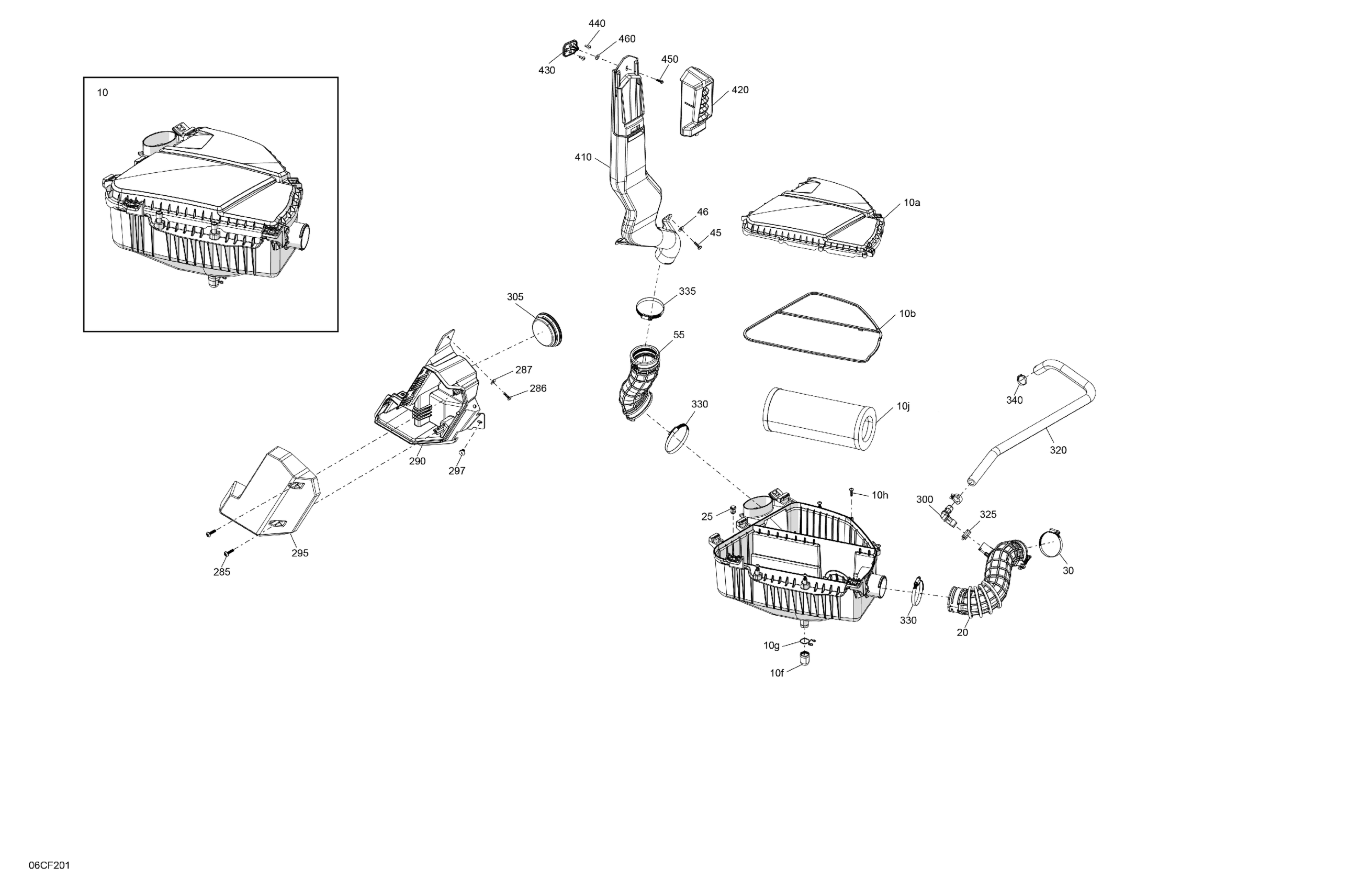

Can-Am Defender MAX - HD11 - XMR - 8PTC - Dark Wildland Camo - 65" Width, 2026 Engine - Air Intake Diagram

Description

Price

Intake Silencer Ass'y

707801144

$165.64

10a

Intake Silencer Cover

707801074

$30.57

10b

Intake Silencer Gasket

707801077

$17.13

10f

Cap

293000135

$6.99

10g

Spring Clamp

707801043

$12.30

10h

Torx Screw K50 X 25

250001110

$1.48

10j

Air Filter

715900422

$49.22

Intake Duct

707801068

$39.52

Tuflok Plastic Rivet

293150230

$1.39

Norma Gear Clamp

293650118

$11.18

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Washer M5

250200025

$0.70

Intake Duct Silencer

707801142

$39.52

285

Hex. Screw Pt K60 X 25

250000980

$2.00

286

Torx Screw Truss Head K50X20 T20

250000760

$2.00

287

Washer M5

250200025

$0.70

290

Air Inlet Box

707801102

$39.52

295

LH Cover

707801097

$41.01

297

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

300

Elbow Fitting 90

293710155

$7.72

305

Plug

707002217

$2.68

320

Formed Crankcase Hose

707801078

$35.79

325

Norma Spring Clamp

293650243

$2.54

330

Gear Clamp

293650366

$4.46

335

Gear Clamp

293650366

$4.46

340

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

410

Snorkel

706600472

$55.19

420

Air Inlet Grille

706600462

$17.88

430

Cap

705801451

$2.99

440

Torx Truss M8 X 25

250000874

$2.00

450

Screw Pt Hex. K60 X 25

250001378

$5.90

460

Retaining Ring

549011524

$1.96
