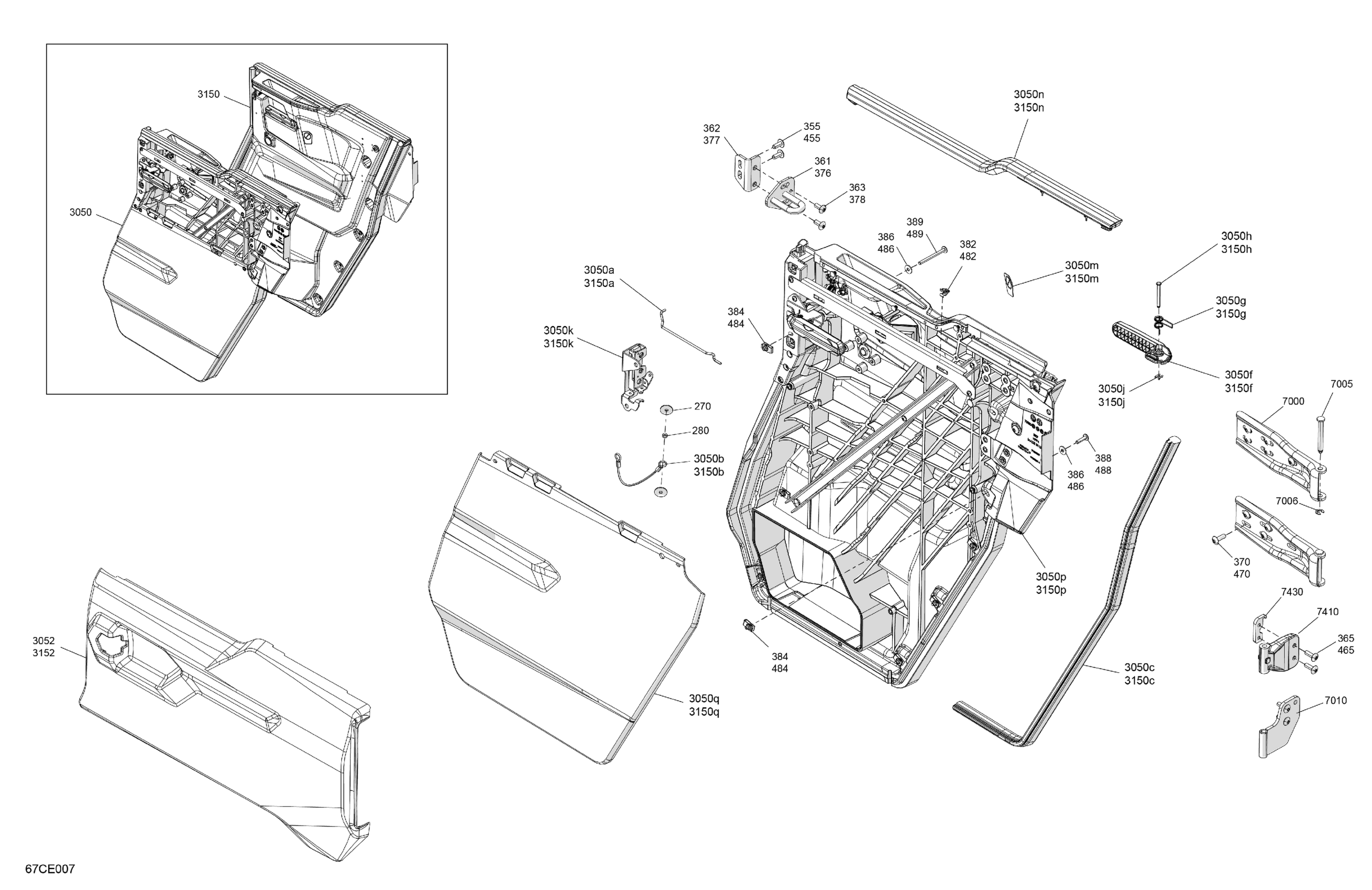

Can-Am Defender Max - HD10 - XMR - 8PSC - Wildland Camo - 67" Width - 2025 Enclosure Cab - Rear Doors Diagram

#

Description
Price

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

315

Torx Truss M8 X 25

250000874

$2.11

355

Torx Truss M/S M8 X 20

250000953

$2.11

361

Rear Door Stricker

705801024

$53.99

362

LH Striker Support

705800851

$18.99

363

Torx Truss M/S M8 X 20

250000953

$2.11

365

Torx Truss M/S M8 X 20

250000953

$2.11

370

Torx Truss M8 X 25

250000874

$2.11

376

Rear Door Stricker

705801024

$53.99

377

RH Support Striker

705800852

$18.99

378

Torx Truss M/S M8 X 20

250000953

$2.11

382

Clip

517306478

$1.09

384

Panel Nut M6 X 1.0

250100198

$2.11

386

Stainless Steel Flat Washer

234062670

$2.11

388

Torx Truss Screw M6 X 25

250000807

$2.11

389

Torx Screw M6 X 70

250000954

$1.90

415

Torx Truss M8 X 25

250000874

$2.11

455

Torx Truss M/S M8 X 20

250000953

$2.11

465

Torx Truss M/S M8 X 20

250000953

$2.11

470

Torx Truss M8 X 25

250000874

$2.11

482

Clip

517306478

$1.09

484

Panel Nut M6 X 1.0

250100198

$2.11

486

Stainless Steel Flat Washer

234062670

$2.11

488

Torx Truss Screw M6 X 25

250000807

$2.11

489

Torx Screw M6 X 70

250000954

$1.90

3050

LH Rear Half Rigid Door | Includes 3050 to 3050q

705801298

$3,399.99

3050a

Guide Pin

705801454

$44.99

3050b

Retaining Cable

705800903

$10.49

3050c

Gasket

705801382

$239.99

3050f

Door Handle

705017152

$15.49

3050g

Handle Spring

705013062

$14.99

3050h

Handle Axle

705207440

$14.49

3050j

External Retaining Ring

705601875

$4.09

3050k

LH Rear Door Latch

705801466

$289.99

3050m

LH Door Pictogram Label

704909996

Unavailable

3050n

LH Upper Door Trim

705800915

$159.99

3050p

LH Interior Door Panel

705801385

$1,069.99

3050q

LH Lower Door Panel

705800718

$279.99

3052

Wildland Camo, LH Rear Door Panel

705801346

$274.99

3150

RH Rear Half Rigid Door | Includes 3150 to 3150q

705801299

$1,709.99

3150a

Guide Pin

705801455

$44.99

3150b

Retaining Cable

705800903

$10.49

3150c

Gasket

705801382

$239.99

3150f

Door Handle

705017152

$15.49

3150g

Handle Spring

705013062

$14.99

3150h

Handle Axle

705207440

$14.49

3150j

External Retaining Ring

705601875

$4.09

3150k

RH Rear Door Latch

705801467

$289.99

3150m

RH Door Pictogram Label

704909998

Unavailable

3150n

RH Upper Door Trim

705800916

$159.99

3150p

RH Interior Door Panel

705801387

$1,069.99

3150q

RH Lower Door Panel

705800719

$239.99

3152

Wildland Camo, RH Rear Door Panel

705801347

$274.99

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7410

Upper Door Hinge

705800802

$20.99

7430

Support

705210255

$20.99
