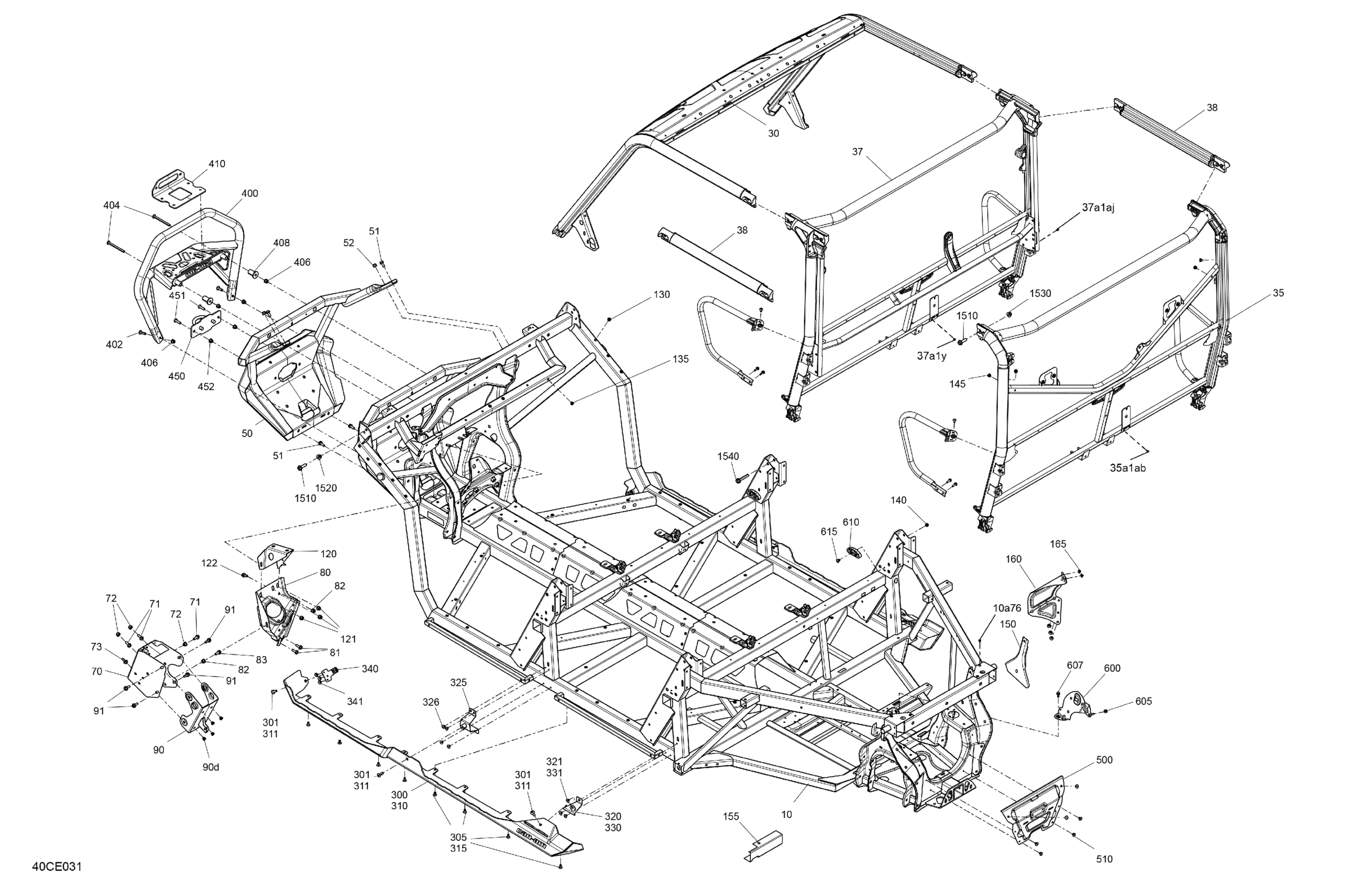

Can-Am Defender Max - HD10 - XMR - 8PSC - Wildland Camo - 67" Width - 2025 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

Unavailable

10a76

Pop Rivet 3/16 X ,425

293150293

$0.26

30

Front Cage Service Kit

715008358

$649.99

35

Rear Cage Service Kit

715010336

$649.99

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.26

37

Deep Black, Central Cage Kit | Includes 37 to 37a1aj

715010136

$649.99

37a1y

Pop Rivet 3/16 X ,425

293150293

$0.26

37a1aj

Pop Rivet 3/16 X ,425

293150293

$0.26

38

Deep Black, Cage Extension

705209848

$41.99

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705212644

$50.74

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

$65.35

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

$1.25

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

90d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

120

Module Support

705211549

$28.43

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.75

155

Heat Shield

705015496

$2.75

160

Heat Shield

707002709

$49.97

165

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

300

Deep Black, LH Guard Panel

705208715

$289.97

301

Torx Truss M8 X 25

250000874

$1.74

305

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

310

Deep Black, RH Guard Panel

705208716

$289.97

311

Torx Truss M8 X 25

250000874

$1.74

315

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

320

LH Guard Support

705211575

$46.12

321

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

325

Support Guard

705207220

$19.20

326

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

330

RH Guard Support

705211576

$41.51

331

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

340

Front Guard Support

705208661

$4.95

341

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

400

Deep Black, Front Bumper

715006143

$364.58

402

Torx Screw M8 X 30

250000886

$1.74

404

Torx Truss M/S M8 x X 100

250001106

$5.53

406

Hex. Elastic Flange Nut M8

233281416

$1.25

408

Spacer

705207754

$12.08

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$55.35

450

Can-Am Red, Front Tow Hook

705211623

$27.66

451

Torx Screw M8 X 30

250000886

$1.74

452

Hex. Elastic Flange Nut M8

233281416

$1.25

500

Rear Chassis Reinforcement

705207753

$31.51

510

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

600

Voltage Regulator Support

710009484

Unavailable

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.66

615

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

$1.74

1530

Flange Elastic Nut M10

233201466

$2.63

1540

Hex. Flange Screw M10 X 6

207606046

$3.38
