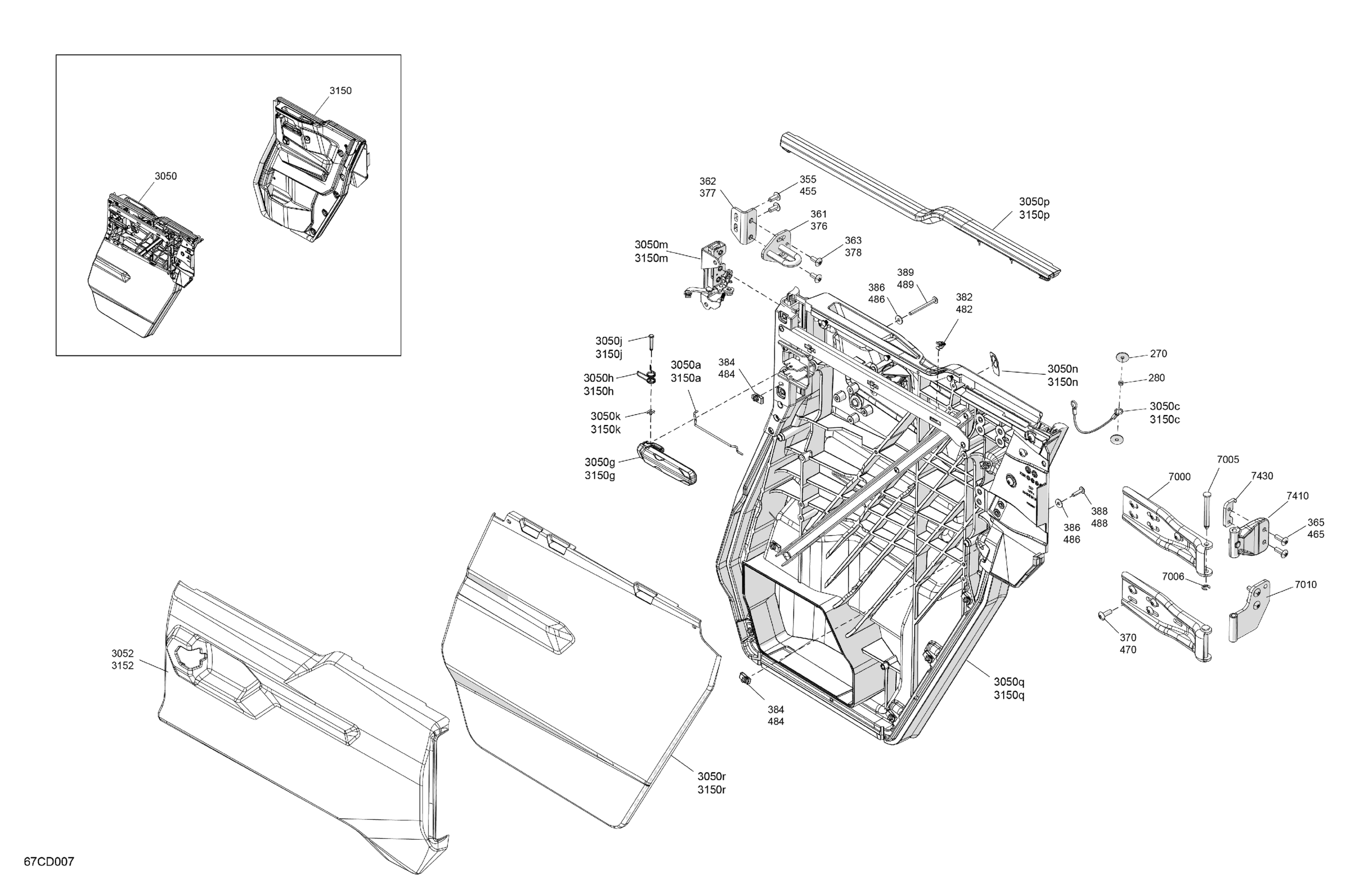

Can-Am Defender MAX HD10 - XMR - 8PRA - Hyper Silver - 67" Width, 2024 Enclosure Cab - Rear Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.83

280

Bushing

708300737

$4.62

355

Torx Truss M/S M8 X 20

250000953

Unavailable

361

Rear Door Stricker

705801024

$50.74

362

LH Striker Support

705800851

$16.12

363

Torx Truss M/S M8 X 20

250000953

Unavailable

365

Torx Truss M/S M8 X 20

250000953

Unavailable

370

Torx Truss M8 X 25

250000874

$1.74

376

Rear Door Stricker

705801024

$50.74

377

RH Support Striker

705800852

$16.12

378

Torx Truss M/S M8 X 20

250000953

Unavailable

382

Clip

517306478

$1.37

384

Panel Nut M6 X 1.0

250100198

$1.73

386

Stainless Steel Flat Washer

234062670

$1.74

388

Torx Truss Screw M6 X 25

250000807

$1.74

389

Torx Screw M6 X 70

250000954

$1.56

455

Torx Truss M/S M8 X 20

250000953

Unavailable

465

Torx Truss M/S M8 X 20

250000953

Unavailable

470

Torx Truss M8 X 25

250000874

$1.74

482

Clip

517306478

$1.37

484

Panel Nut M6 X 1.0

250100198

$1.73

486

Stainless Steel Flat Washer

234062670

$1.74

488

Torx Truss Screw M6 X 25

250000807

$1.74

489

Torx Screw M6 X 70

250000954

$1.56

3050

LH Rear Half Rigid Door | Includes 3050 to 3050q

705801298

$1,709.99

3050a

Guide Pin

705801454

$41.51

3050c

Retaining Cable

705800903

$9.29

3050d

Gasket

705801382

$226.12

3050g

Door Handle

705017152

$13.52

3050h

Handle Spring

705013062

$13.83

3050j

Handle Axle

705207440

$11.54

3050k

External Retaining Ring

705601875

$4.06

3050m

LH Rear Door Latch

705801466

$189.20

3050n

LH Door Pictogram Label

704909996

Unavailable

3050p

LH Upper Door Trim

705800915

$146.89

3050q

LH Interior Door Panel

705801385

$981.51

3050r

LH Lower Door Panel

705800718

$279.99

3052

Hyper Silver, LH Rear Door Panel

705801410

$274.99

3150

RH Rear Half Rigid Door | Includes 3150 to 3150q

705801299

$1,709.99

3150a

Guide Pin

705801455

$41.51

3150c

Retaining Cable

705800903

$9.29

3150d

Gasket

705801382

$226.12

3150g

Door Handle

705017152

$13.52

3150h

Handle Spring

705013062

$13.83

3150j

Handle Axle

705207440

$11.54

3150k

External Retaining Ring

705601875

$4.06

3150m

RH Rear Door Latch

705801467

$189.20

3150n

RH Door Pictogram Label

704909998

Unavailable

3150p

RH Upper Door Trim

705800916

$146.89

3150q

RH Interior Door Panel

705801387

$981.51

3150r

RH Lower Door Panel

705800719

$227.99

3152

Hyper Silver, RH Rear Door Panel

705801411

$274.99

7000

Door Hinge

705800751

$41.51

7005

Hinge Pin

705800781

$0.55

7006

Retaining Ring

293370125

$2.31

7010

Lower Hinge

705801025

$41.51

7410

Upper Door Hinge

705800802

$18.43

7430

Support

705210255

$17.66
