- North America - Defender MAX HD10 - XMR - 8PRA - Hyper Silver - 67" Width, 2024
07- Enclosure Cab - Front Doors

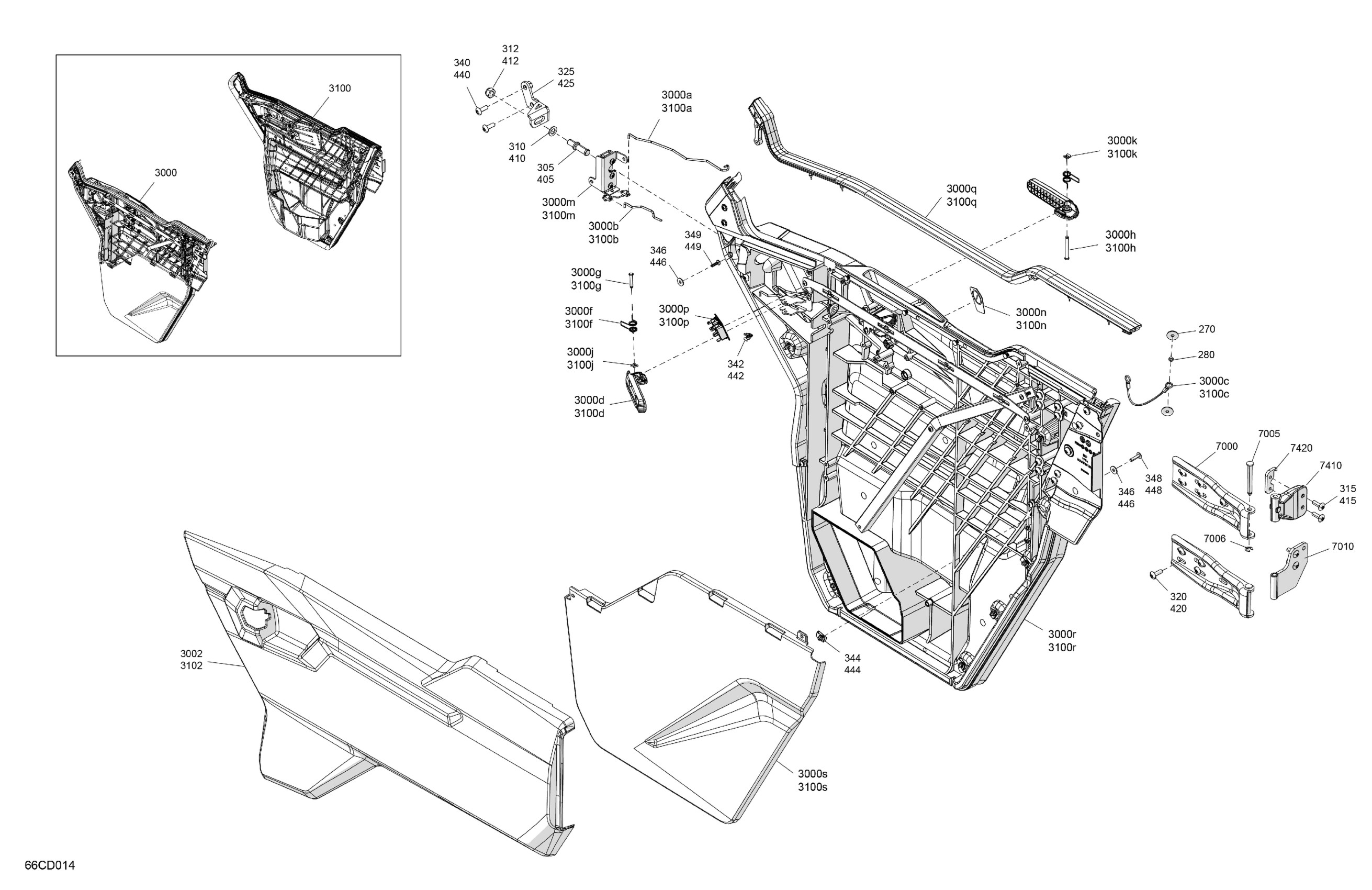

Can-Am North America - Defender MAX HD10 - XMR - 8PRA - Hyper Silver - 67" Width, 2024 07- Enclosure Cab - Front Doors Diagram
#
270
Washer M6
250200029
Unavailable
280
Bushing
708300737
Unavailable
305
Rod Latch
705800850
Unavailable
310
Conical Spring Washer M12
250200005
Unavailable
312
Elastic Stop Nut M12
232521416
Unavailable
315
Torx Truss M8 X 25
250000874
Unavailable
320
Torx Truss M8 X 25
250000874
Unavailable
325
LH Front Striker Support
705801086
Unavailable
340
Torx Truss M8 X 25
250000874
Unavailable
342
Clip
517306478
Unavailable
344
Panel Nut M6 X 1.0
250100198
Unavailable
346
Stainless Steel Flat Washer
234062670
Unavailable
348
Torx Truss Screw M6 X 25
250000807
Unavailable
349
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
405
Rod Latch
705800850
Unavailable
410
Conical Spring Washer M12
250200005
Unavailable
412
Elastic Stop Nut M12
232521416
Unavailable
415
Torx Truss M8 X 25
250000874
Unavailable
420
Torx Truss M8 X 25
250000874
Unavailable
425
RH Front Striker Support
705801097
Unavailable
440
Torx Truss M8 X 25
250000874
Unavailable
442
Clip
517306478
Unavailable
444
Panel Nut M6 X 1.0
250100198
Unavailable
446
Stainless Steel Flat Washer
234062670
Unavailable
448
Torx Truss Screw M6 X 25
250000807
Unavailable
449
Torx Screw Truss Head K50X20 T20
250000760
Unavailable
3000
LH Front Rigid Door Half | Includes 3000 to 3000s
705801240
Unavailable
3000a
Guide Pin
705801452
Unavailable
3000b
Guide Pin
705801358
Unavailable
3000c
Retaining Cable
705801437
Unavailable
3000d
Door Handle
705017152
Unavailable
3000f
Handle Spring
705013062
Unavailable
3000g
Handle Axle
705207440
Unavailable
3000h
Guide Pin
705801393
Unavailable
3000j
External Retaining Ring
705601875
Unavailable
3000k
External Retaining Ring
705602261
Unavailable
3000m
LH Front Door Latch
705801464
Unavailable
3000n
LH Door Pictogram Label
704909996
Unavailable
3000p
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
3000q
LH Upper Door Trim
705800913
Unavailable
3000r
LH Interior Door Panel
705801384
Unavailable
3000s
LH Lower Door Panel
705800716
Unavailable
3002
Hyper Silver, LH Upper Door Panel
705801408
Unavailable
3100
RH Front Rigid Door Half | Includes 3100 to 3100s
705801242
Unavailable
3100a
Guide Pin
705801453
Unavailable
3100b
Guide Pin
705801358
Unavailable
3100c
Retaining Cable
705801437
Unavailable
3100d
Door Handle
705017152
Unavailable
3100f
Handle Spring
705013062
Unavailable
3100g
Handle Axle
705207440
Unavailable
3100h
Guide Pin
705801393
Unavailable
3100j
External Retaining Ring
705601875
Unavailable
3100k
External Retaining Ring
705602261
Unavailable
3100m
RH Front Door Latch
705801465
Unavailable
3100n
RH Door Pictogram Label
704909998
Unavailable
3100p
Plug Carling | Australia, Brazil, Europe, Japan
710007173
Unavailable
3100q
RH Upper Door Trim
705800914
Unavailable
3100r
RH Interior Door Panel
705801386
Unavailable
3100s
RH Lower Door Panel
705800717
Unavailable
3102
Hyper Silver, RH Upper Door Panel
705801409
Unavailable
7000
Door Hinge
705800751
Unavailable
7005
Hinge Pin
705800781
Unavailable
7006
Retaining Ring
293370125
Unavailable
7010
Lower Hinge
705801025
Unavailable
7410
Upper Door Hinge
705800802
Unavailable
7420
Support
705210255
Unavailable
