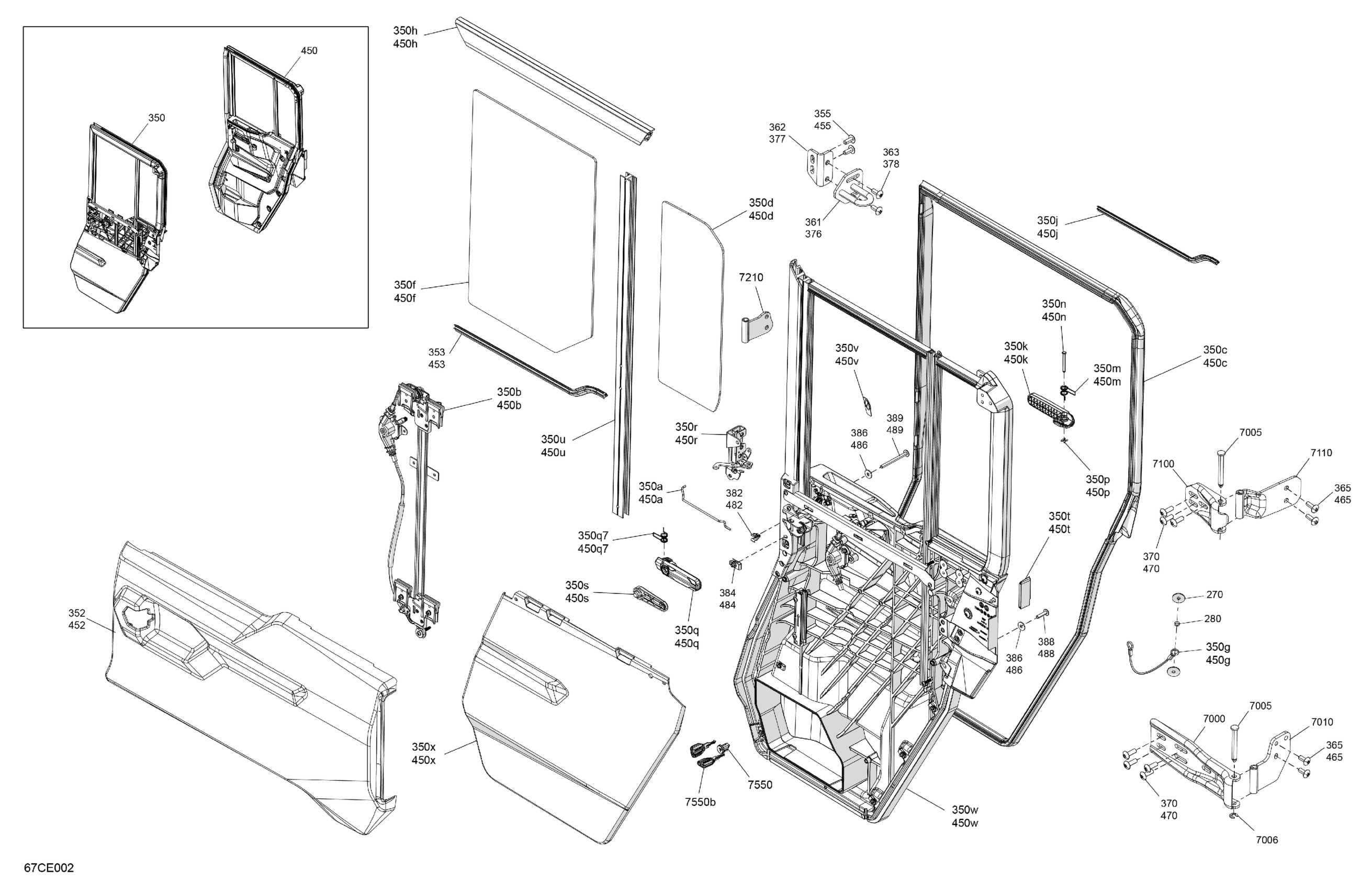

Can-Am Defender Max - HD10 - TEX CAB - 6LSC - Stealth Black - 65" Width - 2025 Enclosure Cab - Rear Doors Diagram

#

Description
Price

270

Washer M6

250200029

$1.83

280

Bushing

708300737

$4.62

315

Torx Truss M8 X 25

250000874

$1.74

350

LH Rear Rigid Door Ass'y | Includes 350 to 350x

705801294

$2,049.99

350a

Guide Pin

705801454

$41.51

350b

LH Rear Window Regulator

715900996

$516.89

350c

Gasket

705801314

$73.99

350d

Tinted, LH Rear Door Window

705801320

$194.99

350f

Tinted, LH Rear Sliding Cab Window

705801319

$204.99

350g

Retaining Cable

705800903

$9.29

350h

Gasket

705801315

$106.12

350j

Gasket

705800964

$32.28

350k

Door Handle

705017152

$13.52

350m

Handle Spring

705013062

$13.83

350n

Handle Axle

705207440

$11.54

350p

External Retaining Ring

705601875

$4.06

350q

LH Rear Door Handle Ass'y | Includes 350q to 350q7

705018952

$189.97

350q7

Handle Spring

705013062

$13.83

350r

LH Rear Door Latch

705801466

$189.20

350s

Window Crank

705800871

$73.82

350t

Trim

705800992

$93.05

350u

Rear Window Guide Extrusion

705800723

$207.66

350v

LH Door Pictogram Label

704909996

Unavailable

350w

Not Available As Spare Parts

XXX

Unavailable

350x

LH Lower Door Panel

705800718

$279.99

352

Stealth Black, LH Rear Door Panel

705801307

$274.99

353

Gasket

705800964

$32.28

354

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.77

355

Torx Truss M/S M8 X 20

250000953

$1.74

361

Rear Door Stricker

705801024

$50.74

362

LH Striker Support

705800851

$16.12

363

Torx Truss M/S M8 X 20

250000953

$1.74

365

Torx Truss M/S M8 X 20

250000953

$1.74

370

Torx Truss M8 X 25

250000874

$1.74

376

Rear Door Stricker

705801024

$50.74

377

RH Support Striker

705800852

$16.12

378

Torx Truss M/S M8 X 20

250000953

$1.74

382

Clip

517306478

$1.37

384

Panel Nut M6 X 1.0

250100198

$1.73

386

Stainless Steel Flat Washer

234062670

$1.74

388

Torx Truss Screw M6 X 25

250000807

$1.74

389

Torx Screw M6 X 70

250000954

$1.56

415

Torx Truss M8 X 25

250000874

$1.74

450

RH Rear Rigid Door Ass'y | Includes 450 to 450x

705801295

$2,049.99

450a

Guide Pin

705801455

$41.51

450b

RH Rear Window Regulator

715900997

$516.89

450c

Gasket

705801316

$73.99

450d

Tinted, RH Rear Door Window

705801321

$194.99

450f

Tinted, RH Rear Sliding Cab Window

705801322

$204.99

450g

Retaining Cable

705800903

$9.29

450h

Gasket

705801315

$106.12

450j

Gasket

705800964

$32.28

450k

Door Handle

705017152

$13.52

450m

Handle Spring

705013062

$13.83

450n

Handle Axle

705207440

$11.54

450p

External Retaining Ring

705601875

$4.06

450q

RH Rear Door Handle Ass'y | Includes 450q to 450q7

705018953

$180.49

450q7

Handle Spring

705013062

$13.83

450r

RH Rear Door Latch

705801467

$189.20

450s

Window Crank

705800871

$73.82

450t

Trim

705800993

$93.05

450u

Rear Window Guide Extrusion

705800723

$207.66

450v

RH Door Pictogram Label

704909998

Unavailable

450w

Not Available As Spare Parts

XXX

Unavailable

450x

RH Lower Door Panel

705800719

$227.99

452

Stealth Black, RH Rear Door Panel

705801309

$274.99

453

Gasket

705800964

$32.28

454

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.77

455

Torx Truss M/S M8 X 20

250000953

$1.74

465

Torx Truss M/S M8 X 20

250000953

$1.74

470

Torx Truss M8 X 25

250000874

$1.74

482

Clip

517306478

$1.37

484

Panel Nut M6 X 1.0

250100198

$1.73

486

Stainless Steel Flat Washer

234062670

$1.74

488

Torx Truss Screw M6 X 25

250000807

$1.74

489

Torx Screw M6 X 70

250000954

$1.56

7000

Door Hinge

705800751

$37.99

7005

Hinge Pin

705800781

$0.55

7006

Retaining Ring

293370125

$2.31

7010

Lower Hinge

705801025

$41.51

7100

Upper Door Hinge

705800752

$41.51

7110

Upper Door Hinge

705800755

$32.28

7210

Upper Door Hinge

705800756

$46.12

7550

Lock Barrel Ass'y | Includes 7550 to 7550b

705801380

$106.12

7550b

Key

710010366

Unavailable
