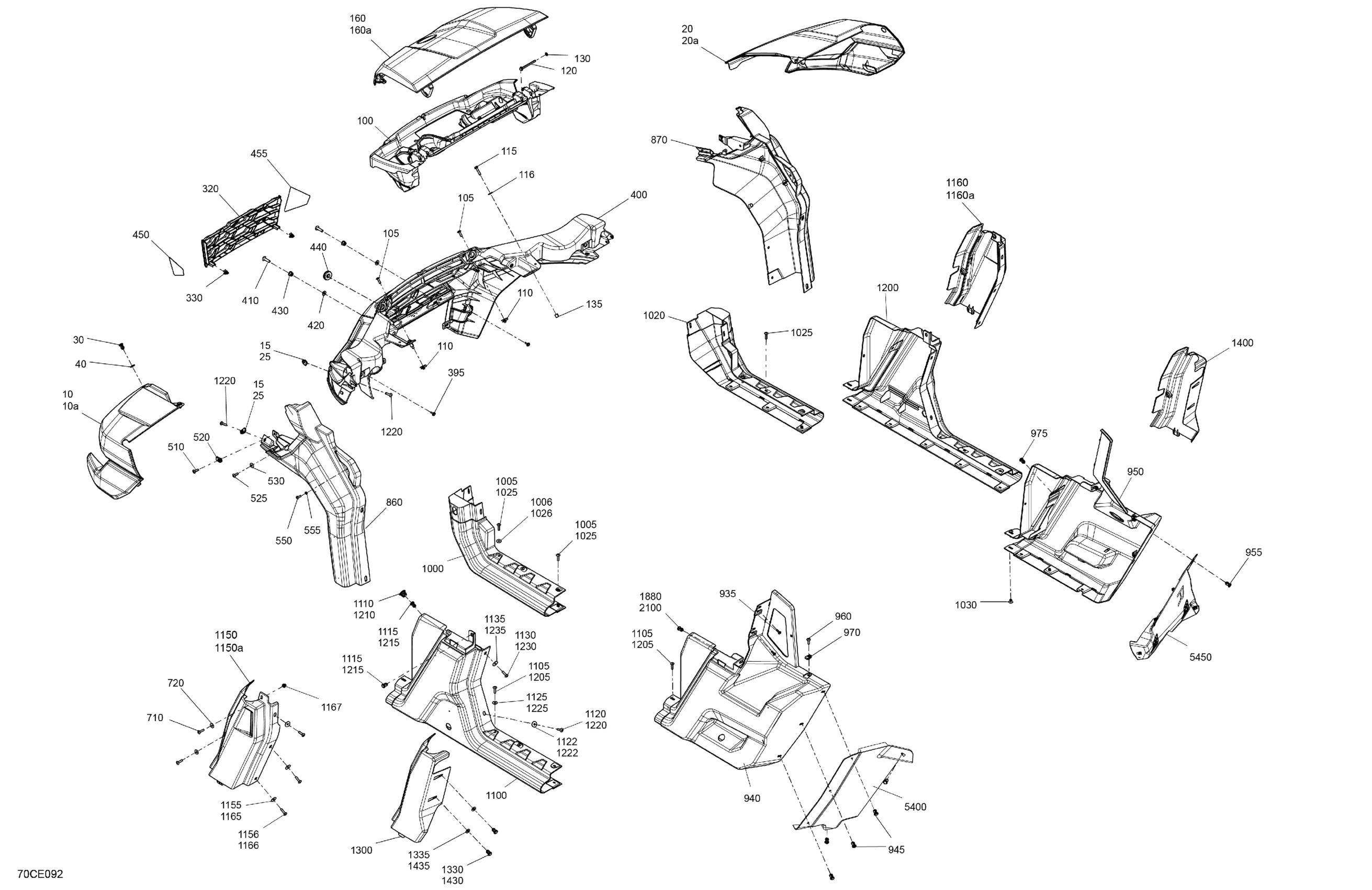

Can-Am Defender Max - HD10 - TEX CAB - 6LSC - Stealth Black - 65" Width - 2025 Body - System Diagram

Stealth Black, LH Front Fender

705018788

$204.99

LH Front Fender

705016320

$204.99

Panel Nut M6 X 1.0

250100198

$2.11

Stealth Black, RH Front Fender

705018789

$204.99

RH Front Fender

705016321

$204.99

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Multi Purpose Support

705013766

$43.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 75

207667554

$4.44

Push Nut

732610072

$2.19

Bushing

293900125

$2.69

Stealth Black, Front Hood | Includes 160 to 160a

715010360

$369.99

Deep Black, Front Hood

705016319

$369.99

Grille

705013590

$26.99

Clip

517306478

$1.09

Screw M4 X 16

250000725

$3.49

Deep Black, Front Fascia

705013591

$229.99

Torx Screw M8 X 30

250000886

$2.11

Washer

503192494

$3.17

Hex. Flange Elastic Nut M8

233281414

$1.47

Grommet

705010718

$2.69

LH Front Reflector

704905072

$13.49

RH Front Reflector

704905073

$13.49

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw K50 X 16

250000720

$1.69

Flat Washer M5

234051670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

LH Front Lateral Panel

705008152

$62.99

RH Front Lateral Panel

705008153

$62.99

Torx Screw K50 X 16

250000720

$1.69

Deep Black, LH Rear Body Panel

705013658

$109.99

Tuflok Plastic Rivet

293150230

$1.47

Deep Black, RH Rear Body Panel

705013659

$109.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Deep Black, LH Central Panel

705019037

$71.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Deep Black, RH Central Panel

705019038

$74.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

LH Middle Side Panel

705013660

$109.99

Torx Truss Screw M6 X 25

250000807

$2.11

Insert

707900133

$2.89

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

LH Middle Cage Cover | Includes 1150 to 1150a

705011955

$37.99

LH Middle Cage Cover

705010601

$38.99

Flat Washer M6.6 X 22

250200162

$2.32

Torx Truss Screw M6 X 25

250000807

$2.11

RH Middle Cage Cover | Includes 1160 to 1160a

705011957

$38.99

RH Middle Cage Cover

705010602

$38.99

Flat Washer M6.6 X 22

250200162

$2.32

Torx Truss Screw M6 X 25

250000807

$2.11

Insert Half Hex Body M6 x 1.0

250100199

$3.19

RH Middle Side Panel

705013661

$109.99

Torx Truss Screw M6 X 25

250000807

$2.11

Insert

707900133

$2.89

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

LH Rear Cage Cover Kit

715003564

$82.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

LH Rear Deflector

705016336

$51.99

RH Rear Deflector

705016337

$51.99
