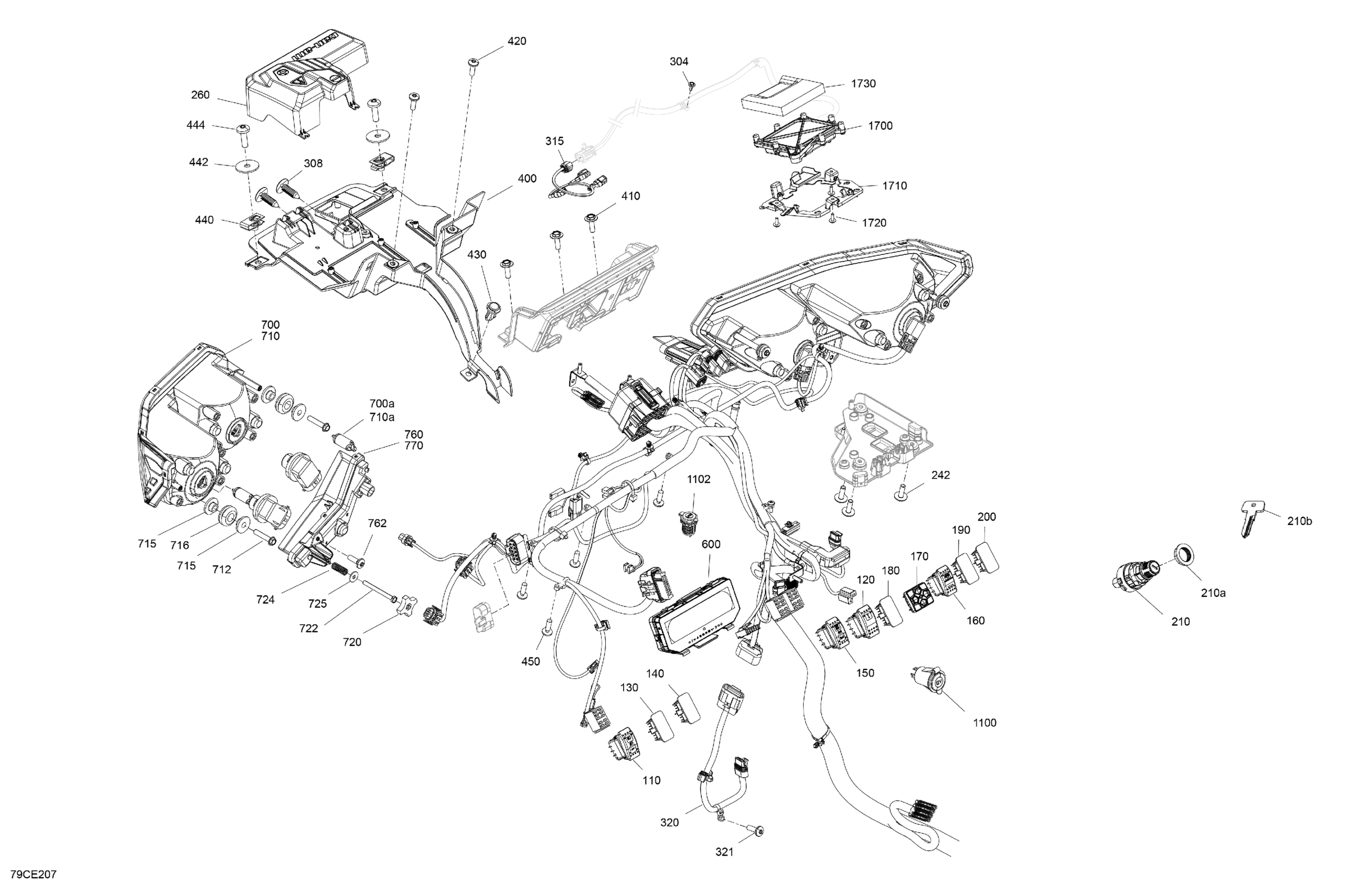

Can-Am Defender Max - HD10 - TEX - 6USC - Stealth Black - 65" Width - 2025 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$44.00

120

Switch Winch

710002052

$28.18

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

150

Differential Switch

710006040

$29.82

160

Differential Lock Switch

710005470

$42.51

170

Multifonction Switch

710006650

$81.31

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

210a

Specialized Nut

710007923

$1.99

210b

Blank Ignition Key

715900934

$17.13

242

Screw PT Type K-50 X 16

250000959

$2.00

260

Junction Block Cover

710006707

$5.90

304

Screw PT Type K-50 X 16

250000959

$2.00

308

Black, Dart

293730006

$0.93

315

Front Differential Wiring Harness

710006807

$44.75

320

Throttle Pedal Harness

710006837

$211.91

321

Torx Screw K50 X 16

250000720

$1.60

400

Wiring Harness Support

710006649

$21.61

410

Screw PT Type K-50 X 16

250000959

$2.00

420

Torx Screw K50 X 16

250000720

$1.60

430

Tuflok Plastic Rivet

293150230

$1.39

440

Panel Nut M6 X 1.0

250100198

$1.99

442

Washer M6

250200029

$1.78

444

Torx Screw M6 X 20

250000712

$2.00

450

Screw PT Type K-50 X 16

250000959

$2.00

600

MID Multifunction Gauge

710008295

$336.54

700

LH Beam | Includes 700 to 700a

710008316

$177.58

700a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

710

RH Beam | Includes 710 to 710a

710008317

$177.58

710a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

715

Shoulder Bushing

710004749

$2.69

716

Overmolded Grommet

293720130

$4.25

720

Handle

572106600

$9.03

722

Hex. Screw K40 X 45

250000718

$2.00

724

Spring

517168600

$6.70

725

Flat Washer 4 mm, Stainless

234042600

$1.06

760

LH Auxiliary LED Headlight

710006374

$172.36

762

Screw PT Type K-50 X 16

250000959

$2.00

770

RH Auxiliary LED Headlight

710006375

$172.36

1100

12V Power Outlet

710005374

$31.31

1102

USB Outlet

219400510

$43.99

1700

Differential Module

710008842

$423.85

1710

FDM Support

710005532

$6.73

1720

Screw PT Type K-50 X 16

250000959

$2.00

1730

Protector Foam

710006580

$13.99
