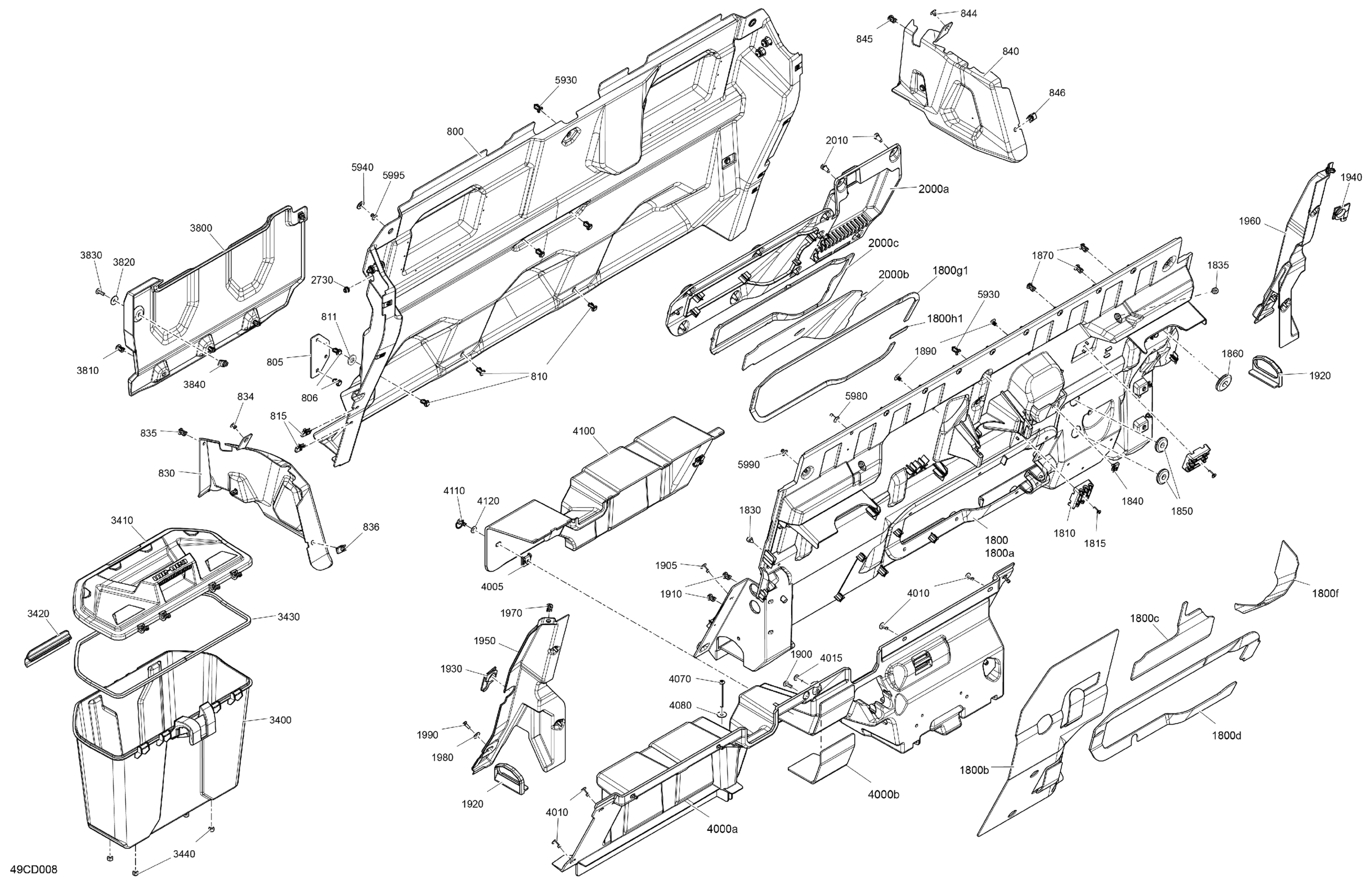

Can-Am Defender MAX HD10 - LTD CAB - 6MRH - Macchiato Satin - 67" Width, 2024 Cab Interior - Back Wall Diagram

#

Description
Price

800

Central Rear Body Panel Deflector Kit

715008394

$273.85

805

Plate

707900469

$27.58

806

Tuflok Plastic Rivet

293150230

$1.39

810

Tuflok Plastic Rivet

293150230

$1.39

811

Washer

503192494

$3.01

815

Panel Nut M6 X 1.0

250100198

$1.99

830

LH Lower Panel

707900994

$73.85

834

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

835

Tuflok Plastic Rivet

293150230

$1.39

836

Panel Nut M6 X 1.0

250100198

$1.99

840

RH Lower Panel

707900995

$73.85

844

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

845

Tuflok Plastic Rivet

293150230

$1.39

846

Panel Nut M6 X 1.0

250100198

$1.99

1800

Rear Upper Cab Panel Kit

715008401

$422.36

1800a

Rear Upper Cab Panel

707901101

$374.60

1800a1

Cage Warning Label

704908188

Unavailable

1800b

Heat Shield

707900825

$61.16

1800c

Heat Shield

707900829

$22.36

1800d

Heat Shield

707900926

$41.01

1800f

Heat Shield

707900835

$10.55

1800g1

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1800h1

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1810

Hose Support

707900788

$0.82

1815

Torx Screw K50 X 16

250000720

$1.60

1830

Rubber Bumper

293830005

$6.12

1835

Rubber Bumper

293830005

$6.12

1840

Panel Nut M6 X 1.0

250100198

$1.99

1850

Grommet

293720119

$4.04

1860

Grommet

293720119

$4.04

1870

Tuflok Plastic Rivet

293150230

$1.39

1890

Black, Dart

414644300

$0.90

1900

Torx Screw M6 X 20

250000722

$1.54

1905

Pop Rivet 3/16"

293150100

$1.04

1910

Tuflok Plastic Rivet

293150230

$1.39

1920

Panel Trim

707900774

$4.15

1930

LH Panel Trim

707901080

$3.82

1940

RH Panel Trim

707901081

$3.82

1950

LH Upper Deflector

707900766

$15.64

1960

RH Upper Deflector

707900767

$15.64

1970

Tuflok Plastic Rivet

293150230

$1.39

1980

Stainless Steel Flat Washer

234062670

$2.00

1990

Torx Screw K50 X 16

250000720

$1.60

2000a

Rear Access Cover

707900742

$75.34

2000b

Heat Shield

707900928

$22.36

2000c

Heat Shield

707900927

$41.01

2010

Torx Screw M6 X 20

250000712

$2.00

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.91

3400

Storage Box

715003314

$101.17

3410

Storage Box

715003314

$101.17

3420

Clip | Outlander Max

269501945

$14.90

3430

Neoprene Seal

293250453

$17.13

3440

Rubber Bumper

293830005

$6.12

3800

Rear Panel

707900996

$88.78

3810

Tuflok Plastic Rivet

293150230

$1.39

3820

Flat Washer M6.6 X 22

250200162

$2.19

3830

Torx Screw M6 X 20

250000722

$1.54

3840

Panel Nut M6 X 1.0

250100198

$1.99

4000a

Rear Lower Cab Panel

707901074

$196.99

4000b

Heat Shield

707900843

$32.81

4005

Quarter Turn Nut

705002651

$4.40

4010

Pop Rivet 3/16"

293150100

$1.04

4015

Torx Screw M6 X 20

250000722

$1.54

4070

Torx Screw M6 X 70

250000954

$1.79

4080

Flat Washer M6.6 X 22

250200162

$2.19

4100

Battery Cover

707900743

$81.31

4110

Quarter Turn Screw

705002649

$14.43

4120

Washer

708400286

$3.90

5930

Tuflok Plastic Rivet

293150230

$1.39

5940

Flat Washer 8 mm, Nylon

292001663

$1.36

5980

Pop Rivet 3/16"

293150100

$1.04

5990

Pop Rivet 3/16"

293150103

$0.52

5995

Pop Rivet 3/16" | DS 650 X

293150104

$0.99
