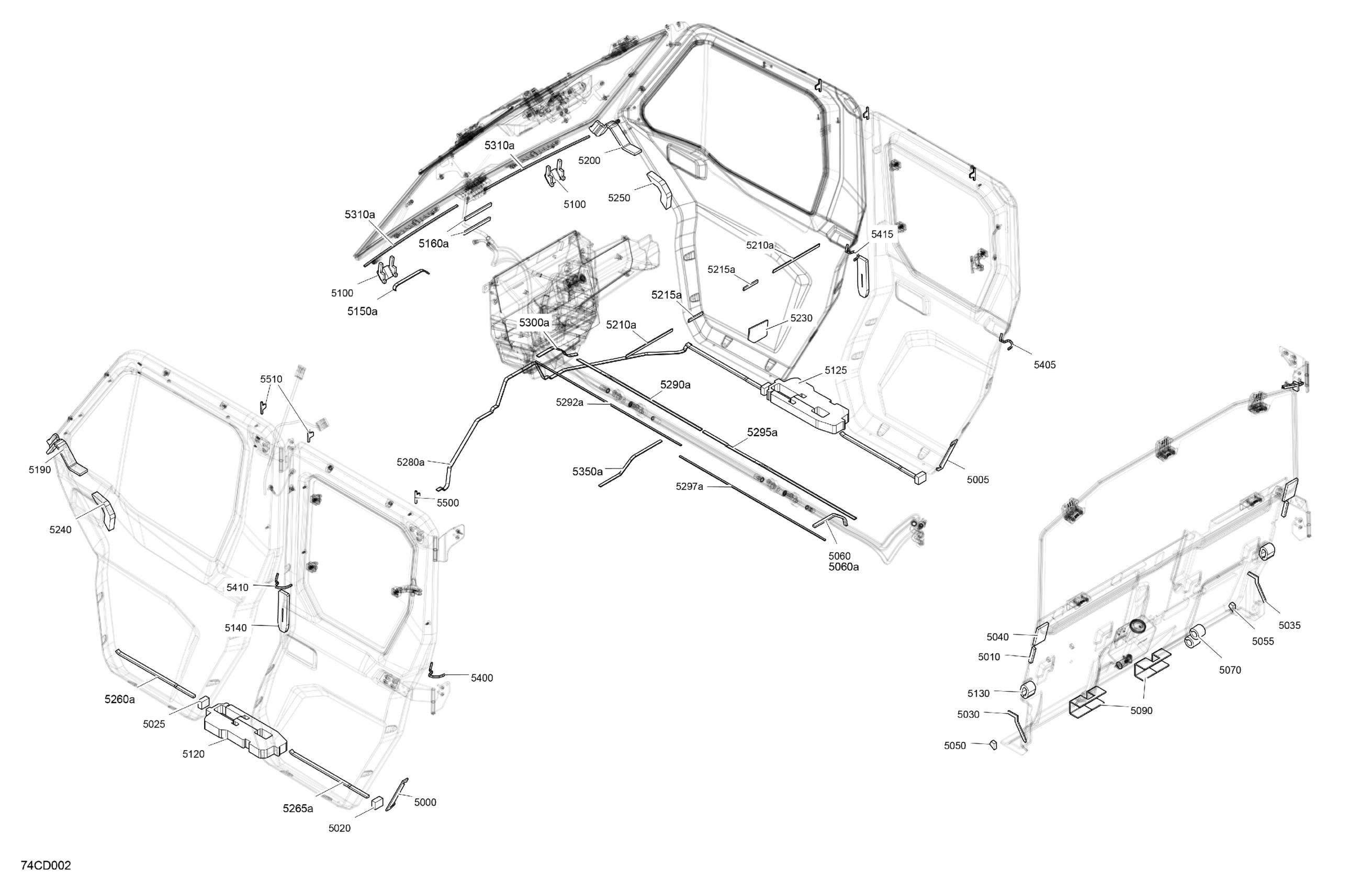

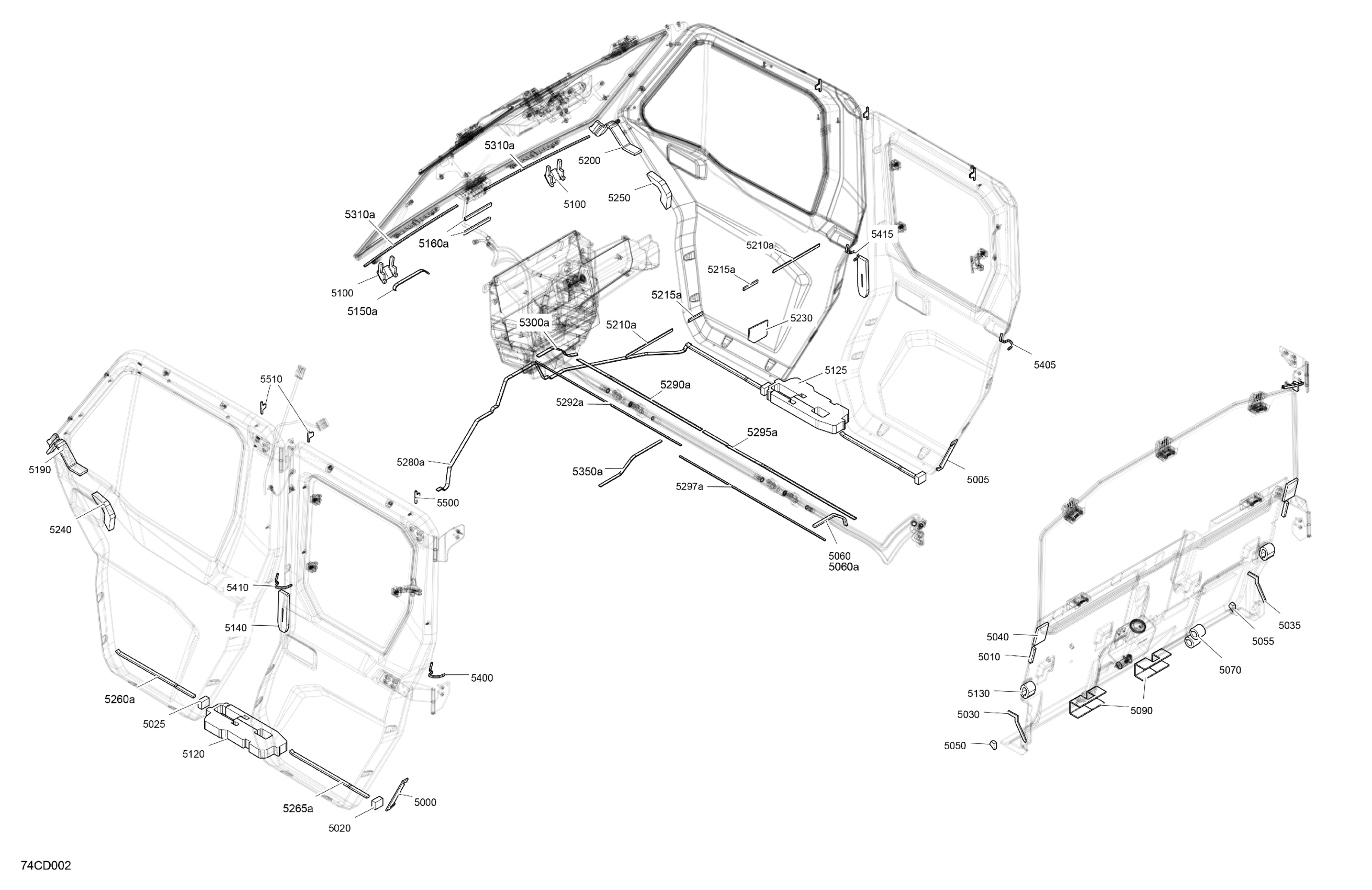

Can-Am Defender MAX HD10 - Lone Star Edition CAB - 6LRB - Night Black - 67" Width CALI, 2024 Enclosure Cab - Isolations Diagram

Description

Price

5000

Acoustic Insulation

705800504

$4.76

5005

Acoustic Insulation

705800515

$4.76

5010

Acoustic Insulation

705800580

$2.85

5020

Acoustic Insulation

705800506

$4.76

5025

Acoustic Insulation

705800506

$4.76

5030

Acoustic Insulation

705800507

$4.76

5035

Acoustic Insulation

705800505

$4.76

5040

Acoustic Insulation

705800508

$4.76

5050

Acoustic Insulation

705800509

$4.76

5055

Acoustic Insulation

705800579

$4.76

5060

Neoprene Seal (1PAC=3M)

293200003

Unavailable

5060a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5070

Acoustic Insulation

705800764

$4.76

5090

Acoustic Insulation

705800513

$4.76

5100

Acoustic Insulation

705800684

$4.76

5120

Acoustic Insulation

705800644

$21.61

5125

Acoustic Insulation

705800645

$21.61

5130

Acoustic Insulation

705800765

$4.76

5140

Acoustic Insulation

705800662

$4.76

5150a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5160a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5190

Acoustic Insulation

705800682

$4.76

5200

Acoustic Insulation

705800683

$4.76

5210a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5215a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5230

Acoustic Insulation

705800583

$2.85

5240

LH Insulating Foam

705800845

$7.67

5250

RH Insulating Foam

705800846

$7.67

5260a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5265a

Neoprene Seal (1PAC=3M)

219704364

$26.09

5280a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5290a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5292a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5295a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5297a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5300a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5310a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5350a

Gasket, Neoprene 2000Mm Long

219704476

$14.51

5400

Acoustic Insulation

705800507

$4.76

5405

Acoustic Insulation

705800505

$4.76

5410

Acoustic Insulation

705800507

$4.76

5415

Acoustic Insulation

705800505

$4.76

5500

Acoustic Insulation

705800671

$4.99

5510

Acoustic Insulation

705800671

$4.99
