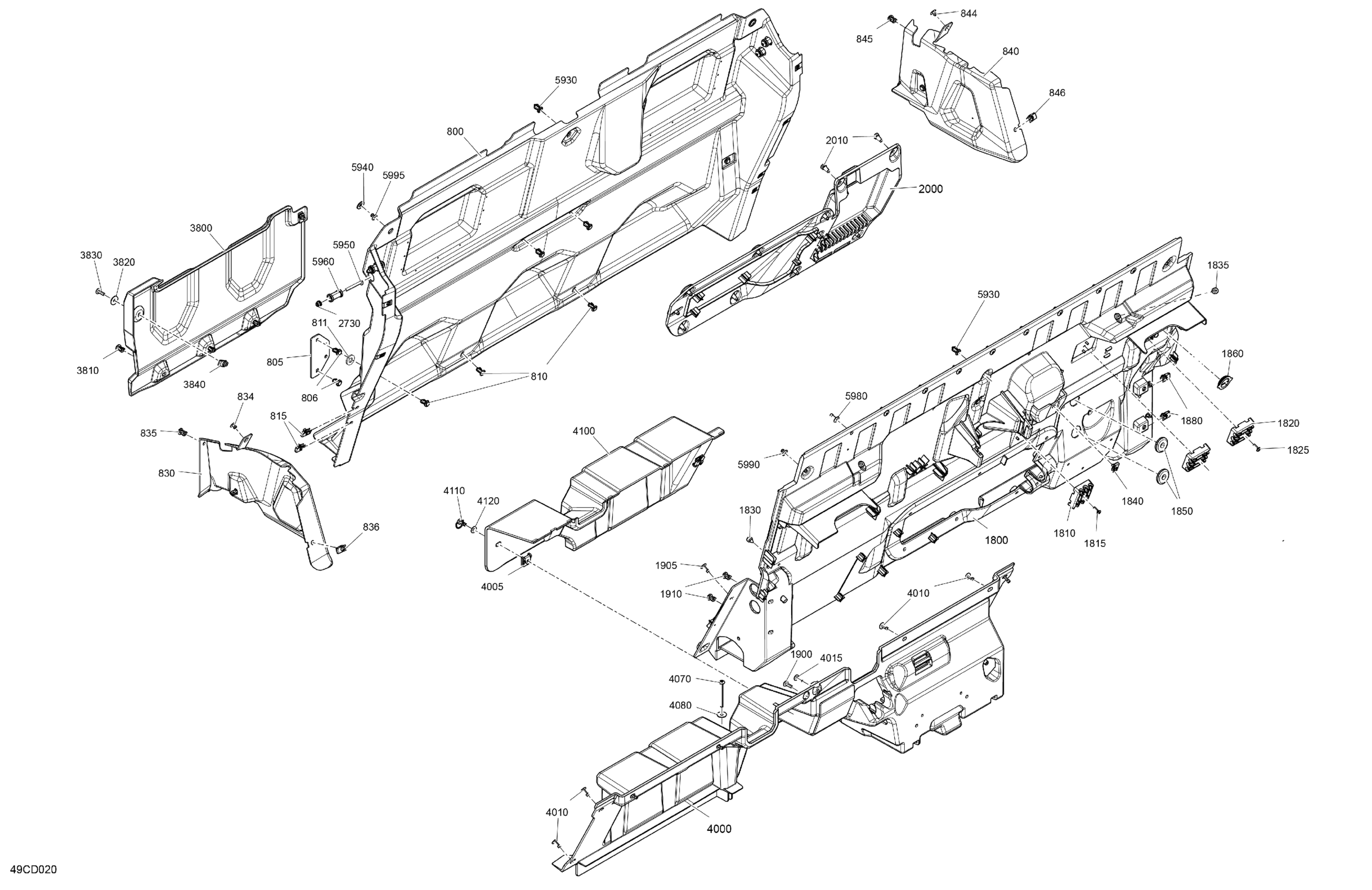

Can-Am Defender MAX HD10 - DPS - 8LRC - Timeless Black Metallic - 64" Width CALI, 2024 Cab Interior - Back Wall Diagram

Description

Price

800

Central Rear Body Panel Deflector Kit

715008394

$290.74

805

Plate

707900469

$28.43

806

Tuflok Plastic Rivet

293150230

$1.21

810

Tuflok Plastic Rivet

293150230

$1.21

811

Washer

503192494

$3.11

815

Panel Nut M6 X 1.0

250100198

$1.73

830

LH Lower Panel

707900994

$78.43

834

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

835

Tuflok Plastic Rivet

293150230

$1.21

836

Panel Nut M6 X 1.0

250100198

$1.73

840

RH Lower Panel

707900995

$78.43

844

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

845

Tuflok Plastic Rivet

293150230

$1.21

846

Panel Nut M6 X 1.0

250100198

$1.73

1800

Rear Upper Cab Panel Kit

715008401

$479.99

1800a1

Cage Warning Label

704908188

Unavailable

1810

Hose Support

707900788

$0.86

1815

Torx Screw K50 X 16

250000720

$1.39

1820

Hose Support

707900788

$0.86

1825

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1835

Rubber Bumper

293830005

$5.33

1840

Panel Nut M6 X 1.0

250100198

$1.73

1850

Grommet

293720119

$4.98

1860

Plug

293000125

$1.37

1880

Panel Nut M6 X 1.0

250100198

$1.73

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Pop Rivet 3/16"

293150100

$1.08

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Rear Access Cover

707900742

$78.43

2010

Torx Screw M6 X 20

250000712

$1.74

2730

Insert Half Hex Body M6 x 1.0

250100199

$2.54

3800

Rear Panel

707900996

$92.28

3810

Tuflok Plastic Rivet

293150230

$1.21

3820

Flat Washer M6.6 X 22

250200162

$1.91

3830

Torx Screw M6 X 20

250000722

$1.34

3840

Panel Nut M6 X 1.0

250100198

$1.73

4000

Rear Lower Cab Panel

707901074

$207.66

4005

Quarter Turn Nut

705002651

$3.84

4010

Pop Rivet 3/16"

293150100

$1.08

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$87.66

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$4.02

5930

Tuflok Plastic Rivet

293150230

$1.21

5940

Flat Washer 8 mm, Nylon

292001663

$1.18

5950

Torx Truss M6 X 50

250000868

$1.74

5960

Spacer

707900470

$2.31

5980

Pop Rivet 3/16"

293150100

$1.08

5990

Pop Rivet 3/16"

293150103

$0.54

5995

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
