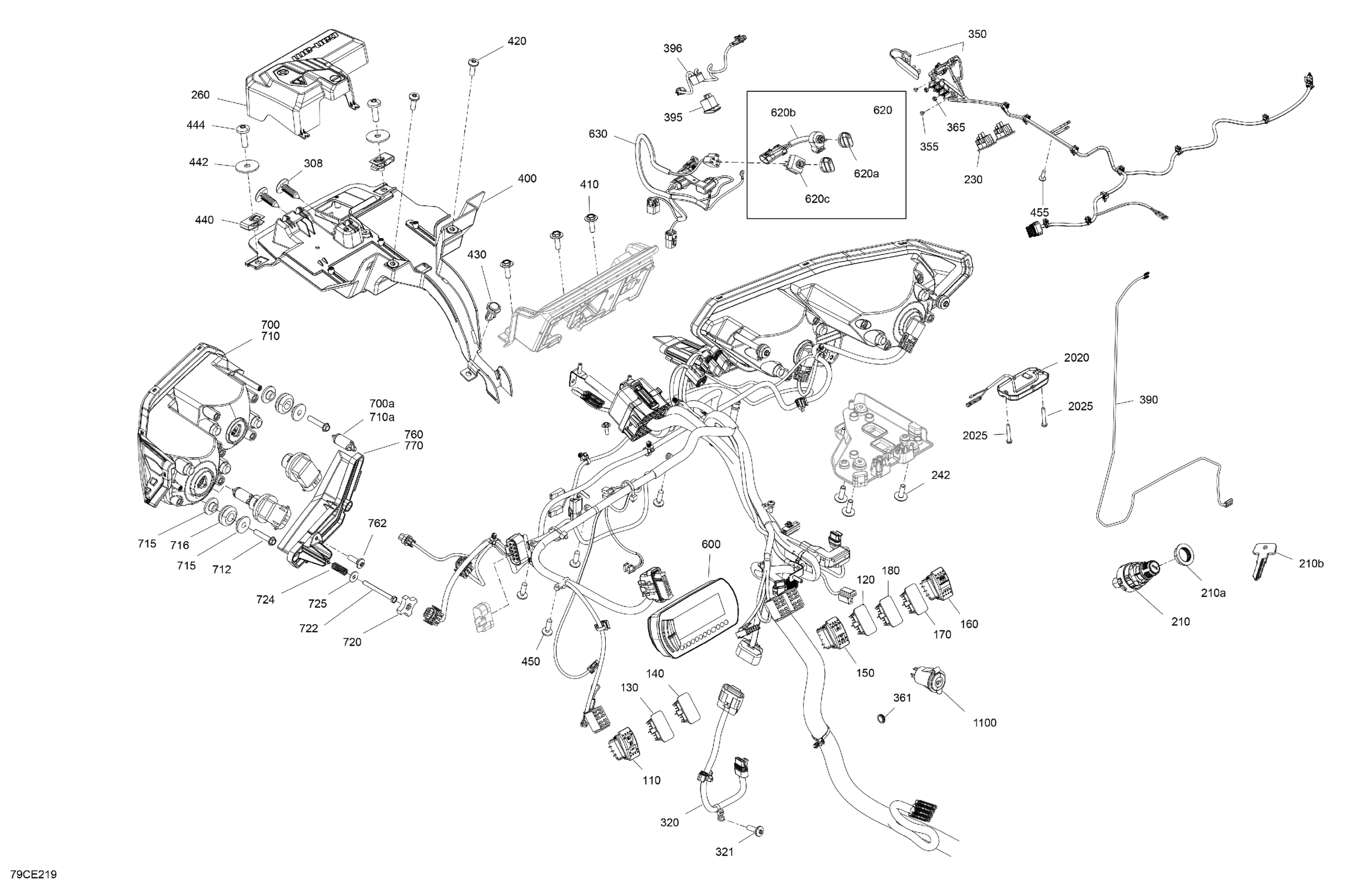

Can-Am Defender - HD9 - DPS CAB - 8USC - Compass Green - 67" Width CALI, 2025 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$44.00

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

150

Switch 2X4

710005489

$29.82

160

Differential Lock Switch

710005470

$42.51

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

210

Ignition Switch | Includes 210 to 210b

710007324

$61.16

210a

Specialized Nut

710007923

$1.99

210b

Blank Ignition Key

715900934

$17.13

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

242

Screw PT Type K-50 X 16

250000959

$2.00

260

Junction Block Cover

710006707

$5.90

308

Black, Dart

293730006

$0.93

320

Throttle Pedal Harness

710006837

$211.91

321

Torx Screw K50 X 16

250000720

$1.60

350

Window/Wiper Harness

710004462

$80.99

355

Pop Rivet 3/16”

293150092

$2.82

361

Boot

710002743

$3.29

365

Elastic Stop Nut M6, Brass

232561200

$4.03

390

Wiper Harness

710004466

$31.31

395

Wiper Switch

710004941

$42.51

396

Wiper Harness

710004942

$38.78

400

Wiring Harness Support

710006649

$21.61

410

Screw PT Type K-50 X 16

250000959

$2.00

420

Torx Screw K50 X 16

250000720

$1.60

430

Tuflok Plastic Rivet

293150230

$1.39

440

Panel Nut M6 X 1.0

250100198

$1.99

442

Washer M6

250200029

$1.78

444

Torx Screw M6 X 20

250000712

$2.00

450

Screw PT Type K-50 X 16

250000959

$2.00

455

Torx Screw K50 X 16

250000720

$1.60

600

Multifunction Compact Gauge

710008296

$362.66

620

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$106.69

620a

Not Available As Spare Parts

XXX

Unavailable

620b

Not Available As Spare Parts

XXX

Unavailable

620c

Not Available As Spare Parts

XXX

Unavailable

630

Heater Unit Wiring Harness

710006759

$84.30

700

LH Beam | Includes 700 to 700a

710008316

$177.58

700a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

710

RH Beam | Includes 710 to 710a

710008317

$177.58

710a

Halogen Bulb H8 12V 35W Blue

715900653

$42.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

715

Shoulder Bushing

710004749

$2.69

716

Overmolded Grommet

293720130

$4.25

720

Handle

572106600

$9.03

722

Hex. Screw K40 X 45

250000718

$2.00

724

Spring

517168600

$6.70

725

Flat Washer 4 mm, Stainless

234042600

$1.06

760

Deep Black, LH Front Headlight Trim

710008973

$18.63

762

Screw PT Type K-50 X 16

250000959

$2.00

770

Deep Black, RH Front Headlight Trim

710008974

$18.63

1100

12V Power Outlet

710005374

$31.31

2020

Dome Light

715002455

$94.30

2025

Hex. Flange Screw K40 X 25

241142560

$2.49
