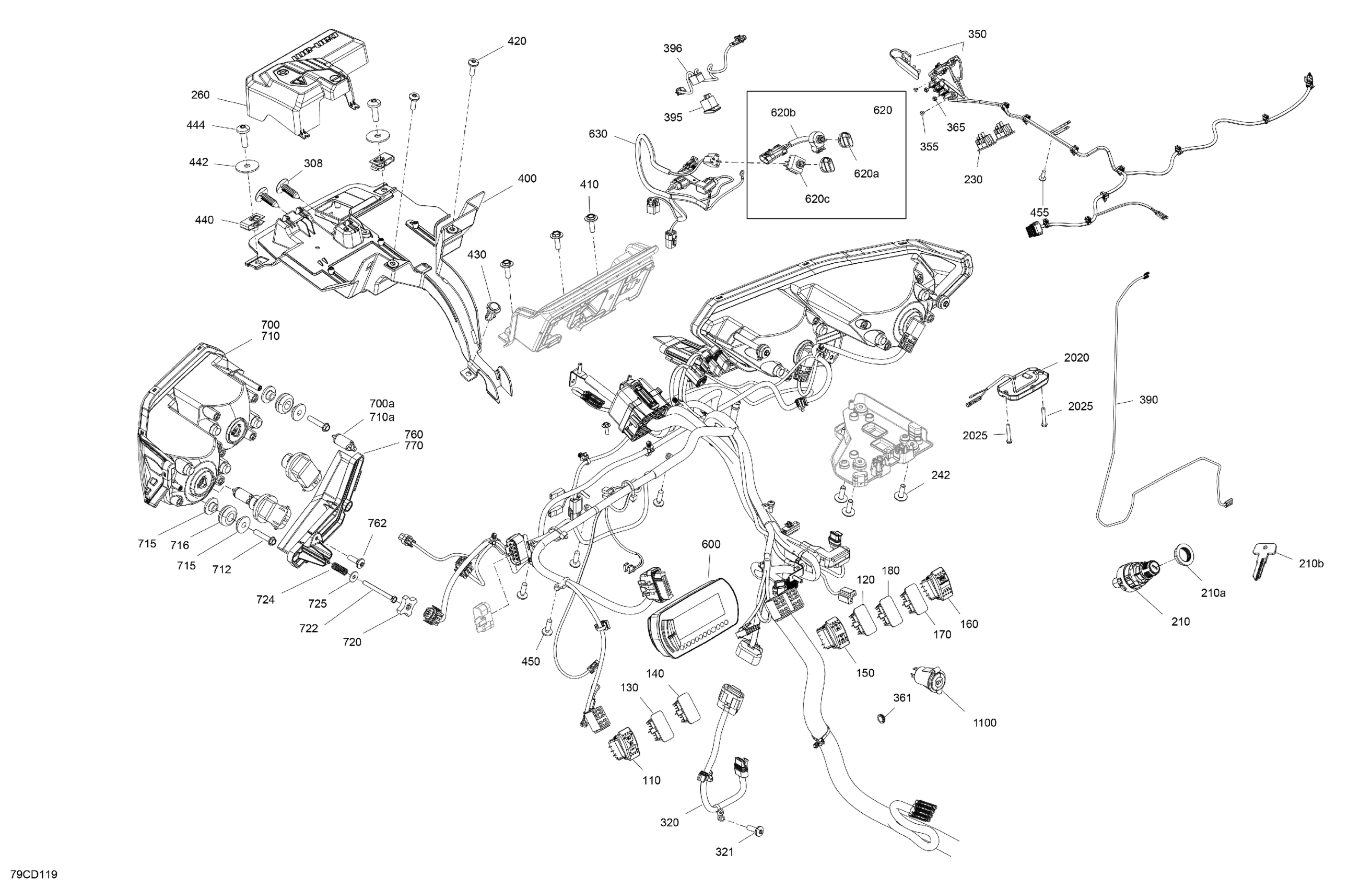

Can-Am Defender HD9 - DPS CAB - 8URB - Tundra Green - 67" Width, 2024 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$46.12

120

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$32.28

160

Differential Lock Switch

710005470

$46.12

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Ignition Switch | Includes 210 to 210b

710007324

$62.69

210a

Specialized Nut

710007923

$2.05

210b

Blank Ignition Key

715900934

$17.66

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

308

Black, Dart

293730006

$0.81

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

350

Window/Wiper Harness

710004462

$84.99

355

Pop Rivet 3/16”

293150092

$2.91

361

Boot

710002743

$3.98

365

Elastic Stop Nut M6, Brass

232561200

$3.51

390

Wiper Harness

710004466

$32.28

395

Wiper Switch

710004941

$46.12

396

Wiper Harness

710004942

$41.51

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Screw PT Type K-50 X 16

250000959

$1.74

455

Torx Screw K50 X 16

250000720

$1.39

600

Multifunction Compact Gauge

710008296

$383.05

620

Potentiometer Switch Knob Ass'y | Includes 620 to 620c

705800585

$110.74

620a

Not Available As Spare Parts

XXX

Unavailable

620b

Not Available As Spare Parts

XXX

Unavailable

620c

Not Available As Spare Parts

XXX

Unavailable

630

Heater Unit Wiring Harness

710006759

$87.66

700

LH Beam | Includes 700 to 700a

710008316

$189.20

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

710

RH Beam | Includes 710 to 710a

710008317

$189.20

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.12

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Overmolded Grommet

293720130

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

Deep Black, LH Front Headlight Trim

710008973

$19.20

762

Screw PT Type K-50 X 16

250000959

$1.74

770

Deep Black, RH Front Headlight Trim

710008974

$19.20

1100

12V Power Outlet

710005374

$27.27

2020

Dome Light

715002455

$104.99

2025

Hex. Flange Screw K40 X 25

241142560

$2.17
