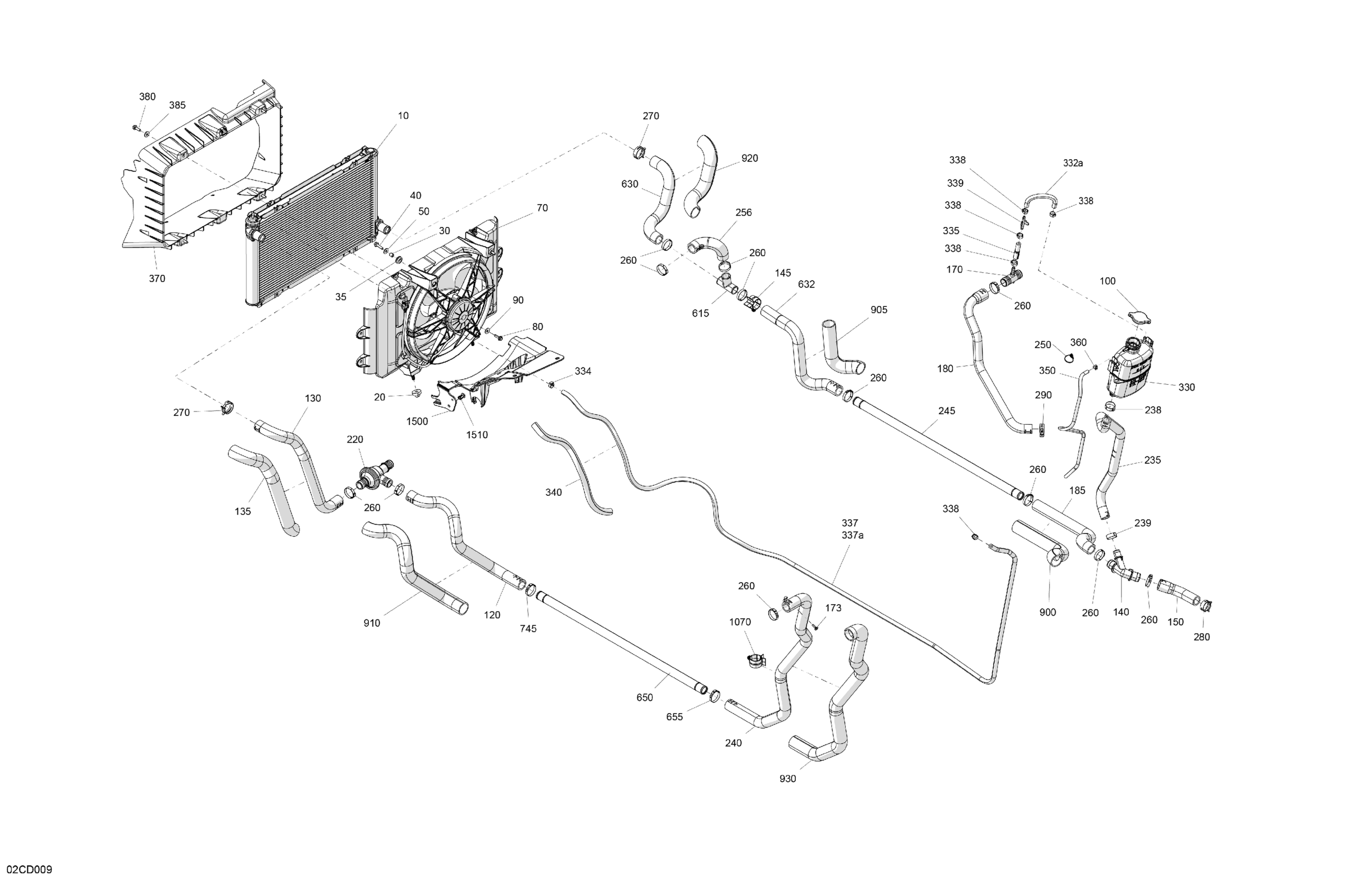

Can-Am Defender HD7 - XT - 8ARD - Asphalt Grey - 62" Width CALI, 2024 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$346.24

20

Grommet

709200948

$8.13

30

Bushing

293900105

$6.07

35

Overmolded Grommet

293720130

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.61

50

Flat Washer 6 mm

234062410

$0.73

70

Fan Ass'y

709200534

$305.19

80

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Flat Washer 6 mm

234062410

$0.73

100

Radiator Pressure Cap

709200207

$21.61

120

Hose

709201028

$20.12

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$9.84

140

Y-Fitting

509001285

$5.10

145

Retainer

275500590

$8.24

150

Hose Engine In

709201046

$15.64

170

T-Fitting

509000510

$11.18

173

Torx Screw K50 X 16

250000720

$1.60

180

Hose Engine Out

709201045

$38.03

185

Hose

709200971

$38.03

220

Thermostat Housing

709200986

$89.52

235

Hose Coolant Tank Out

709201103

$34.30

238

Oetiker Gear Clamp

293650165

$4.96

239

Oetiker Gear Clamp

293650165

$4.96

240

Hose

709200969

$33.55

245

Heater Tubing

709200657

$13.58

250

Tie Wrap

293750108

$7.25

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$6.70

270

Norma Spring Clamp

293650166

$4.15

280

Norma Spring Clamp

293650108

$3.88

290

Norma Spring Clamp

293650109

$3.88

330

Coolant Tank

709201323

$72.36

332a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

334

Oetiker Clamp

293650042

$1.61

335

Bleeding Hose

709200606

$18.63

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

337a

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

338

Crimp Clamp, 15.3-706R

293650047

$3.03

339

Y-Fitting

293710059

$9.40

340

Tubing 16 Mm 1000Mm Long

219704408

$7.15

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

360

Spring Clamp

414554800

$0.81

370

Radiator Deflector Kit

715008385

$81.31

380

Hex. Flange Screw M6 X 20

207662044

$1.91

385

Flat Washer 6 mm

234062410

$0.73

615

T-Fitting

509001313

$14.90

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Hose Radiator Out

709201029

$9.99

650

Heater Tubing

709200657

$13.58

655

Gear Clamp

509000162

$6.70

745

Gear Clamp

509000162

$6.70

900

Tubing 35 MM 1000MM Long

219704428

$9.84

905

Tubing 35 MM 1000MM Long

219704428

$9.84

910

Tubing 35 MM 1000MM Long

219704428

$9.84

920

Tubing 35 MM 1000MM Long

219704428

$9.84

930

Tubing 35 MM 1000MM Long

219704428

$9.84

1070

Retainer

275500590

$8.24

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.39
