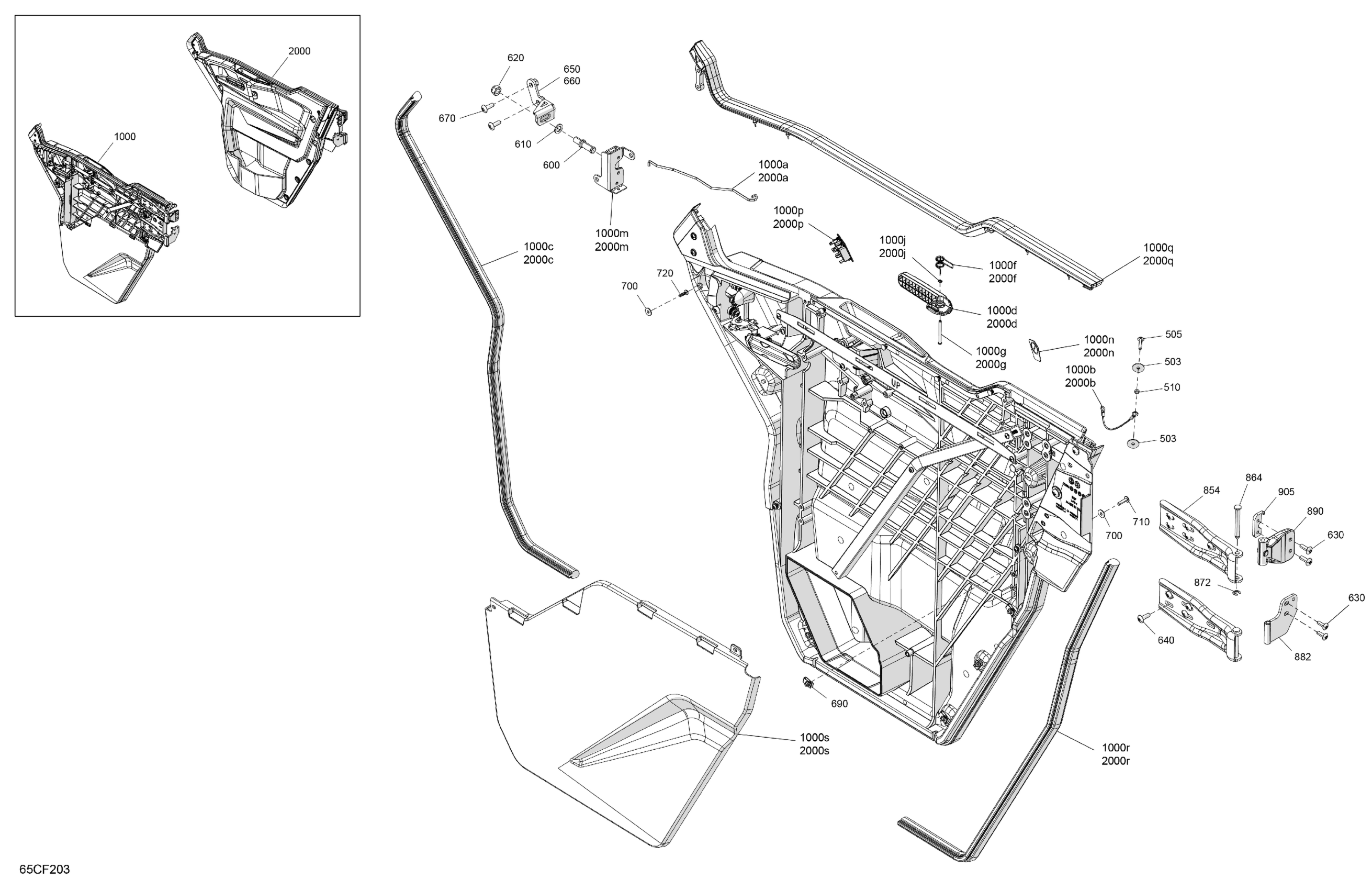

Can-Am Defender - HD11 - XMR - 8YTD - Dark Wildland Camo - 65" Width, 2026 Enclosure Cab - Doors Diagram

#

Description
Price

503

Washer M6

250200029

$2.50

505

Torx Screw M6 X 20

250000722

$1.68

510

Bushing

708300737

$5.99

600

Rod Latch

705800850

$29.99

610

Conical Spring Washer M12

250200005

$3.27

620

Elastic Stop Nut M12

232521416

$1.69

630

Torx Truss M8 X 25

250000874

$2.11

640

Torx Truss M8 X 25

250000874

$2.11

650

LH Front Striker Support

705801086

$44.99

660

RH Front Striker Support

705801097

$44.99

670

Torx Truss M8 X 25

250000874

$2.11

690

Panel Nut M6 X 1.0

250100198

$2.11

700

Stainless Steel Flat Washer

234062670

$2.11

710

Torx Truss Screw M6 X 25

250000807

$2.11

720

Torx Screw Truss Head K50X20 T20

250000760

$2.11

854

Door Hinge

705800751

$39.99

864

Hinge Pin

705800781

$0.58

872

Retaining Ring

293370125

$2.59

882

Lower Hinge

705801025

$40.99

890

Upper Door Hinge

705800802

$20.99

905

Support

705210255

$20.99

1000

LH Front Half Rigid Door | Includes 3000 to 3000s

705801296

$1,729.99

1000a

Guide Pin

705801452

$44.99

1000b

Retaining Cable

705801437

$9.99

1000c

Gasket

705801382

$239.99

1000d

Door Handle

705017152

$15.49

1000f

Handle Spring

705013062

$14.99

1000g

Handle Axle

705207440

$14.49

1000h

Guide Pin

705801393

$44.99

1000j

External Retaining Ring

705601875

$4.09

1000k

External Retaining Ring

705602261

Unavailable

1000m

LH Front Door Latch

705801464

$409.99

1000n

LH Door Pictogram Label

704909996

Unavailable

1000p

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

1000q

LH Upper Door Trim

705800913

$204.99

1000r

LH Interior Door Panel

705801384

$1,069.99

1000s

LH Lower Door Panel

705800716

$239.99

2000

RH Front Half Rigid Door | Includes 3100 to 3100s

705801297

$1,729.99

2000a

Guide Pin

705801453

$44.99

2000b

Retaining Cable

705801437

$9.99

2000c

Gasket

705801382

$239.99

2000d

Door Handle

705017152

$15.49

2000f

Handle Spring

705013062

$14.99

2000g

Handle Axle

705207440

$14.49

2000h

Guide Pin

705801393

$44.99

2000j

External Retaining Ring

705601875

$4.09

2000k

External Retaining Ring

705602261

Unavailable

2000m

RH Front Door Latch

705801465

$409.99

2000n

RH Door Pictogram Label

704909998

Unavailable

2000p

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

2000q

RH Upper Door Trim

705800914

$204.99

2000r

RH Interior Door Panel

705801386

$1,069.99

2000s

RH Lower Door Panel

705800717

$239.99
