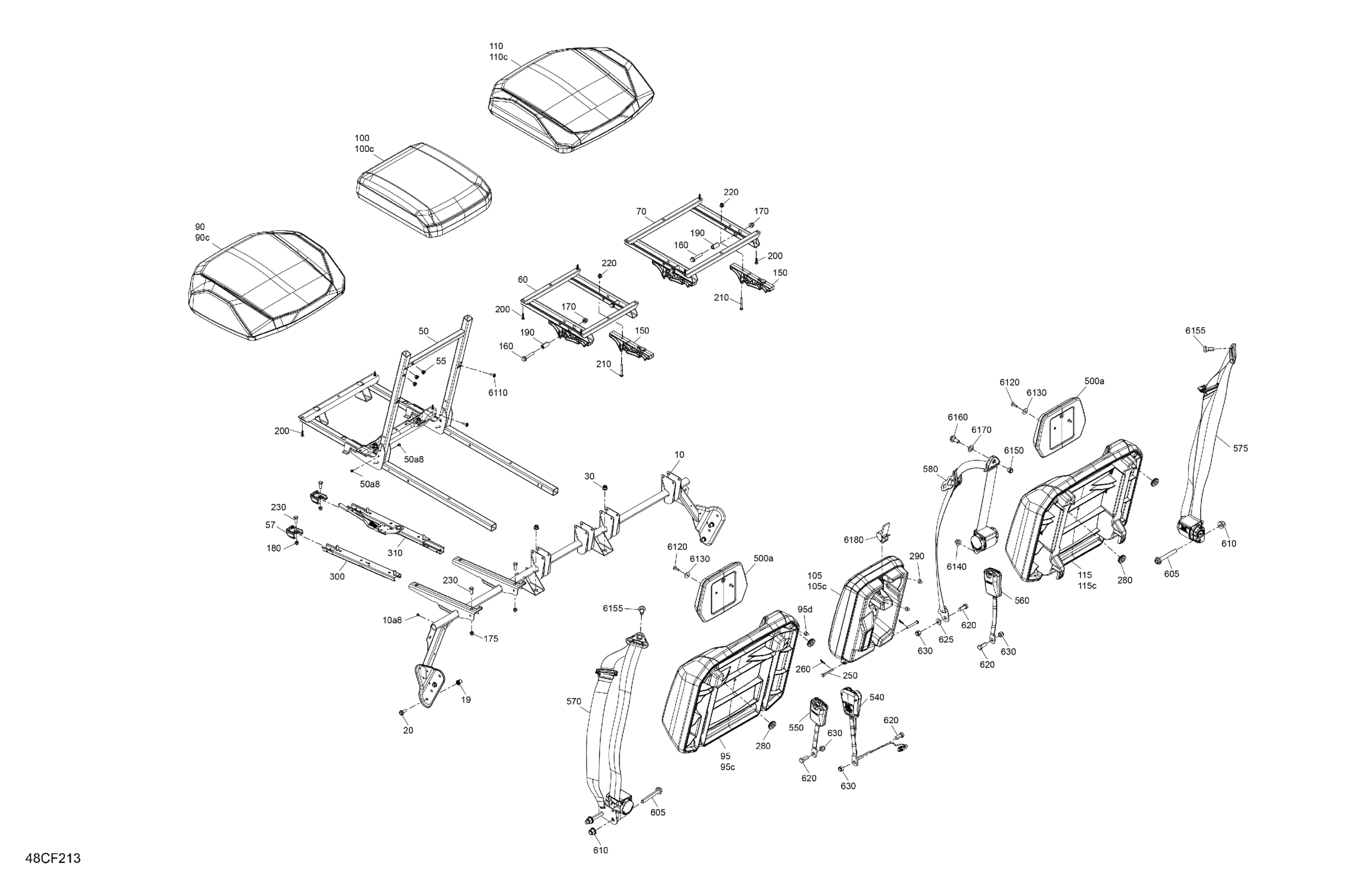

Can-Am Defender - HD11 - XMR - 8YTD - Dark Wildland Camo - 65" Width, 2026 Body - Seat Diagram

#

Description
Price

10

Seat Support | Includes 10 to 10a8

708003619

$124.58

10a8

Pop Rivet 3/16 X ,425

293150293

$0.26

19

Insert Half Hex Body M8 x 1.25

293450307

$2.03

20

Hex Screw Washer Head M8 X 20

207582054

$2.61

30

Hex. Elastic Flange Nut M8

233281416

$1.25

50

Driver Seat Base | Includes 50 to 50a8

708004350

$313.82

50a8

Pop Rivet 3/16 X ,425

293150293

$0.26

55

Insert Half Hex Body M6 x 1.0

250100199

$2.54

57

Seat Rail Cap

708004160

$36.89

60

Mid Seat Member

708002815

$193.82

70

Passenger Seat Member

708002821

$193.82

90

LH Seat Cushion Ass'y | Includes 90 to 90c

708003878

$267.66

90c

LH Cushion Cover

708003880

$92.28

95

Backrest Ass'y | Includes 95 to 95d

708004213

$332.28

95c

Backrest Cover

708004216

$92.28

95d

Rubber Bumper

293830005

$5.33

100

Central Seat Cushion Ass'y | Includes 100 to 100c

708003973

$235.35

100c

Central Cushion Cover

708003977

$92.28

105

Central Backrest Ass'y | Includes 105 to 105c

708003981

$323.05

105c

Central Backrest Cover

708003985

$92.28

110

RH Seat Cushion Ass'y | Includes 110 to 110c

708003881

$267.66

110c

RH Cushion Cover

708003883

$92.28

115

Backrest Ass'y | Includes 115 to 115c

708004217

$332.28

115c

Backrest Cover

708004216

$92.28

150

Seat Base Pivot

708002581

$9.98

160

Hex. Flange Screw M8 X 45

207684544

$3.68

170

Hex. Elastic Flange Nut M8

233281416

$1.25

175

Hex. Elastic Flange Nut M8

233281416

$1.25

180

Hex. Elastic Flange Nut M8

233281416

$1.25

190

Bushing

708003749

$3.08

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$2.02

220

Hex. Flange Elastic Nut M6

233261494

$1.26

230

Hex. Screw M8 X 20

207182044

$0.61

250

Pin

250400069

$3.08

260

Hairpin Cotter

269800431

$1.00

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

300

LH Seat Rail

708003314

$50.74

310

Rail_Seat RH

708003701

$41.51

500a

Headrest

708002853

$55.35

540

Driver Buckle

708002331

$69.20

550

Middle Buckle

708003163

$64.58

560

Passenger Buckle

708002329

$64.58

570

LH Safety Belt

708003082

$230.74

575

RH Safety Belt

708003200

$230.74

580

Central Safety Belt

708003688

$230.74

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

250001195

$2.15

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.85

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

6110

Screw PT Type K-50 X 16

250000959

$1.74

6120

Torx Screw M6 X 20

250000722

$1.34

6130

Flat Washer M6.6 X 22

250200162

$1.91

6140

Elastic Flange Nut M12

233221416

$2.33

6150

Lock Nut Nylon 7/16

250100183

$1.64

6155

Safety Belt screw

708002504

$5.52

6160

Safety Belt Screw

708000890

$3.68

6170

Position Washer

708000891

$1.15

6180

Latch

269501487

$12.97
