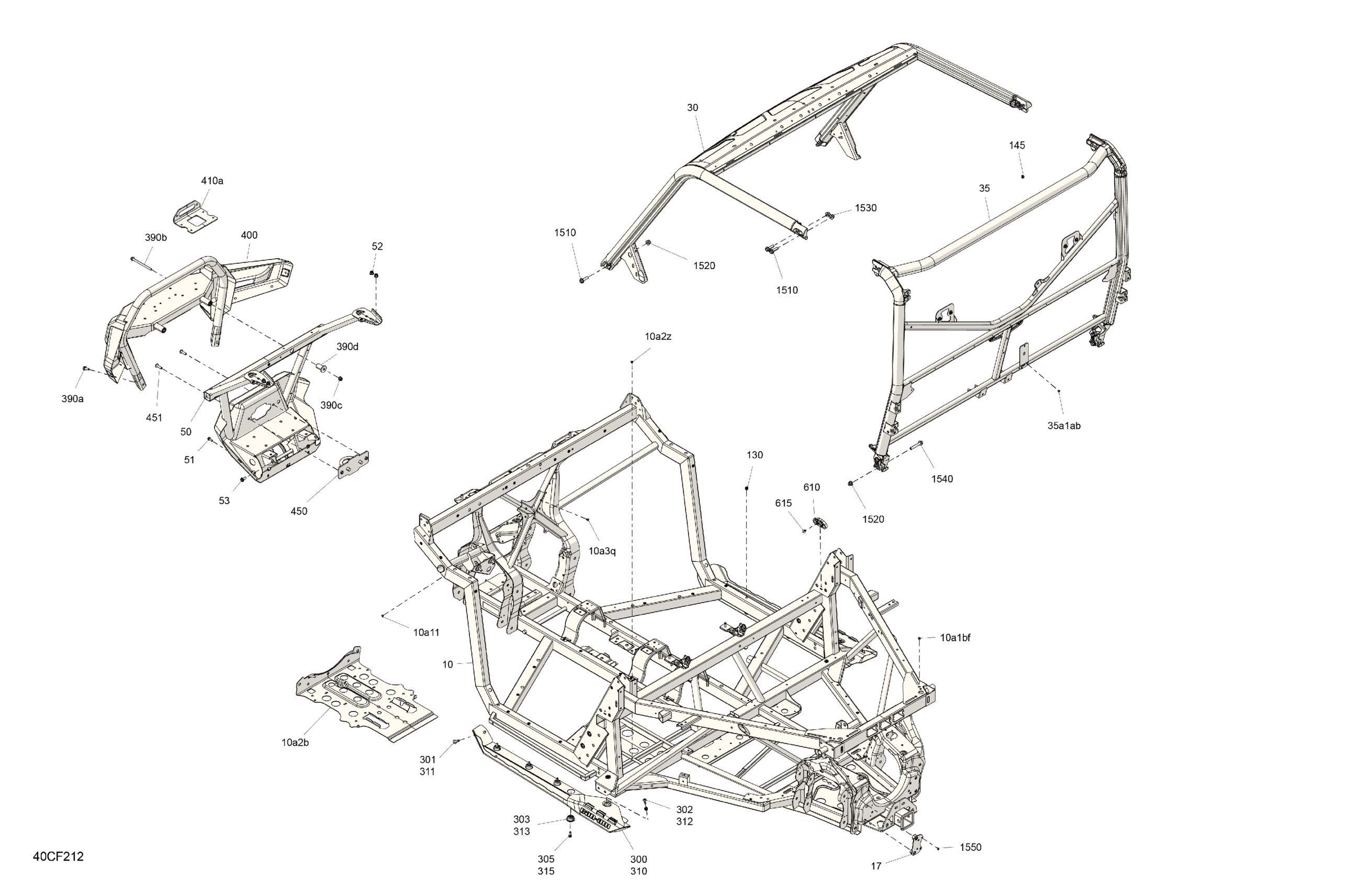

Can-Am Defender - HD11 - XMR - 8YTD - Dark Wildland Camo - 65" Width, 2026 Frame - System Diagram

#

Description
Price

10

Chassis | Includes 10 to 10a11

715011327

$4.00

10a1bf

Pop Rivet 3/16 X ,425

293150293

$0.35

10a2b

Front Skid Plate

705213496

Unavailable

10a2z

Pop Rivet 3/16 X ,425

293150293

$0.35

10a3q

Pop Rivet 3/16 X ,425

293150293

$0.35

10a11

Pop Rivet 3/16 X ,425

293150293

$0.35

17

Rear Chassis Reinforcement

705212825

$20.99

30

Front Cage Service Kit

715011116

$649.99

35

Deep Black, Rear Cage Ass'y | Includes 35 to 35a1ab

715011280

$649.99

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, Front Bumper

705211301

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

53

Hex. Flange Screw M10 X 25

207502546

$2.11

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

300

Deep Black, LH Panel Guard

705212382

$276.49

301

Hex Torx Truss M8 X30

250000745

$3.17

302

Torx Screw M6 X 20

250000722

$1.68

303

Cup

705212754

$7.89

305

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

310

Deep Black, RH Panel Guard

705212387

$276.49

311

Hex Torx Truss M8 X30

250000745

$3.17

312

Torx Screw M6 X 20

250000722

$1.68

313

Cup

705212754

$7.89

315

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

390a

Hex Flange Screw M8 X 20

207682056

$1.47

390b

Hex.Flange Screw M8 X 115

250001360

$7.99

390c

Hex. Elastic Flange Nut M8

233281416

$1.48

390d

Spacer

705207754

$14.49

400

Deep Black, Front Bumper

705212314

$499.99

410a

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Can-Am Red, Front Tow Hook

705213101

$29.99

451

Torx Truss M/S M8 X 20

250000953

$2.11

610

Spacer

705208203

$20.99

615

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1530

Flange Elastic Nut M10

233201466

$3.17

1540

Hex. Flange Screw M10 X 6

207606046

$4.12

1550

Pop Rivet 3/16 X ,425

293150293

$0.35
