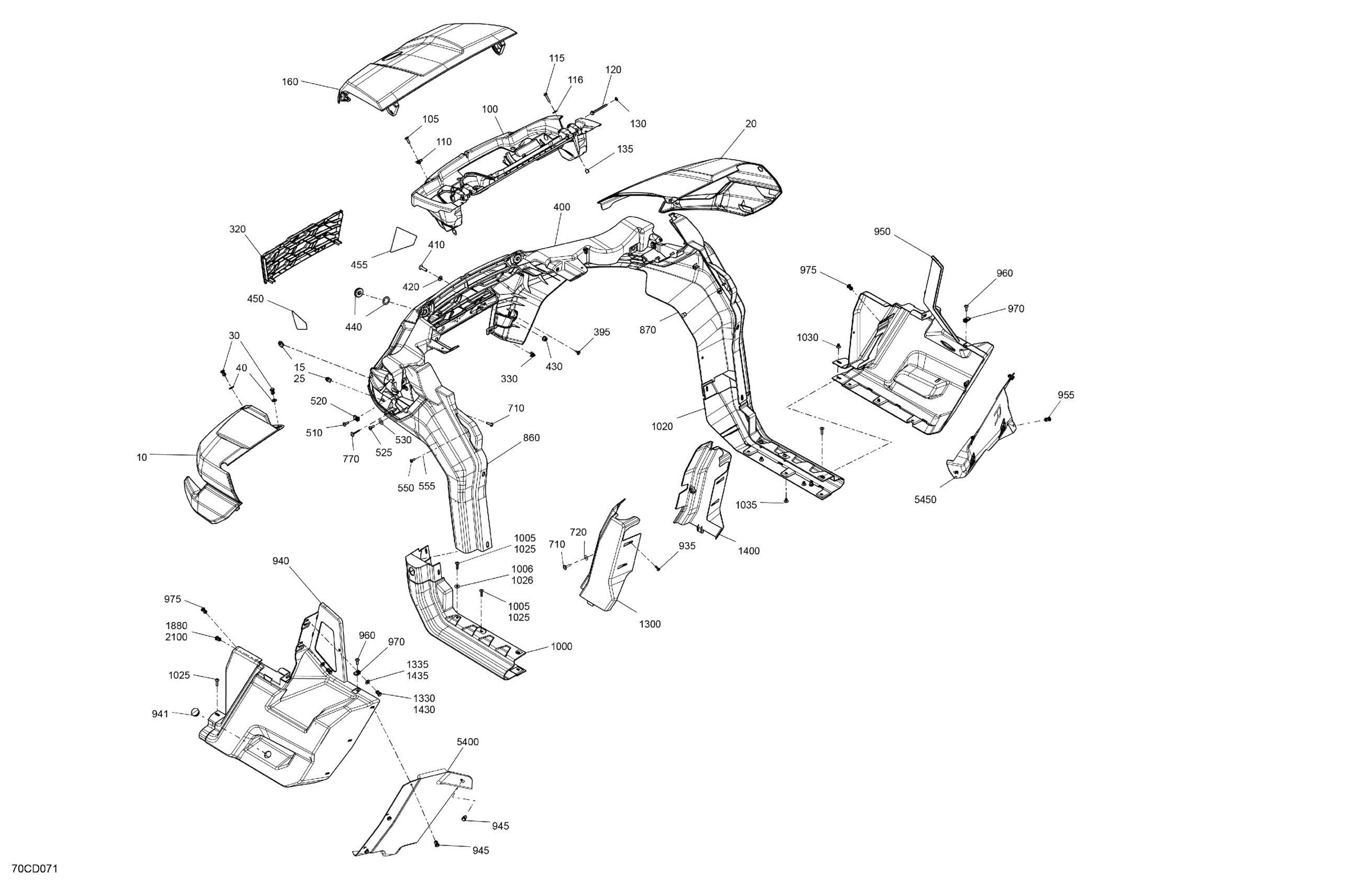

Can-Am Defender HD10 - XT - 8CRD - Asphalt Grey - 64" Width, 2024 Body - System Diagram

#

Description
Price

10

Asphalt Grey, LH Front Fender

705016418

$204.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Asphalt Grey, RH Front Fender

705016421

$204.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Multi Purpose Support

705013766

$43.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Asphalt Grey, Front Hood

705016424

$379.99

320

Grille

705013590

$26.99

330

Clip

517306478

$1.09

395

Screw M4 X 16

250000725

$3.49

400

Deep Black, Front Fascia

705013591

$229.99

410

Torx Screw M8 X 30

250000886

$2.11

420

Washer

503192494

$3.17

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Deep Black, LH Rear Body Panel

705013658

$109.99

941

Black, Nylon Cap

414916600

$4.69

945

Tuflok Plastic Rivet

293150230

$1.47

950

Deep Black, RH Rear Body Panel

705013659

$109.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

975

Tuflok Plastic Rivet

293150230

$1.47

1000

Deep Black, LH Central Panel

705019037

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

1035

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

1300

LH Rear Cage Cover Kit

715003564

$82.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1880

Tuflok Plastic Rivet

293150230

$1.47

2100

Tuflok Plastic Rivet

293150230

$1.47

5400

LH Rear Deflector

705016336

$51.99

5450

RH Rear Deflector

705016337

$51.99

710

Torx Truss Screw M6 X 25

250000807

$2.11

720

Stainless Steel Flat Washer

234062670

$2.11

770

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90
