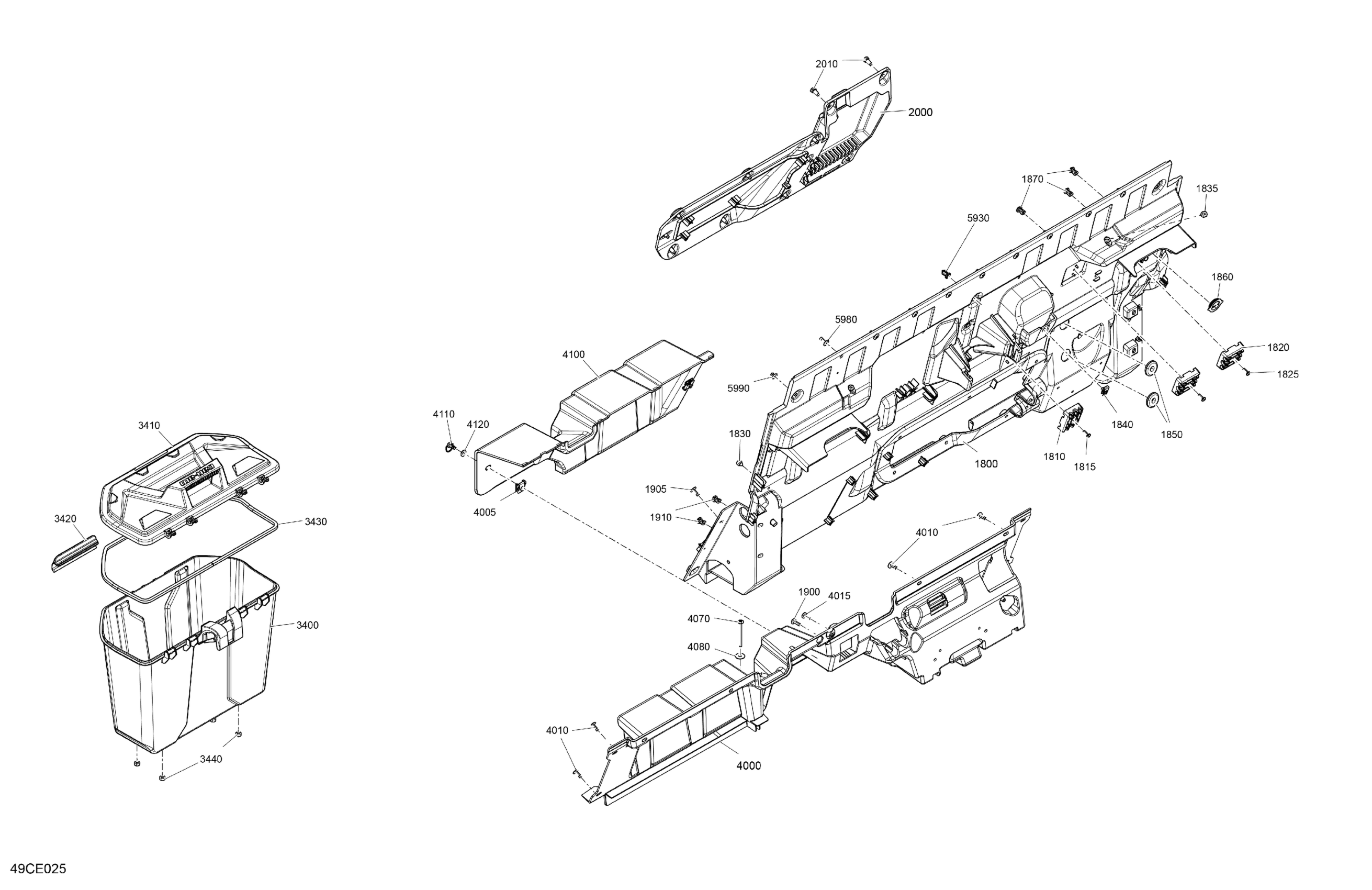

Can-Am Defender - HD10 - XMR - 8YSG - Hyper Silver - 67" Width - 2025 Cab Interior - Back Wall Diagram

Description

Price

1800

Rear Upper Cab Panel

707901101

$396.89

1810

Hose Support

707900788

$0.86

1815

Torx Screw K50 X 16

250000720

$1.39

1820

Hose Support

707900788

$0.86

1825

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1835

Rubber Bumper

293830005

$5.33

1840

Panel Nut M6 X 1.0

250100198

$1.73

1850

Grommet

293720119

$4.98

1860

Plug

293000125

$1.37

1870

Tuflok Plastic Rivet

293150230

$1.21

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Rear Access Cover

707900742

$78.43

2010

Torx Screw M6 X 20

250000712

$1.74

3400

Storage Box

715003314

$109.24

3410

Storage Box

715003314

$109.24

3420

Clip | Outlander Max

269501945

$15.19

3430

Neoprene Seal

293250453

$14.92

3440

Rubber Bumper

293830005

$5.33

4000

Lower Rear Cab Panel

707901242

$207.66

4005

Quarter Turn Nut

705002651

$3.84

4010

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$87.66

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$4.02

5930

Tuflok Plastic Rivet

293150230

$1.21

5980

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

5990

Black, Pop Rivet 3/16 X ,425

293150291

$0.54
