06- Frame - System

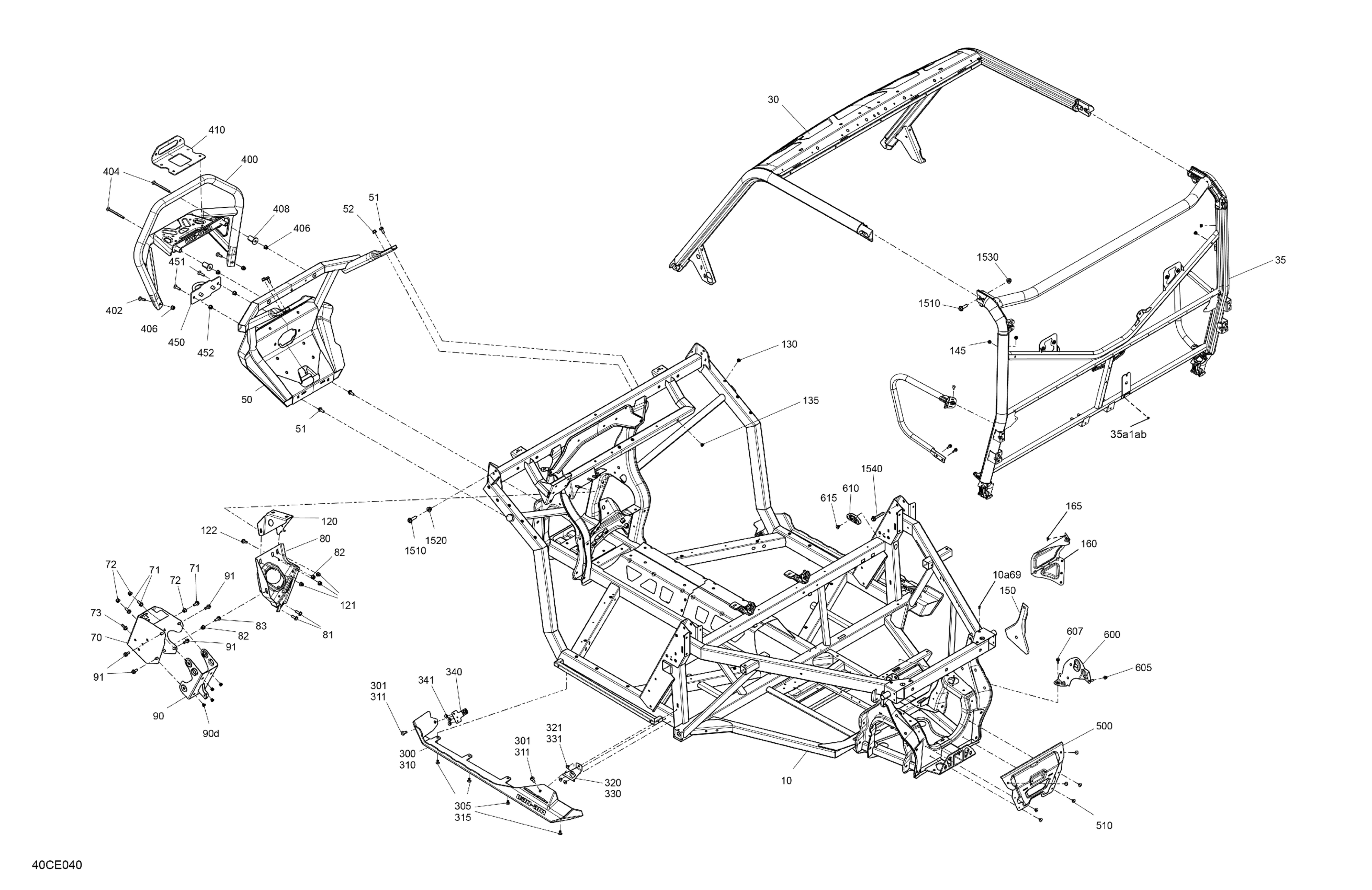

Can-Am North America - Defender - HD10 - XMR - 8YSG - Hyper Silver - 67" Width - 2025 06- Frame - System Diagram
#
10
Deep Black, Chassis Kit
715009069
Unavailable
10a69
Pop Rivet 3/16 X ,425
293150293
Unavailable
30
Hyper Silver, Front Cage Service Kit
715009735
Unavailable
35
Hyper Silver, Rear Cage Service Kit
715010337
Unavailable
35a1ab
Pop Rivet 3/16 X ,425
293150293
Unavailable
50
Deep Black, Front Bumper
705207588
Unavailable
51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
52
Hex. Elastic Flange Nut M8
233281416
Unavailable
70
Module Support
705212644
Unavailable
71
Hex. Flange Screw M8 X 20
207682044
Unavailable
72
Hex. Elastic Flange Nut M8
233281416
Unavailable
73
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
80
Power Steering Support
705208741
Unavailable
81
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
82
Hex. Elastic Flange Nut M8
233281416
Unavailable
83
Hex. Flange Screw M8 X 20
207682044
Unavailable
90
Steering Column Support | Includes 90 to 90d
705209190
Unavailable
90d
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
91
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
120
Module Support
705211549
Unavailable
121
Hex. Elastic Flange Nut M8
233281416
Unavailable
122
Hex. Flange Screw M8 X 20
207682044
Unavailable
130
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
135
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
145
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
150
Heat Shield
705014849
Unavailable
160
Heat Shield
707002709
Unavailable
165
Black, Pop Rivet 3/16 X ,425
293150291
Unavailable
300
Deep Black, LH Guard Panel
705208686
Unavailable
301
Torx Truss M8 X 25
250000874
Unavailable
305
Black, Ornit Rivet 3/16 X ,675
293150308
Unavailable
310
Deep Black, RH Guard Panel
705208687
Unavailable
311
Torx Truss M8 X 25
250000874
Unavailable
315
Black, Ornit Rivet 3/16 X ,675
293150308
Unavailable
320
LH Guard Support
705211575
Unavailable
321
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
330
RH Guard Support
705211576
Unavailable
331
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
340
Front Guard Support
705208661
Unavailable
341
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
400
Legion Red, Front Bumper
705211529
Unavailable
402
Torx Screw M8 X 30
250000886
Unavailable
404
Torx Truss M/S M8 x X 100
250001106
Unavailable
406
Hex. Elastic Flange Nut M8
233281416
Unavailable
408
Spacer
705207754
Unavailable
410
Deepo Black, Winch Support | Includes 53a to 53a
705211620
Unavailable
450
Can-Am Red, Front Tow Hook
705211623
Unavailable
451
Torx Screw M8 X 30
250000886
Unavailable
452
Hex. Elastic Flange Nut M8
233281416
Unavailable
500
Rear Chassis Reinforcement
705207753
Unavailable
510
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
600
Voltage Regulator Support
710009484
Unavailable
605
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
607
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
610
Spacer
705208203
Unavailable
615
Black, Pop Rivet 3/16 X ,550
293150292
Unavailable
1510
Hex. Flange Screw M10 X 35
250000855
Unavailable
1520
Hex. Flange Elastic Nut M10
233201436
Unavailable
1530
Flange Elastic Nut M10
233201466
Unavailable
1540
Hex. Flange Screw M10 X 6
207606046
Unavailable
