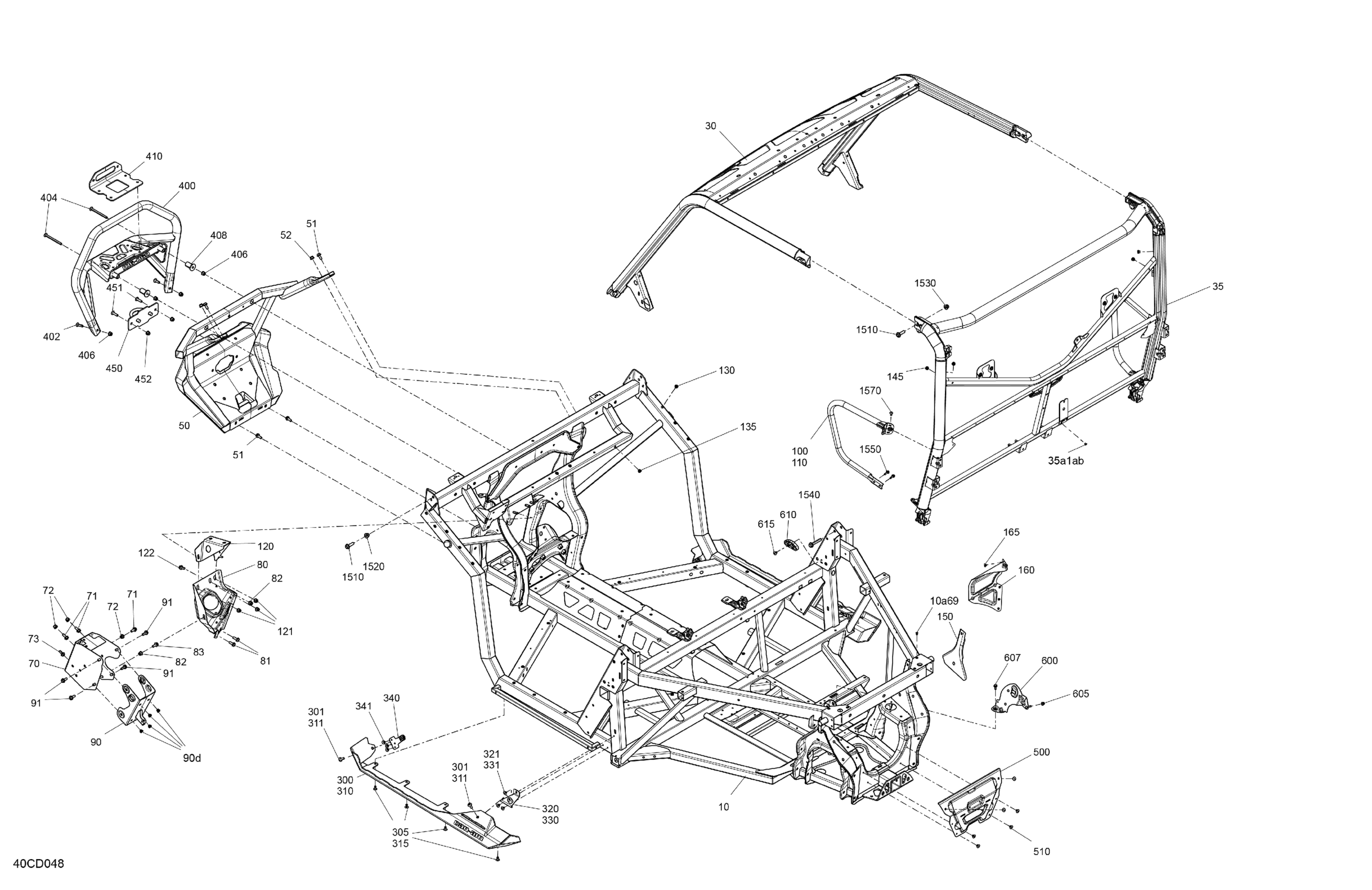

Can-Am Defender HD10 - XMR - 8YRC - Wildland Camo - 67" Width, 2024 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009069

$3,159.99

10a69

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Deep Black, Front Cage Service Kit

715008354

$649.99

35

Rear Cage Service Kit | Includes 35 to 35a1ab

715009063

$649.99

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705212644

$59.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90d

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Guard

705210921

$43.49

110

Deep Black, RH Guard

705210930

$44.49

120

Module Support

705211549

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002709

$61.99

165

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

300

Deep Black, LH Guard Panel

705208686

$276.49

301

Torx Truss M8 X 25

250000874

$2.11

305

Pop Rivet 3/16”

293150108

$1.19

310

Deep Black, RH Guard Panel

705208687

$276.49

311

Torx Truss M8 X 25

250000874

$2.11

315

Pop Rivet 3/16”

293150108

$1.19

320

LH Guard Support

705211575

$45.99

321

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

330

RH Guard Support

705211576

$44.99

331

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

340

Front Guard Support

705208661

$5.39

341

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

400

Deep Black, Front Bumper

715006143

$350.99

402

Torx Screw M8 X 30

250000886

$2.11

404

Torx Truss M/S M8 x X 100

250001106

$7.97

406

Hex. Elastic Flange Nut M8

233281416

$1.48

408

Spacer

705207754

$14.49

410

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

450

Can-Am Red, Front Tow Hook

705211623

$33.99

451

Torx Screw M8 X 30

250000886

$2.11

452

Hex. Elastic Flange Nut M8

233281416

$1.48

500

Rear Chassis Reinforcement

705207753

$33.99

510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

600

Voltage Regulator Support

710009484

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1530

Flange Elastic Nut M10

233201466

$3.17

1540

Hex. Flange Screw M10 X 6

207606046

$4.12

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1570

Torx Truss M6X14

250000789

$5.39
