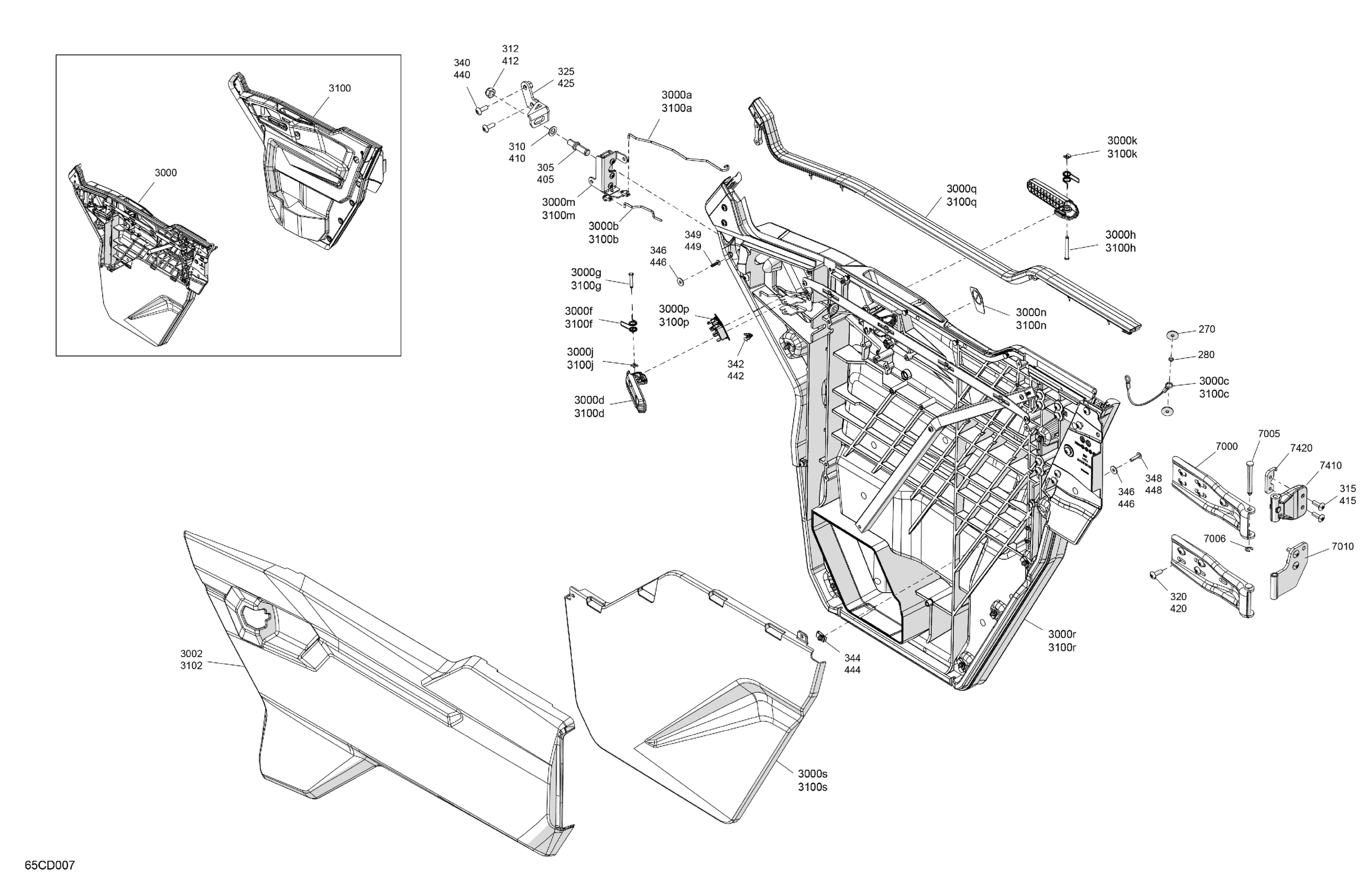

Can-Am Defender HD10 - XMR - 8YRA - Hyper Silver - 67" Width , 2024 Enclosure Cab - Doors Diagram

#

Description
Price

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

305

Rod Latch

705800850

$29.99

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

315

Torx Truss M8 X 25

250000874

$2.11

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

340

Torx Truss M8 X 25

250000874

$2.11

342

Clip

517306478

$1.09

344

Panel Nut M6 X 1.0

250100198

$2.11

346

Stainless Steel Flat Washer

234062670

$2.11

348

Torx Truss Screw M6 X 25

250000807

$2.11

349

Torx Screw Truss Head K50X20 T20

250000760

$2.11

405

Rod Latch

705800850

$29.99

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

415

Torx Truss M8 X 25

250000874

$2.11

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705801097

$44.99

440

Torx Truss M8 X 25

250000874

$2.11

442

Clip

517306478

$1.09

444

Panel Nut M6 X 1.0

250100198

$2.11

446

Stainless Steel Flat Washer

234062670

$2.11

448

Torx Truss Screw M6 X 25

250000807

$2.11

449

Torx Screw Truss Head K50X20 T20

250000760

$2.11

3000

LH Front Half Rigid Door | Includes 3000 to 3000s

705801296

$1,729.99

3000a

Guide Pin

705801452

$44.99

3000b

Guide Pin

705801358

$44.99

3000c

Retaining Cable

705801437

$9.99

3000d

Door Handle

705017152

$15.49

3000f

Handle Spring

705013062

$14.99

3000g

Handle Axle

705207440

$14.49

3000h

Guide Pin

705801393

$44.99

3000j

External Retaining Ring

705601875

$4.09

3000k

External Retaining Ring

705602261

Unavailable

3000m

LH Front Door Latch

705801464

$409.99

3000n

LH Door Pictogram Label

704909996

Unavailable

3000p

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

3000q

LH Upper Door Trim

705800913

$204.99

3000r

LH Interior Door Panel

705801384

$1,069.99

3000s

LH Lower Door Panel

705800716

$239.99

3002

Hyper Silver, LH Upper Door Panel

705801408

$274.99

3100

RH Front Half Rigid Door | Includes 3100 to 3100s

705801297

$1,729.99

3100a

Guide Pin

705801453

$44.99

3100b

Guide Pin

705801358

$44.99

3100c

Retaining Cable

705801437

$9.99

3100d

Door Handle

705017152

$15.49

3100f

Handle Spring

705013062

$14.99

3100g

Handle Axle

705207440

$14.49

3100h

Guide Pin

705801393

$44.99

3100j

External Retaining Ring

705601875

$4.09

3100k

External Retaining Ring

705602261

Unavailable

3100m

RH Front Door Latch

705801465

$409.99

3100n

RH Door Pictogram Label

704909998

Unavailable

3100p

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

3100q

RH Upper Door Trim

705800914

$204.99

3100r

RH Interior Door Panel

705801386

$1,069.99

3100s

RH Lower Door Panel

705800717

$239.99

3102

Hyper Silver, RH Upper Door Panel

705801409

$274.99

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7410

Upper Door Hinge

705800802

$20.99

7420

Support

705210255

$20.99
