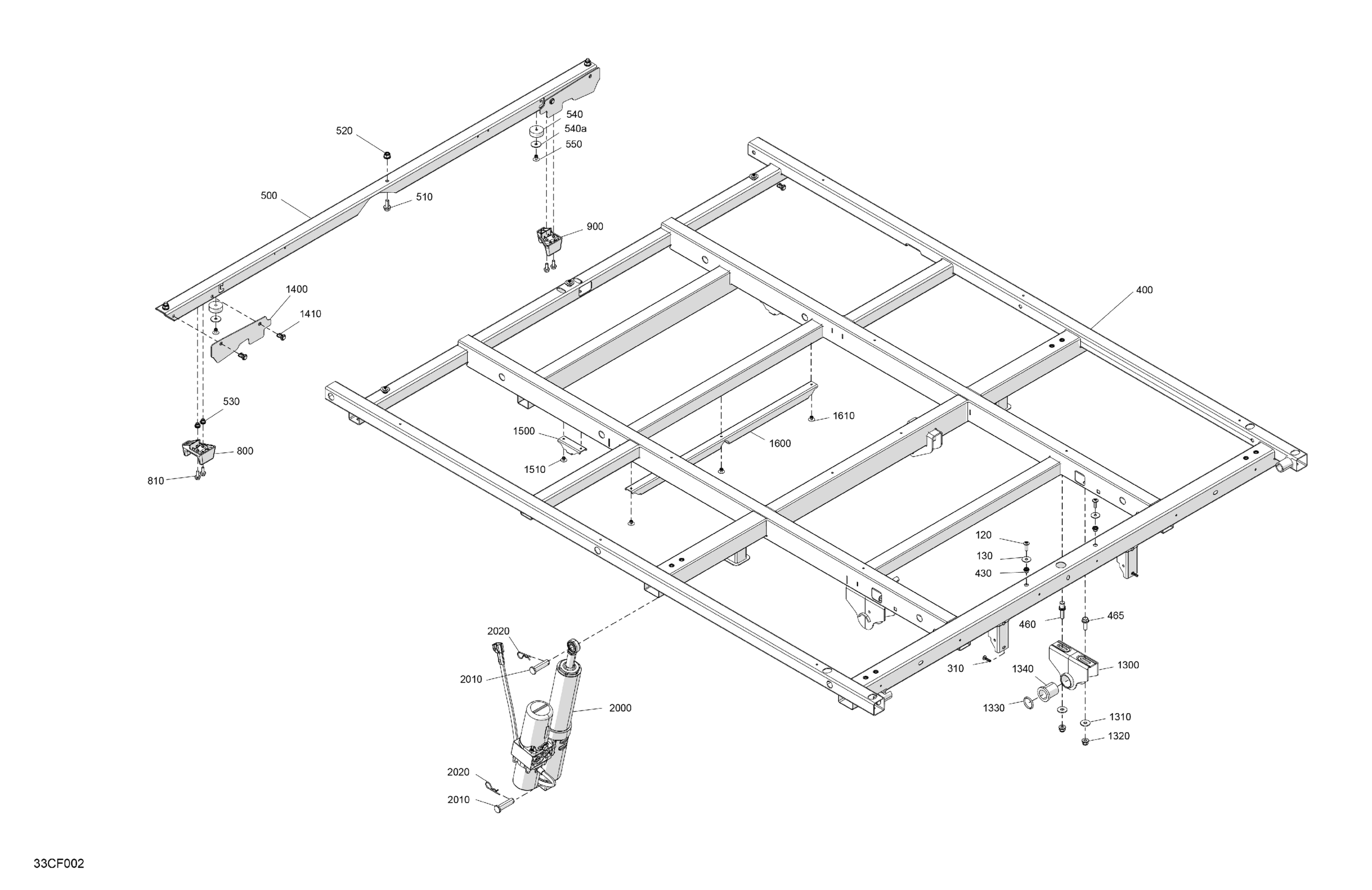

Can-Am Defender 6X6 - HD10 - XT - 9RTA - Stealth Black - 64" Width, 2026 Body - Cargo - Lower Section Diagram

Description

Price

120

Torx Screw M6 X 20

250000722

$1.34

130

Flat Washer M6.6 X 22

250200162

$1.91

310

Torx Screw Truss Head K50X20 T20

250000760

$1.74

400

Open Carrier Frame Kit

715008399

$524.58

430

Insert Half Hex Body M6 x 1.0

250100199

$2.54

460

Protruding Stud M8 X 28

250300645

$3.39

465

Hex. Flange Screw M8 X 25

207682544

$0.90

500

Front Square Tube

708303709

$27.66

510

Hex. Flange Screw M8 X 20

207682046

$1.82

520

Hex. Elastic Flange Nut M8

233281416

$1.25

530

Insert Half Hex Body M6 x 1.0

250100199

$2.54

540

Rubber Stopper | Includes 830 to 830a

708303134

$2.31

540a

Washer

224060251

$0.57

550

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

800

LH Stopper

708304411

$3.98

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

900

RH Stopper

708304412

$3.98

1300

Female Hinge

708304581

$36.89

1310

Flat Washer 8 mm

234082410

$1.11

1320

Hex. Flange Elastic Nut M8

233281414

$1.14

1330

O-Ring

293300131

$5.52

1340

Hinge Bushing

708303361

$10.98

1400

Deflector

708305100

$10.00

1410

Tuflok Plastic Rivet

293150230

$1.21

1500

Heat Shield Support

708303418

$4.62

1510

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1600

Front Square Tube

708303292

$11.54

1610

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

2000

Open Carrier Actuator Kit 6X6

715007204

$1,349.99

2010

Pin Clevis

250400096

$6.45

2020

Hair Pin

414575600

$1.51
