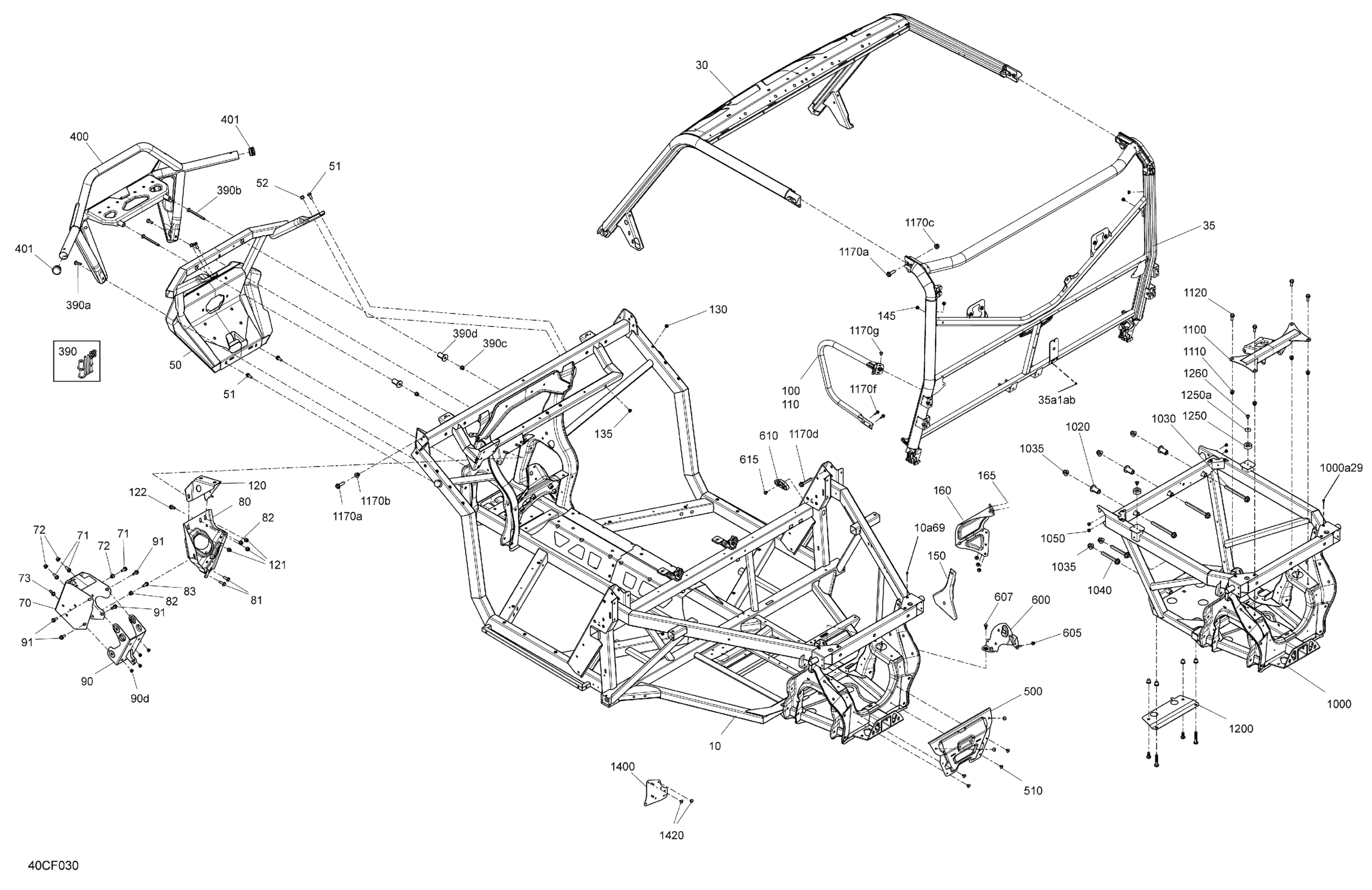

Can-Am Defender 6X6 - HD10 - XT - 9RTA - Stealth Black - 64" Width, 2026 Frame - System Diagram

#

Description
Price

10

Deep Black, Rear Chassis Kit | Includes 10 to 10a69

715011182

Unavailable

10a69

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Front Cage Service Kit

715011116

$649.99

35

Deep Black, Rear Cage | Includes 35 to 35a1ab

705212629

Unavailable

35a1ab

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705212644

$59.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90d

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

100

Deep Black, LH Guard

705210921

$43.49

110

Deep Black, RH Guard

705210930

$44.49

120

Module Support

705211549

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002709

$61.99

165

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

390

Bumper Ass'y Kit | Includes 390 to 390d

708200976

$45.99

390a

Torx Screw M8 X 30

250000886

$2.11

390b

Torx Truss M/S M8 x X 100

250001106

$7.97

390c

Hex. Flange Elastic Nut M8

233281414

$1.47

390d

Spacer

705207754

$14.49

400

Deep Black, Front Bumper

715005754

$351.49

401

Cap

705202455

$5.69

500

Rear Chassis Reinforcement

705207753

$33.99

510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

600

Voltage Regulator Support

710009484

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1000

Rear Chassis Extension | Includes 1000 to 1000a29

705210679

$889.99

1000a29

Pop Rivet 3/16 X ,425

293150293

$0.35

1020

Spacer

705207755

$15.99

1030

Screw Flange M12 X 135

250000892

$6.49

1035

Elastic Flange Nut M12

250001195

$2.64

1040

Hex. Flange Screw M12 X 95

250000876

$6.77

1050

Hemlock Rivet, 6.4 mm

293150174

$7.86

1100

Upper Rear Differential Support

705210673

$50.99

1110

Hex. Elastic Flange Nut M8

233281416

$1.48

1120

Hex. Flange Screw M8 X 25

207682544

$1.35

1200

Rear Skid Plate

705208867

$29.49

1250

Rubber Stopper | Includes 830 to 830a

708303134

$2.39

1250a

Washer

224060251

$0.58

1260

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1400

Rear Solenoid Support

705018380

$19.99

1420

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

1170a

Hex. Flange Screw M10 X 35

250000855

$1.89

1170b

Hex. Flange Elastic Nut M10

233201436

$2.11

1170c

Flange Elastic Nut M10

233201466

$3.17

1170d

Hex. Flange Screw M10 X 6

207606046

$4.12

1170f

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1170g

Torx Truss M6X14

250000789

$5.39
