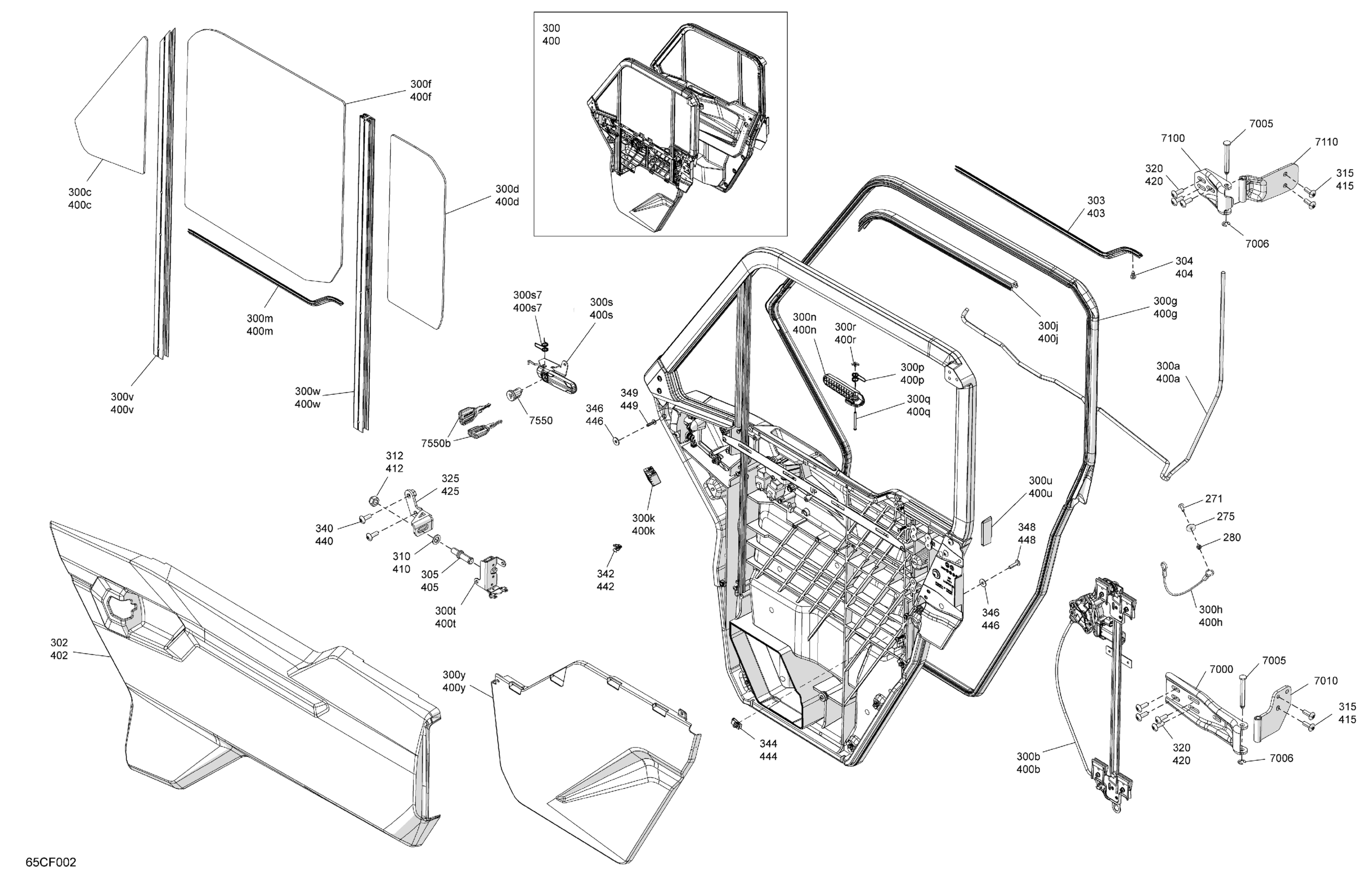

Can-Am Defender 6X6 - HD10 - LTD CAB - 9STA - Dusty Navy Satin - 65" Width, 2026 Enclosure Cab - Doors Diagram

#

Description
Price

271

Washer M6

250200029

$2.50

275

Torx Screw M6 X 20

250000722

$1.68

280

Bushing

708300737

$5.99

300

LH Front Rigid Door Ass'y | Includes 1000 to 1000y

705801606

$1.00

300a

LH Door Wiring Harness

705800881

$239.99

300b

LH Front Window Actuator

705801143

$829.99

300c

Tinted, LH Front Door Window

705801323

$369.99

300d

Tinted, LH Rear Door Window

705801324

$369.99

300f

Tinted, LH Front Sliding Cab Window

705801325

$489.99

300g

LH Gasket

705801311

$63.99

300h

Retaining Cable

705800896

$10.49

300j

Gasket

705801312

$109.99

300k

Switch

710008375

$83.99

300m

Gasket

705800867

$109.99

300n

Door Handle

705017152

$15.49

300p

Handle Spring

705013062

$14.99

300q

Handle Axle

705207440

$14.49

300r

External Retaining Ring

705601875

$4.09

300s

LH Front Door Handle Ass'y | Includes 300t to 300t7

705018945

$184.99

300s7

Handle Spring

705013062

$14.99

300t

LH Latch

705800872

$409.99

300u

Trim

705800992

$99.99

300v

Front Window Guide Extrusion

705800722

$224.99

300w

Rear Window Guide Extrusion

705800723

$224.99

300y

LH Lower Door Panel

705800716

$239.99

302

Dusty Navy Satin, LH Upper Door Panel | Includes 302 to 302a

705801565

$274.99

303

Gasket

705800963

$34.99

304

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

305

Rod Latch

705800850

$29.99

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

315

Torx Truss M8 X 25

250000874

$2.11

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

340

Torx Truss M8 X 25

250000874

$2.11

342

Clip

517306478

$1.09

344

Panel Nut M6 X 1.0

250100198

$2.11

346

Stainless Steel Flat Washer

234062670

$2.11

348

Torx Truss Screw M6 X 25

250000807

$2.11

349

Torx Screw Truss Head K50X20 T20

250000760

$2.11

400

RH Front Rigid Door Ass'y | Includes 2000 to 2000y

705801607

$1.00

400a

RH Door Wiring Harness

705800882

$254.99

400b

RH Front Window Actuator

705801144

$829.99

400c

Tinted, RH Front Door Window

705801326

$369.99

400d

Tinted, RH Rear Door Window

705801327

$369.99

400f

Tinted, RH Front Sliding Cab Window

705801328

$489.99

400g

RH Gasket

705801313

$63.99

400h

Retaining Cable

705800896

$10.49

400j

Gasket

705801312

$109.99

400k

Switch

710008375

$83.99

400m

Gasket

705800867

$109.99

400n

Door Handle

705017152

$15.49

400p

Handle Spring

705013062

$14.99

400q

Handle Axle

705207440

$14.49

400r

External Retaining Ring

705601875

$4.09

400s

RH Front Door Handle Ass'y | Includes 400t to 400t7

705018951

$184.99

400s7

Handle Spring

705013062

$14.99

400t

RH Latch

705800873

$409.99

400u

Trim

705800992

$99.99

400v

Front Window Guide Extrusion

705800722

$224.99

400w

Rear Window Guide Extrusion

705800723

$224.99

400y

RH Lower Door Panel

705800717

$239.99

402

Dusty Navy Satin, RH Upper Door Panel | Includes 402 to 402a

705801566

$274.99

403

Gasket

705800963

$34.99

404

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

405

Rod Latch

705800850

$29.99

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

415

Torx Truss M8 X 25

250000874

$2.11

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705801097

$44.99

440

Torx Truss M8 X 25

250000874

$2.11

442

Clip

517306478

$1.09

444

Panel Nut M6 X 1.0

250100198

$2.11

446

Stainless Steel Flat Washer

234062670

$2.11

448

Torx Truss Screw M6 X 25

250000807

$2.11

449

Torx Screw Truss Head K50X20 T20

250000760

$2.11

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7100

Upper Door Hinge

705800752

$43.99

7110

Upper Door Hinge

705800755

$31.99

7550

Lock Barrel Ass'y | Includes 7550 to 7550b

705801380

$109.99

7550b

Key

710010366

Unavailable
